Poynting A-PUCK-0012-V2-01 2-in-1 Wi-Fi MIMO Antenna

Poynting A-PUCK-0012-V2-01 (PUCK-12) 2-in-1 Wi-Fi MIMO Antenna

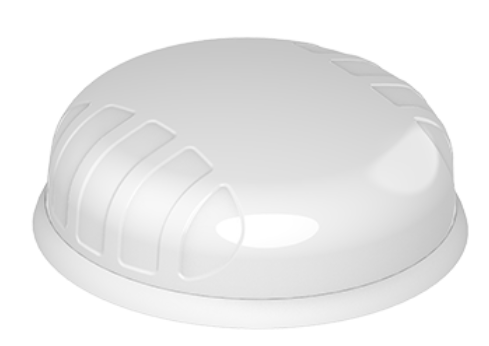

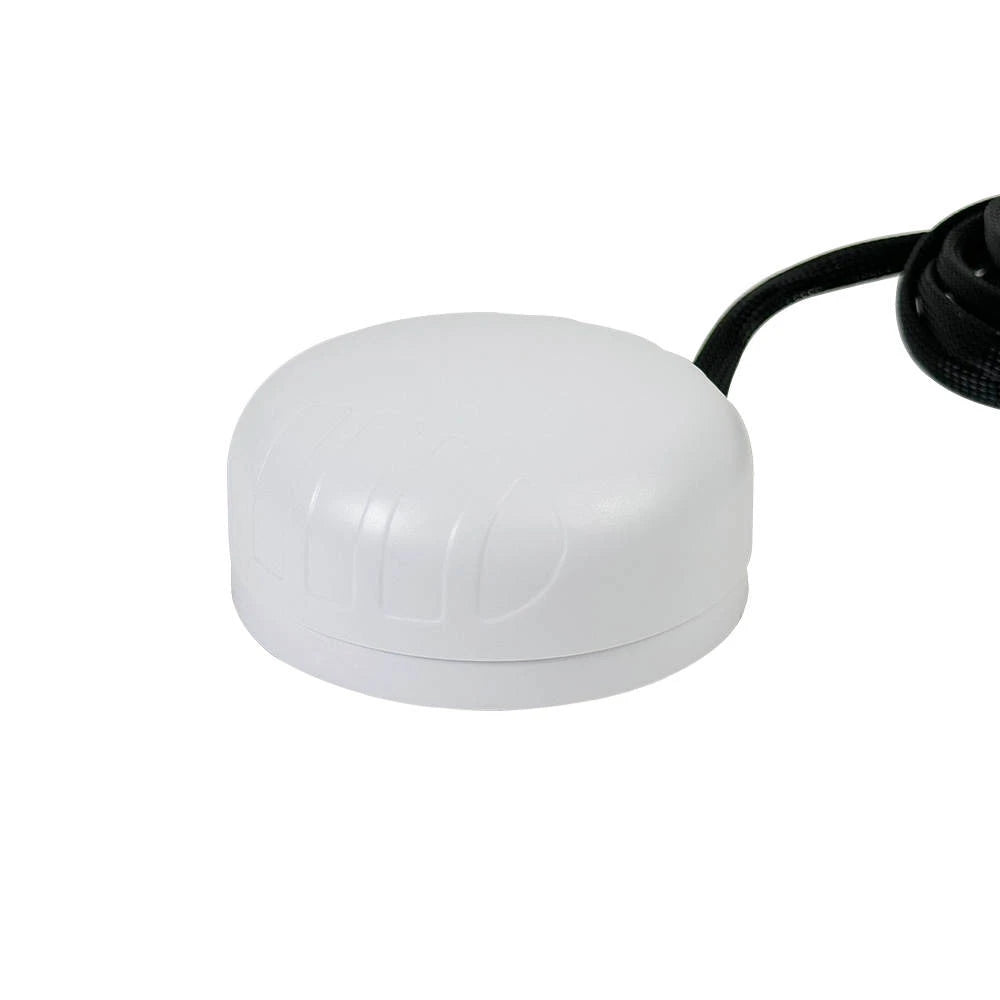

The Poynting A-PUCK-0012-V2-01 (commonly referred to as the PUCK-12) is a low-profile, ultra-rugged 2-in-1 Wi-Fi 2 * 2 MIMO antenna designed for marine, transportation, and IoT/M2M applications. Operating across both the 2.4 GHz and 5.0-7.2 GHz frequency bands, it provides future-proof coverage for dual-band Wi-Fi as well as extended Wi-Fi 6E and Wi-Fi 7 spectrums with a peak gain of up to 7.5 dBi.

Featuring an extremely durable, vandal-resistant IP69K housing, the PUCK-12 incorporates ground-plane independence—delivering consistent radiation performance whether mounted on metal, fiberglass, wood, or plastic surfaces. The antenna comes pre-fitted with dual 2-m (6.5 ft) low-loss RTK-031 cables terminated with standard SMA male connectors, making it an ideal choice for vessel deckheads, roof mounts, and compact marine electronics enclosures.

Key Features

• Dual-Band Wi-Fi 6E/7 Ready: Covers legacy 2.4 GHz band and extended 5.0 to 7.2 GHz bands for high-throughput 2 * 2 MIMO performance.

• Ground-Plane Independent: Maintains optimal radiation pattern and VSWR regardless of the mounting surface material (metal, GRP, or timber).

• Extreme Weather & Impact Resistance: Rated to IP69K (high-pressure washdown) and IK10 vandal-proof impact resistance for harsh marine exterior environments.

• Versatile Mounting Kit Included: Includes hardware for spigot/pass-through mounting, surface/adhesive mounting, magnetic mounting, and bracket wall/pole mounting.

• Fire-Retardant Marine Construction: Halogen-free, UV-stable PC/ABS radome resists long-term solar degradation and marine chemical exposure.

Specifications
