ProMariner 22074 ProSafe FS60 Galvanic Isolator - ABYC A - 28 Compliant* -

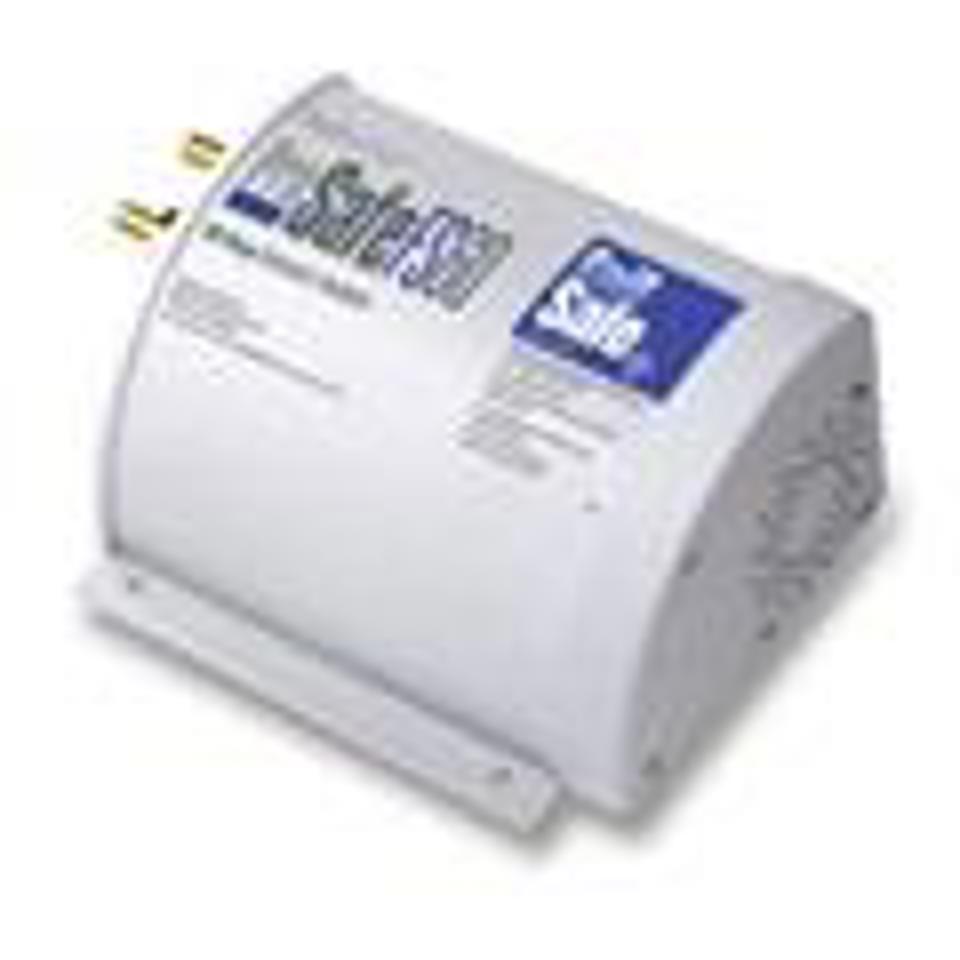

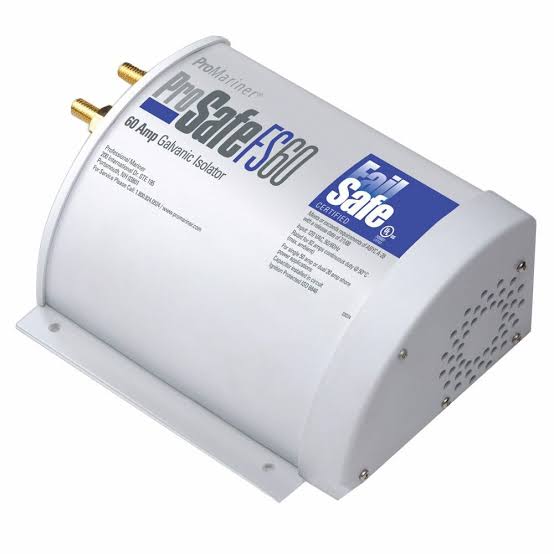

ProMariner ProSafe FailSafe 60 Amp Galvanic Isolator (22074)

The ProMariner 22074 (ProSafe FS60) is a solid-state, high-capacity 60 Amp FailSafe Galvanic Isolator engineered to interrupt low-voltage DC galvanic stray currents while maintaining AC ground continuity between shore power pedestals and onboard bonding systems. By blocking DC corrosion currents, it stops premature anode (zinc/aluminum) loss, outdrive pitting, and underwater metal degradation caused by neighboring vessels at dockside power connections.

Built using flat-pack semiconductor technology, the FS60 meets rigorous ABYC A-28 and UL FailSafe standards. In the event of a severe electrical short circuit or lightning strike, the internal design safely conducts up to 5,000A of inrush current without severing the AC ground path. This eliminates the need for expensive, dedicated status monitors required by older non-failsafe isolators. The unit features passive heatsink fins that actively cool the internal components under sustained AC fault conditions.

Key Features

• ABYC A-28 & UL Certified FailSafe: Maintains AC safety ground wire integrity under continuous operation or internal semiconductor failure.

• No Remote Monitor Required: Certified FailSafe architecture bypasses ABYC requirements for onboard remote monitoring panels.

• High Inrush Current Capacity: Flat-pack semiconductor design safely conducts up to 5,000 A of short-circuit current.

• Gold-Plated Stud Connections: High-conductivity gold-plated brass studs prevent corrosion buildup on critical green-wire ground connections.

• Ignition Protected (ISO 8846): Safe for direct mounting in engine compartments and enclosed machinery spaces.
