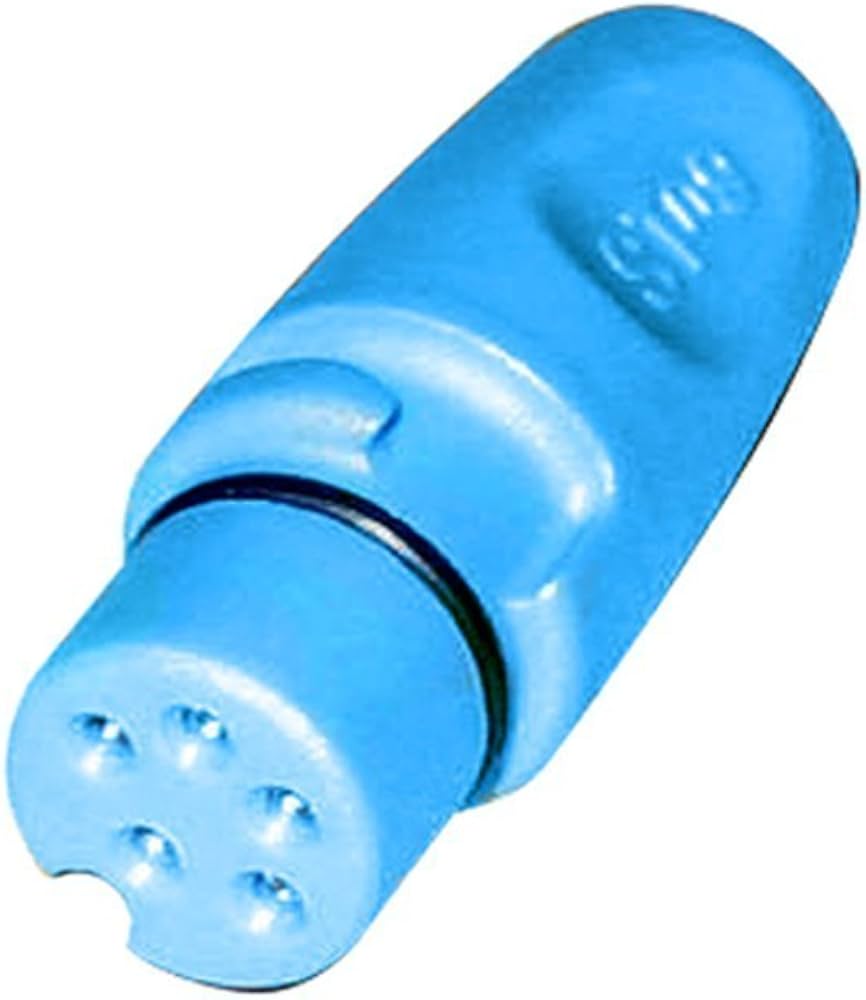

Raymarine A06031 SeaTalkng Backbone Terminator

Raymarine A06031 SeaTalkng Backbone Terminator

The Raymarine A06031 is a specialized 120 Ω network backbone terminator designed specifically for Raymarine SeaTalkng (Next Generation) CAN-bus data networks. Designed to be inserted into the two open blue backbone ends of a SeaTalkng trunk line—typically at the outer ends of a 5-Way Connector or T-Piece—the terminator absorbs CAN-bus data signals to prevent wave reflection, signal corruption, and communication drops across the network.

Built with marine-grade glass-filled thermoplastic and dual nitrile O-ring seals, the A06031 provides an IPx6/IPx7 waterproof barrier at the backbone extremities. Its blue color-coded keying ensures clear visual identification during installation, preventing misconnection into white/grey spur sockets or yellow SeaTalk to SeaTalkng converter ports.

Key Features

• Essential CAN-Bus Termination: Provides the exact 120 Ω end-of-line resistance required at both ends of a SeaTalkng backbone (reducing total parallel network resistance to 60 Ω).

• Color-Coded Blue Keying: Plug shape and bright blue molding match only SeaTalkng backbone ports, preventing installation errors into spur or converter ports.

• IPx6/IPx7 Submersible Seal: Internal nitrile elastomeric seals isolate gold-plated contact pins from bilge humidity, condensation, and saltwater spray.

• Plug-and-Play Installation: Push-fit keyed connector with twist-lock collar guarantees a vibration-proof mechanical connection.

Specifications
