Raymarine A06039 SeaTalkng Spur Cable 1m

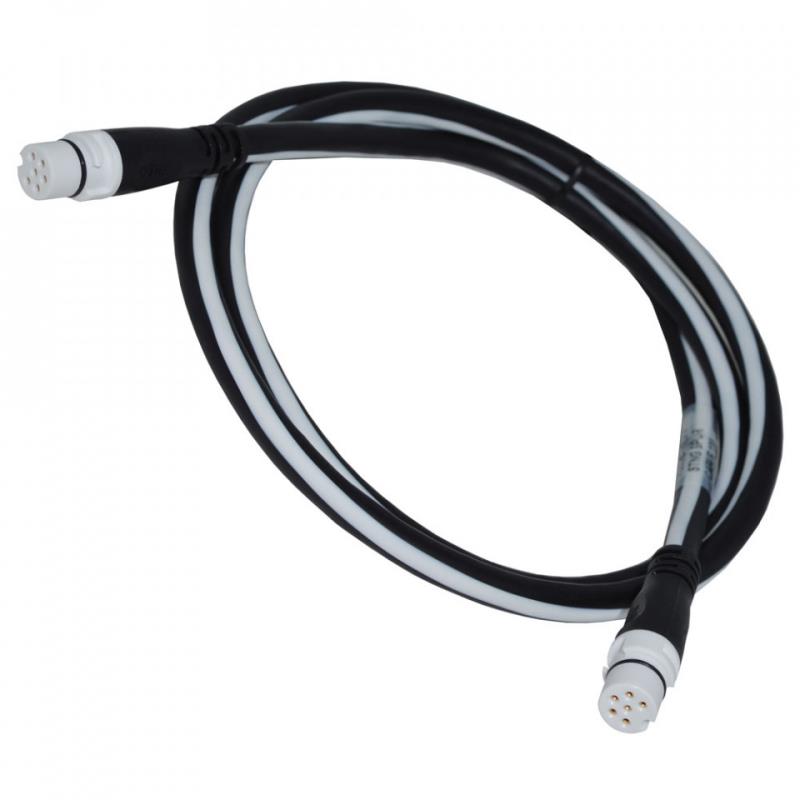

Raymarine A06039 SeaTalkng Spur Cable (1m / 3.3ft)

The Raymarine A06039 is a 1-meter (3.3 ft) marine-grade SeaTalkng spur (drop) cable engineered to connect individual instruments, displays, transducers, and sensors to a SeaTalkng network backbone. Operating as a drop connection from a SeaTalkng 5-Way Connector, T-Piece, or i70/p70 instrument pod, this spur cable routes both 12V DC device operating power and CAN-bus signal data across the network.

Featuring white/grey color-coded connector bodies and matching white cable jacket striping, the A06039 ensures error-free visual identification during installation—preventing accidental insertion into blue backbone ports. Molded 6-pin spur connectors with internal rubber O-rings provide an IPx6/IPx7 submersion-proof barrier against bilge dampness, humidity, and saltwater exposure.

Key Features

• Color-Coded Spur Keying: White/grey connector end caps ensure proper connection to matching white spur ports on T-connectors and network hubs.

• Dual Power & Data Distribution: Delivers clean 12V DC network power and high-speed CAN-bus data communication over a single shielded cable.

• IPx6/IPx7 Submersible Seal: Factory-molded connectors with integral rubber gaskets seal against moisture ingress and harsh saltwater corrosion.

• Low-Noise Shielding: Internal twisted-pair signal leads surrounded by a tinned copper braid shield reject engine alternator ripple, radar emission, and RF interference.

Specifications
