Raymarine A06040 SeaTalkng Spur Cable 3m

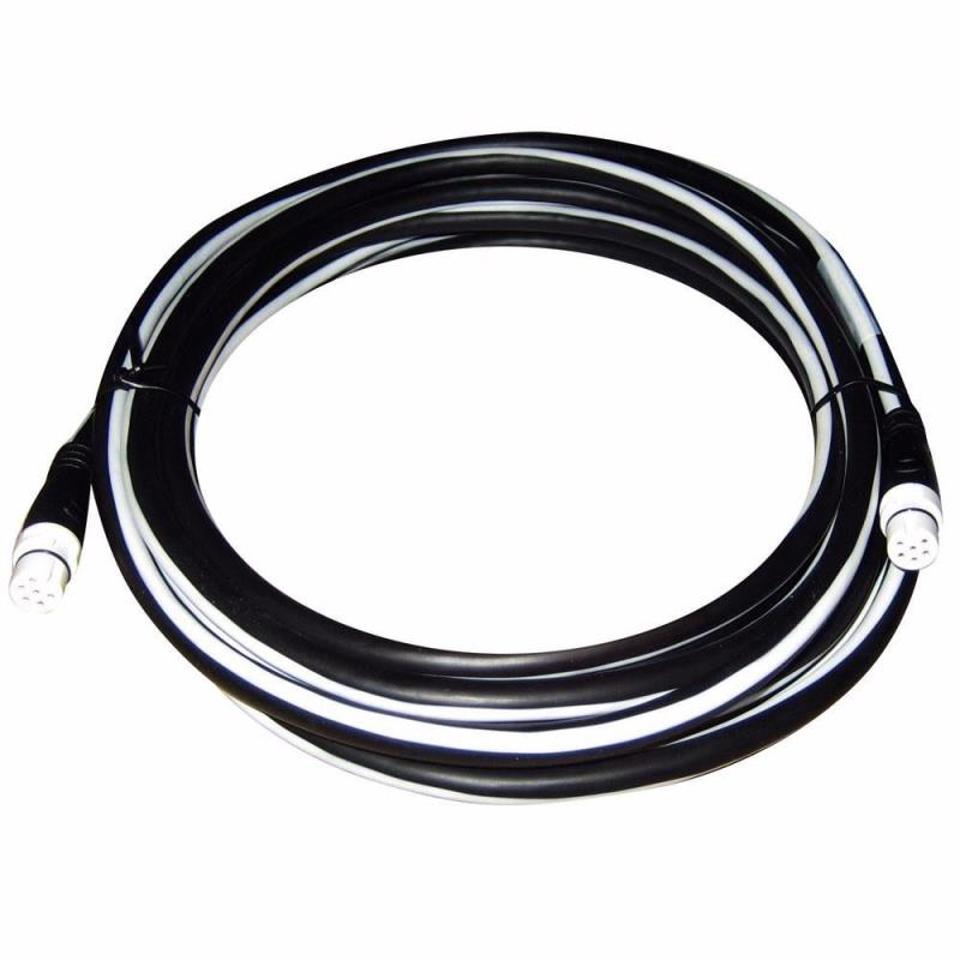

Raymarine A06040 SeaTalkng Spur Cable (3m / 9.8ft)

The Raymarine A06040 is a 3-m (9.8 ft) marine-grade SeaTalkng spur (drop) cable designed to connect individual instruments, helm displays, autopilot control heads, transducers, and sensors to a SeaTalkng network backbone. Providing extended drop reach for helm suites, flybridge stations, and navigation pods, this cable routes both 12V DC device operating power and CAN-bus signal data directly from a SeaTalkng 5-Way Connector or T-Piece hub.

Featuring white/grey color-coded connector bodies and matching white cable jacket striping, the A06040 ensures error-free visual identification during installation—preventing accidental insertion into blue backbone ports. Factory-molded 6-pin spur connectors with internal rubber O-rings provide an IPx6/IPx7 submersion-proof barrier against bilge dampness, engine room humidity, and saltwater exposure.

Key Features

• Extended Helm & Pod Reach: 3-meter length allows drop connections to overhead consoles, pod instruments, and distant sensors without exceeding maximum NMEA 2000 spur length limits (6 m max per drop).

• Color-Coded Spur Keying: White/grey connector end caps ensure proper connection to matching white spur ports on T-connectors, 5-Way blocks, and network hubs.

• Dual Power & Data Distribution: Delivers clean 12V DC network power and high-speed CAN-bus data communication over a single shielded cable.

• IPx6/IPx7 Submersible Seal: Factory-molded connectors with integral rubber gaskets seal against moisture ingress and harsh saltwater corrosion.

• Low-Noise Shielding: Internal twisted-pair signal leads surrounded by a tinned copper braid shield reject engine alternator ripple, radar emission, and RF interference.

Specifications
