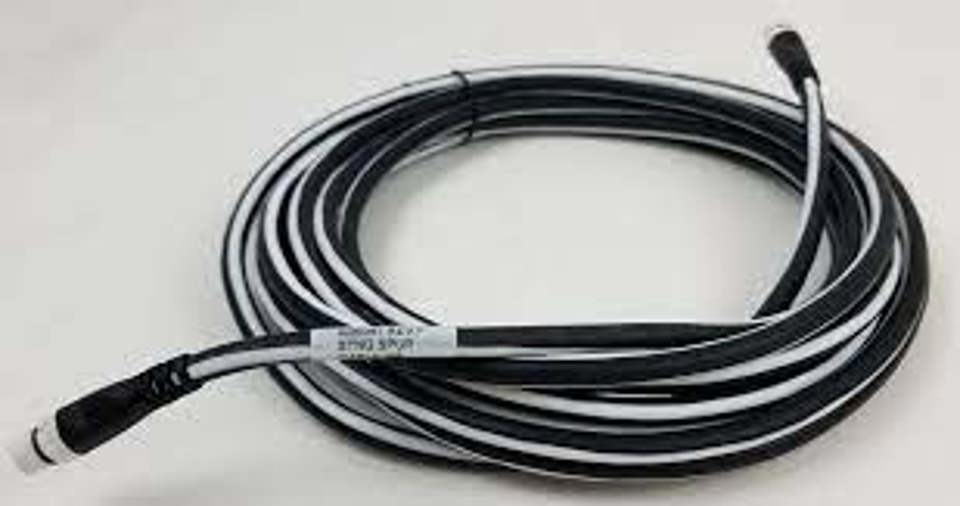

Raymarine A06041 SeaTalkng Spur Cable 5m

Raymarine A06041 SeaTalkng Spur Cable (5m / 16.4ft)

The Raymarine A06041 is a 5-meter (16.4 ft) marine-grade SeaTalkng spur (drop) cable designed to connect individual instruments, multifunction displays, autopilot control heads, radar processors, transducers, and sensors to a SeaTalkng network backbone. As the maximum standard length for a single SeaTalkng spur connection (staying safely within NMEA 2000's 6 m single-drop limit), this cable provides maximum reach for long runs to flybridges, mast steps, engine rooms, or stern sensors from a SeaTalkng 5-Way Connector or T-Piece hub.

Featuring white/grey color-coded connector bodies and matching white cable jacket striping, the A06041 ensures error-free visual identification during installation—preventing accidental insertion into blue backbone ports. Factory-molded 6-pin spur connectors with internal rubber O-rings provide an IPx6/IPx7 submersion-proof barrier against bilge dampness, engine room humidity, and saltwater exposure.

Key Features

• Maximum Standard Drop Length: 5-meter reach allows long device drops across larger hulls while fully adhering to NMEA 2000 maximum single spur length rules (6m absolute limit).

• Color-Coded Spur Keying: White/grey connector end caps ensure proper connection to matching white spur ports on T-connectors, 5-Way blocks, and network hubs.

• Dual Power & Data Distribution: Delivers clean 12V DC network power and high-speed CAN-bus data communication over a single shielded cable.

• IPx6/IPx7 Submersible Seal: Factory-molded connectors with integral rubber gaskets seal against moisture ingress and harsh saltwater corrosion.

• Low-Noise Shielding: Internal twisted-pair signal leads surrounded by a tinned copper braid shield reject engine alternator ripple, radar emission, and RF interference.

Specifications
