Raymarine A06046 SeaTalkng to DeviceNet Male Cable

Raymarine A06046 SeaTalkng to DeviceNet Male Adapter Cable (0.4m / 1.3ft)

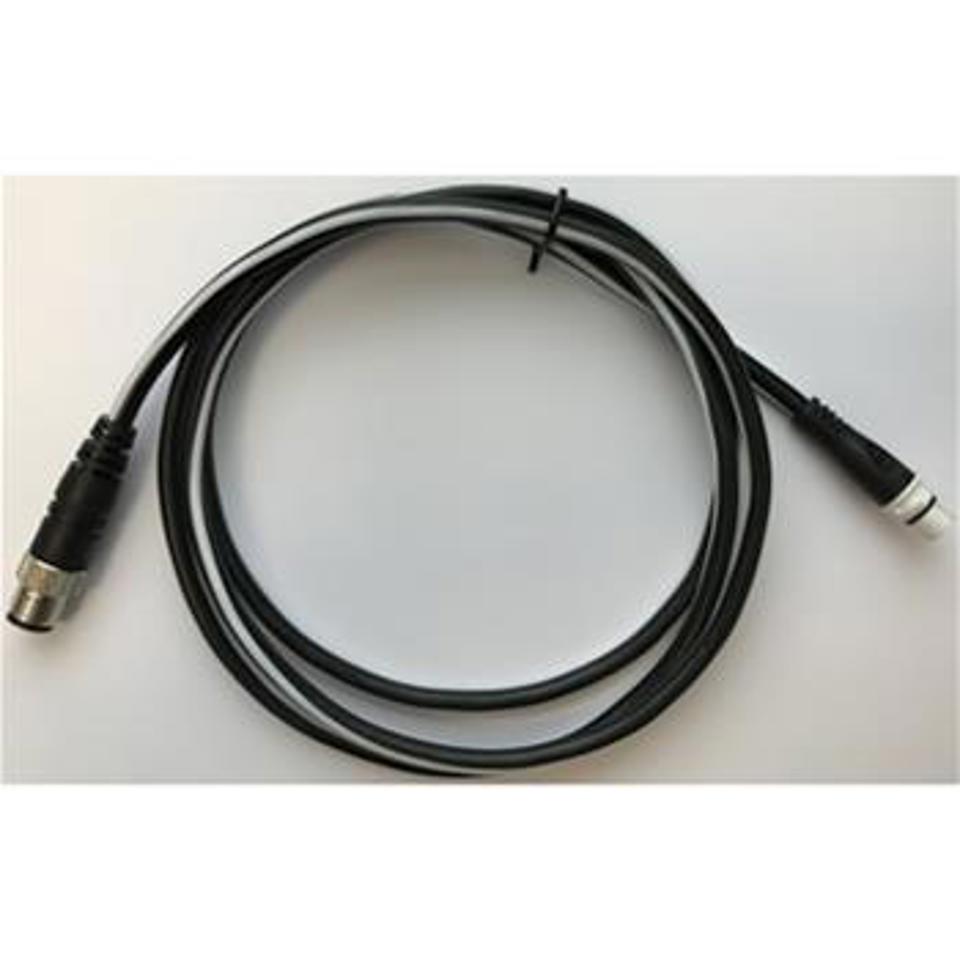

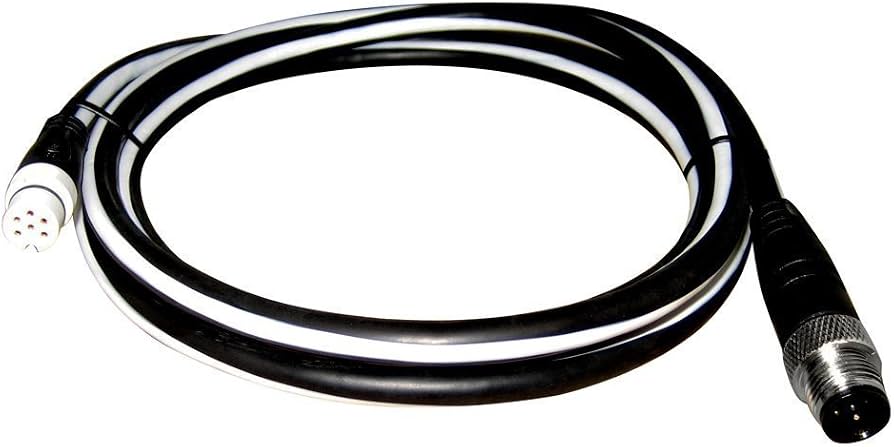

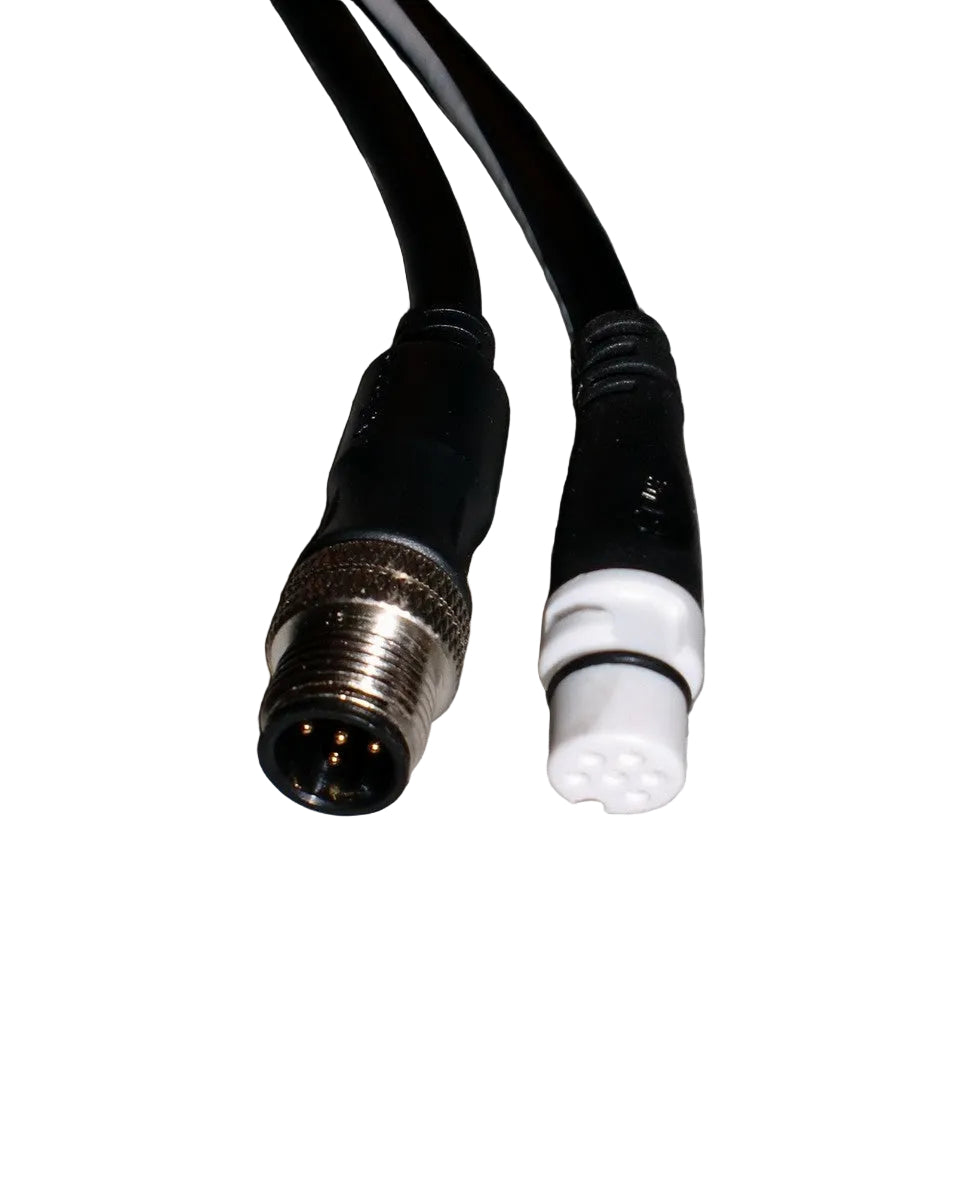

The Raymarine A06046 is a 0.4-m (1.3 ft) SeaTalkng to DeviceNet (NMEA 2000 Micro-C) male adapter cable designed to bridge Raymarine SeaTalkng network hardware with standard NMEA 2000 DeviceNet micro-C networks. This adapter features a molded 6-pin SeaTalkng spur connector on one end and a standard NMEA 2000 Micro-C 5-pin male connector on the other.

This male configuration is specifically used to adapt a SeaTalkng spur port (found on 5-Way blocks, T-Pieces, or SeaTalkng displays) to accept standard NMEA 2000 female drop cables or direct connections to non-Raymarine NMEA 2000 devices (such as Garmin, Lowrance, Simrad, or Furuno displays, engines, and sensors). It converts physical connector formats while maintaining seamless, native CAN-bus data pass-through and power distribution.

Key Features

• Cross-Brand NMEA 2000 Integration: Connects standard NMEA 2000 third-party devices directly into Raymarine SeaTalkng spur ports without cutting or splicing wires.

• Color-Coded Spur Interface: White SeaTalkng molded head guarantees proper keying into white spur ports on 5-Way connectors and T-pieces.

• Rugged Marine-Grade Molding: Factory-overmolded strain-relief boots with threaded locking rings maintain IPx6/IPx7 water ingress protection under deck or in bilges.

• Zero Signal Degradation: Shielded twisted-pair data lines ensure lossless 250 kbps NMEA 2000 CAN-bus data transfer and clean power delivery.
