Raymarine A06049 SeaTalkng Power Cable

Raymarine A06049 SeaTalkng Power Cable (1m / 3.3ft)

The Raymarine A06049 is a 1-m (3.3 ft) dedicated SeaTalkng power tap cable designed to inject 12V DC operating power into a SeaTalkng or NMEA 2000 network backbone. Connecting directly into any available spur port on a 5-Way Connector, T-Piece, or SeaTalkng network hub, this cable provides clean, fused DC power to operate instruments, transducers, and low-power sensors across the network.

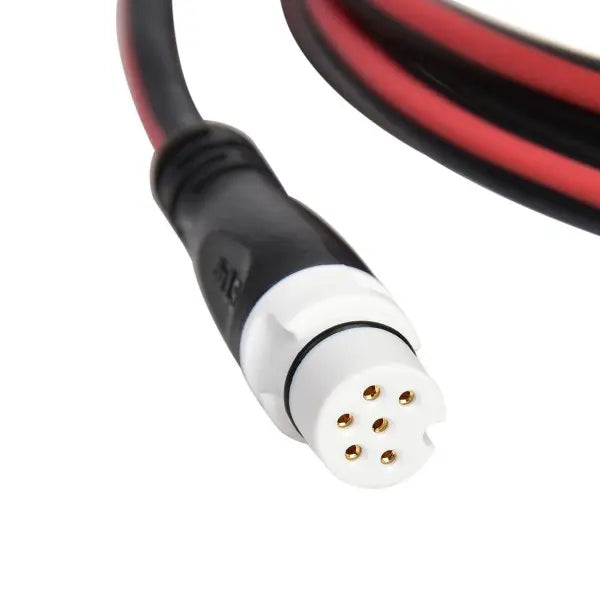

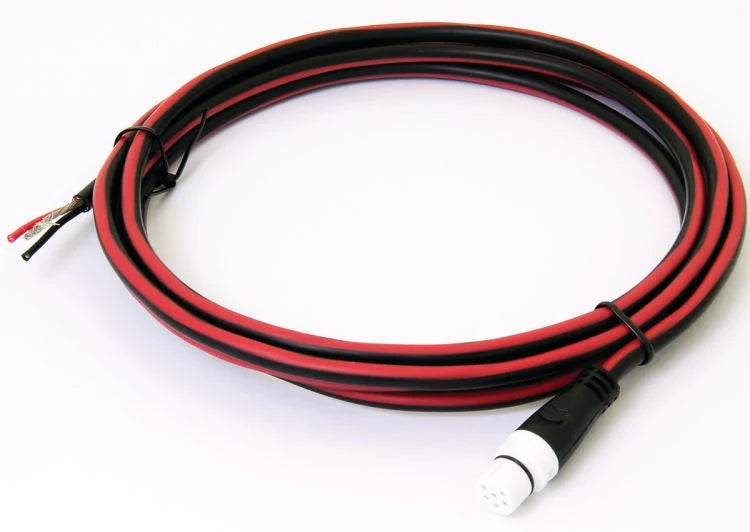

Featuring red and black stripped bare-wire ends on one side and a white/grey molded 6-pin SeaTalkng spur connector on the other, the A06049 connects easily to a vessel's DC breaker panel or switched power source. The cable includes an integral drain wire to ensure proper network grounding, while the factory-molded connector housing maintains IPx6/IPx7 submersion-proof integrity at the network tap point.

Key Features

• Single-Point Network Power Tap: Supplies centralized, noise-filtered 12V DC power to the entire SeaTalkng CAN-bus network backbone.

• Color-Coded Spur Interface: White/grey connector end cap guarantees correct keying into white spur ports on network T-pieces and 5-Way blocks.

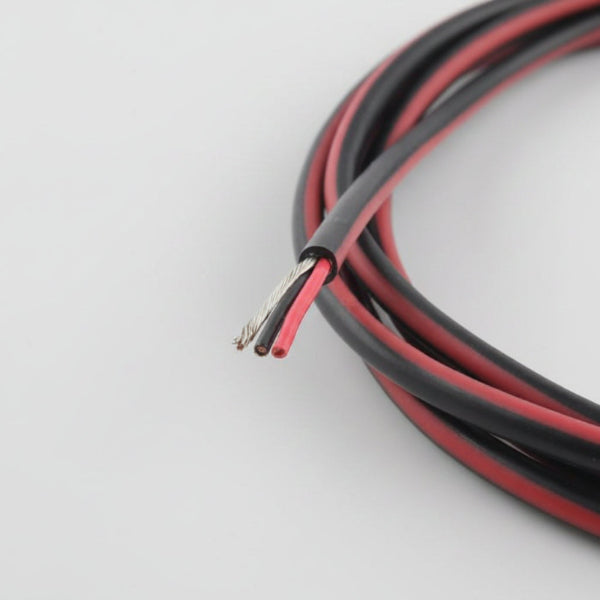

• Bare-Wire Connections: Tinned wire leads allow easy termination to breaker panels, fuse blocks, or switched power buses.

• Drain Wire Shield Integration: Includes a bare tinned copper drain wire to connect to the vessel's RF ground point, preventing engine and radar interference.

• IPx6/IPx7 Submersible Seal: Factory-overmolded connector with an elastomeric O-ring isolates internal electrical contacts from moisture and corrosion.

Specifications
