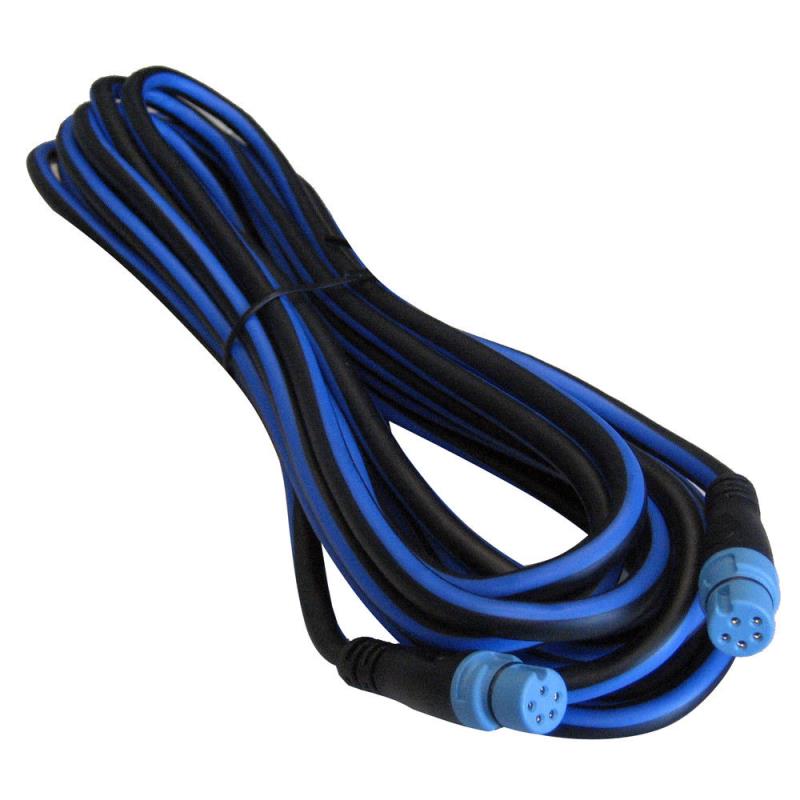

Raymarine A06068 SeaTalkng Backbone Cable 9m

Raymarine A06068 SeaTalkng Backbone Cable (9m / 29.5ft)

The Raymarine A06068 is a 9-meter (29.5 ft) heavy-duty SeaTalkng backbone (trunk) cable engineered to form the primary data and power distribution highway of a Raymarine vessel network. Designed to run the length of a boat—connecting key distribution nodes like 5-Way Connectors, T-Pieces, and inline extenders—this cable carries all high-speed CAN-bus data traffic and 12V DC network power between bow, helm, engine room, and stern equipment stations.

Featuring blue color-coded connector heads and blue line striping along the outer cable jacket, the A06068 provides instant visual separation from white spur lines, preventing installation errors into drop ports. Built with heavy-gauge power conductors and low-attenuation shielded twisted pairs, the 9-meter cable minimizes voltage drop and signal decay over long physical runs.

Key Features

• Color-Coded Blue Keying: Blue connector heads and matching cable jacket stripe ensure foolproof identification as a backbone trunk line.

• Heavy-Duty Signal & Power Trunk: Low-resistance internal wiring minimizes 12V DC voltage drop over long fore-to-aft vessel runs.

• IPx6/IPx7 Waterproof Seals: Overmolded twist-lock connectors with elastomeric O-rings prevent moisture ingress and saltwater corrosion in bilges and conduit runs.

• 360° Interference Shielding: Tinned copper braid shielding protects sensitive CAN-bus signal pairs from engine alternator noise, VHF radios, and radar transmissions.

• Plug-and-Play Expansion: Instantly connects into SeaTalkng 5-Way Connectors, T-Pieces, Backbone Extenders (A06030), or network terminators.

Specifications
