Raymarine A80007 HS5 Network Switch

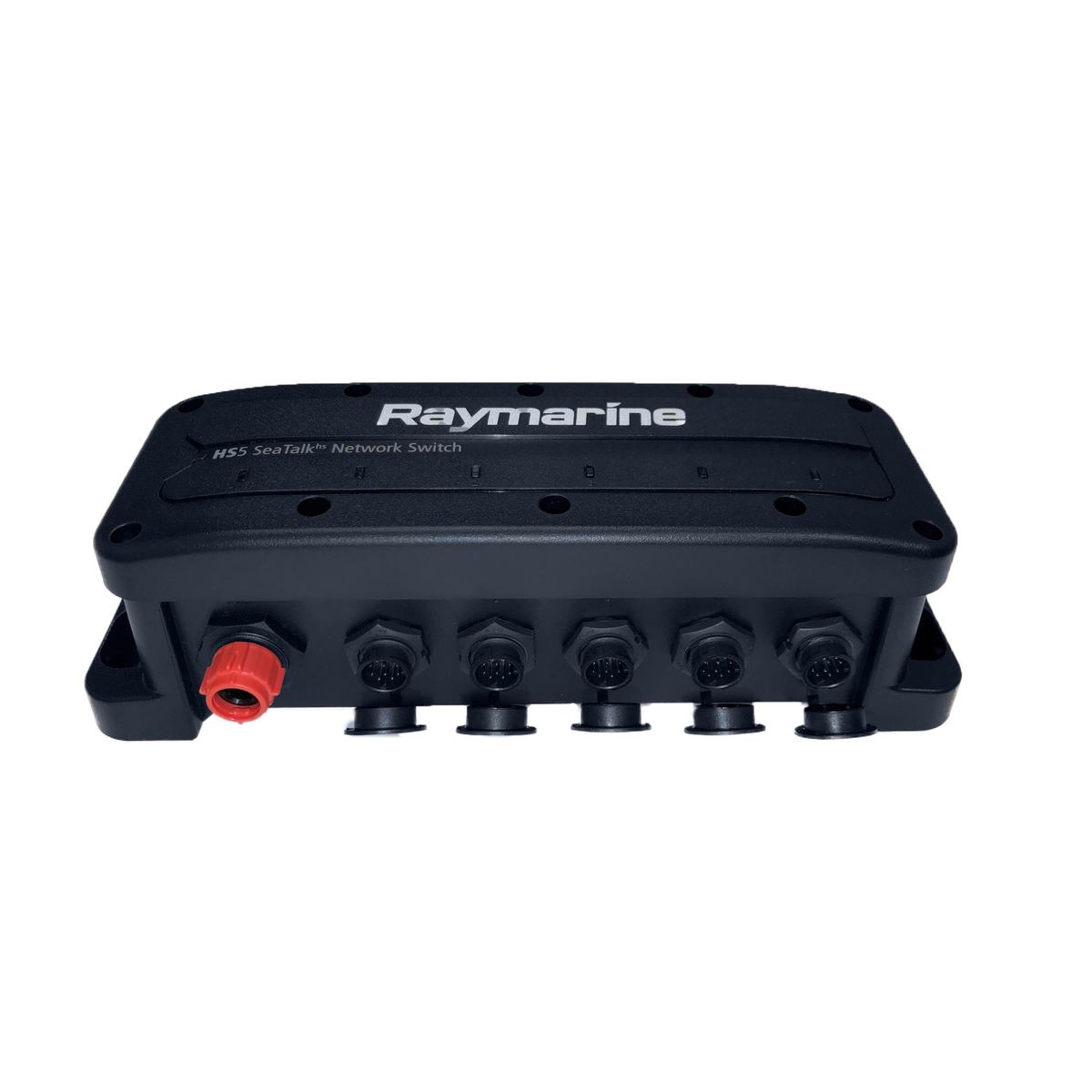

The Raymarine A80007 (HS5) is a compact, high-speed 5-port marine Ethernet network switch designed to serve as the central hub for Raymarine's RayNet (SeaTalkhs) network architecture. It enables simultaneous data distribution across multiple Raymarine onboard electronics—including Axiom multifunction displays, Quantum and Cyclone radar scanners, CP-series sonar modules, IP cameras, and SiriusXM weather receivers.

Engineered specifically for harsh marine conditions, the HS5 features five waterproof, locking RayNet ports that deliver Gigabit Ethernet throughput (10/100/1000 Mbps) with low power consumption. Its ruggedized housing is rated to IPx6/IPx7 water ingress protection, allowing for reliable installation in damp bilges, console interiors, or electronics lockers. Auto-sensing technology on all ports automatically negotiates optimal connection speeds for connected instruments.

Key Features

• Centralized High-Bandwidth Hub: Connects up to 5 RayNet-equipped devices or additional HS5 switches to expand system capacity infinitely across large vessel networks.

• Gigabit Ethernet Support: Delivers fast 1000 Mbps data throughput for real-time radar overlay, high-definition CHIRP sonar streaming, multi-station chart synchronization, and IP video feed distribution.

• Waterproof Locking RayNet Ports: Factory-sealed RayNet ports interface with locking RayNet cable collars to create an IPx6/IPx7 submersion-proof seal resistant to vibration and saltwater corrosion.

• Low Power Consumption: Optimized 12/24V DC operation with minimal standby power draw to conserve house battery capacity.

• Plug-and-Play Configuration: Auto-negotiating ports automatically manage network speeds and traffic crossover without requiring software configuration or manual IP setup.
