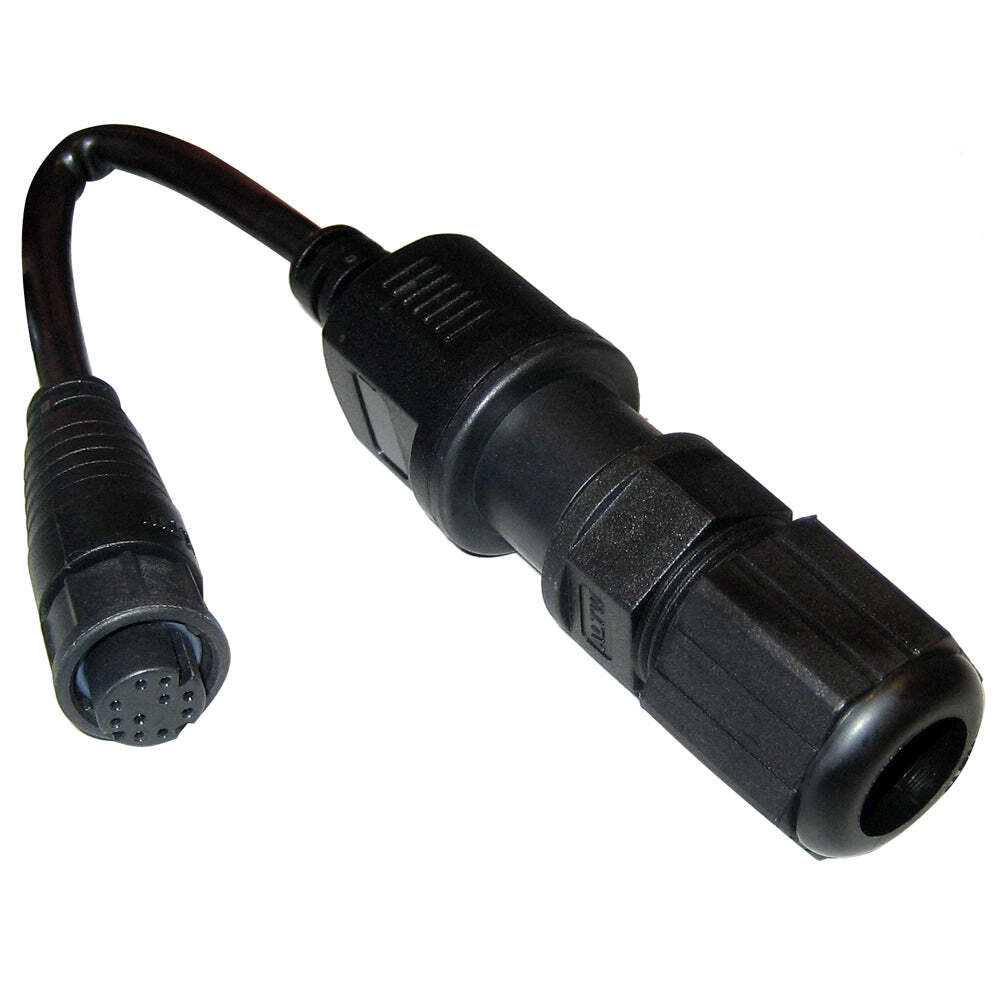

Raymarine A80247 RayNet to RJ45 Female Adapter Cable
Raymarine A80247 RayNet to RJ45 Female Adapter Cable
Couldn't load pickup availability
Raymarine A80247 RayNet (M) to RJ45 (F) Adapter Cable (100mm / 4 in)
The Raymarine A80247 is a compact 100mm (3.9 in) RayNet male to RJ45 female adapter cable engineered to bridge Raymarine's RayNet marine Ethernet architecture with standard RJ45-terminated Ethernet lines, SeaTalkhs network cables, or third-party network gear.
Featuring a waterproof male RayNet connector on one end and a panel/bulkhead-mountable shielded RJ45 female socket on the other, this adapter is primarily used to adapt existing RJ45 male cable runs (such as legacy SeaTalkhs patch leads or standard CAT5e/6 marine-grade cables) so they can plug directly into RayNet female cable assemblies, HS5 network switches, or RayNet MFD display ports.
Key Features
-
Cable-End Conversion: Converts standard RJ45 male Ethernet patch cables to a waterproof RayNet male interface.
-
High-Bandwidth Marine Ethernet: Supports continuous 10/100/1000 Mbps throughput for high-resolution radar, sonar sharing, video streaming, and chart synchronization.
-
IPx6/IPx7 RayNet Waterproofing: The RayNet male interface accepts locking RayNet female cable collars, forming an IPx6/IPx7 submersion-proof seal.
-
Shielded Conductor Assembly: Tinned copper twisted pairs surrounded by an integral drain/braid shield protect network communications from engine noise and RF interference.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Raymarine (Teledyne FLIR) |
| Part Code / SKU | A80247 |
| Cable Type | High-Speed Marine Ethernet Adapter Cable |
| Overall Length | 100 mm (3.94 in / 0.33 ft) |
| Connector A Interface | RayNet Male Connector (Keyed Pins, External Threading) |
| Connector B Interface | Standard RJ45 Female Socket (8P8C Modular) |
| Network Speed Support | 10 Base-T / 100 Base-TX / 1000 Base-T Marine Ethernet |
| Conductor Wiring | 4-Pair Shielded Twisted Pair (STP) Tinned Copper |
| Contact Plating | Gold-Plated Contacts |
| Outer Cable Jacket | Flexible UV-Stabilized & Oil-Resistant PVC (Black) |
| Ingress Protection Rating | IPx6 / IPx7 (RayNet End when mated) / IP20 (RJ45 Female Socket) |
| Operating Temperature Range | -20°C to +55°C (-4°F to +131°F) |
| Compliance & Approvals | CE, RoHS, IEEE 802.3 Ethernet Standards |
