Raymarine A80262 RayNet Right Angle Male Adapter Cable

Raymarine A80262 RayNet (M) Right Angle Adaptor

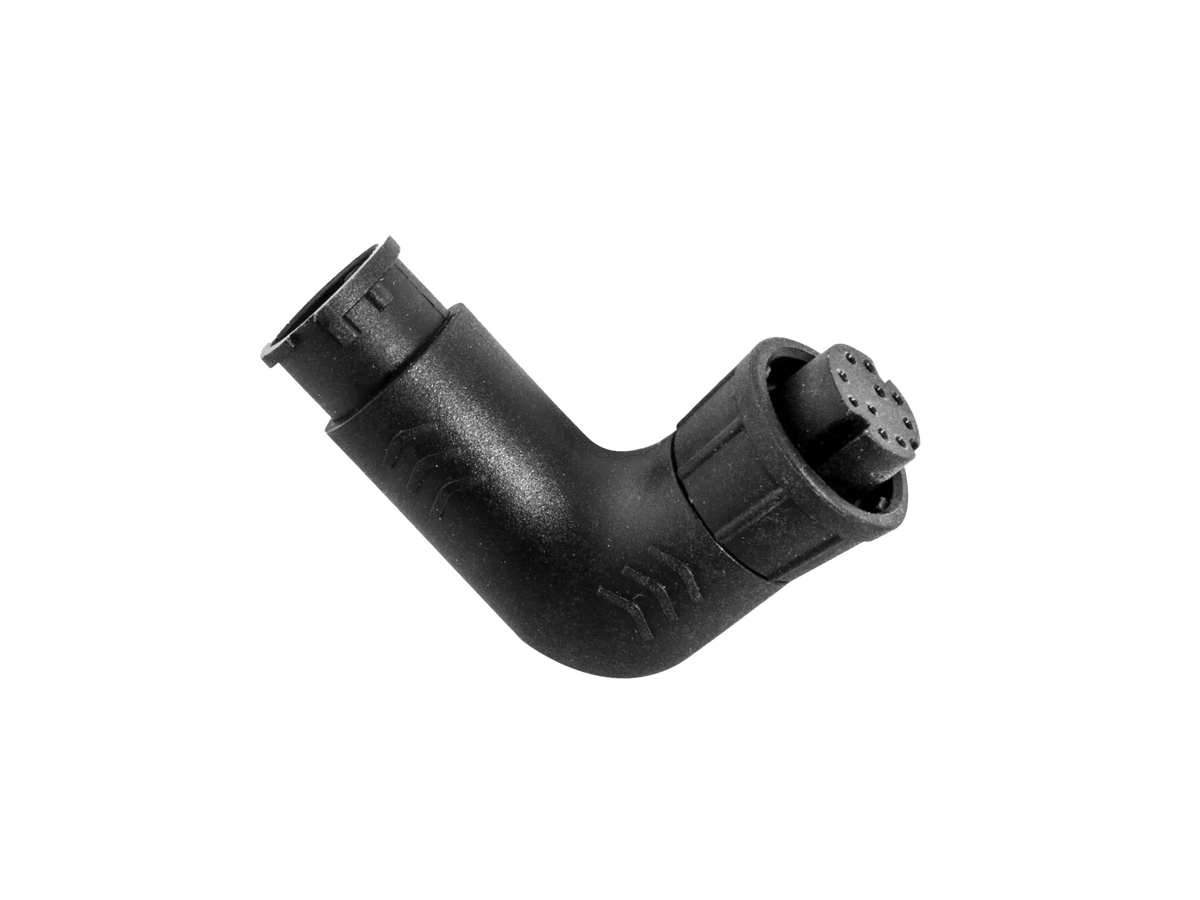

The Raymarine A80262 is a specialized right-angle RayNet male adapter cable designed to solve spatial constraints behind tight helm consoles, flush-mounted MFD pods, and restricted electronics lockers. Featuring a 90° right-angle RayNet male connector on one end and a straight RayNet female connector on the other, this adapter redirects Ethernet cable routing parallel to the mounting surface—drastically reducing behind-dash clearance requirements and relieving strain on display ports.

Engineered to meet Raymarine’s stringent marine-grade physical networking standards, both ends incorporate waterproof rubber seals and locking collars. When mated with RayNet female network lines (or direct to Axiom displays and HS5 network switches), the A80262 maintains an IPx6/IPx7 submersible seal while delivering full Gigabit Ethernet throughput (10/100/1000 Mbps) for high-resolution radar, sonar, and navigation data sharing.

Key Features

• Space-Saving 90° Profile: Reduces rear mounting clearance by up to 50 mm (2 in), allowing flush mounting of large MFDs in shallow helm dashboards.

• Strain Relief for MFD Ports: Eliminates tight cable bending radii directly behind display ports, protecting internal circuit board connectors from long-term stress.

• Full Gigabit Data Throughput: Maintains full 10/100/1000 Mbps network bandwidth for continuous CHIRP sonar, digital radar, and IP video feed distribution.

• IPx6/IPx7 Submersible Seal: Factory-molded nitrile seals and threaded locking collars protect gold-plated pins against bilge humidity and saltwater spray.

• Plug-and-Play Integration: Directly bridges standard straight RayNet female cable runs to male display ports or switch ports.

Specifications
