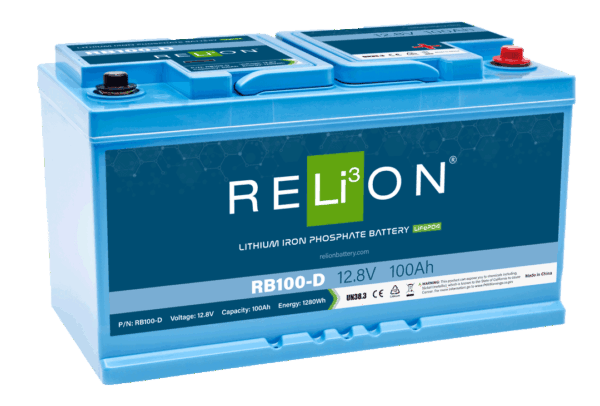

RB100-D

12V 100Ah DIN LiFePO4 Battery

This 12V 100Ah lithium deep cycle battery is a safer, more lightweight alternative in your application. The RB100-D is a European DIN size battery.

At 30 lbs, this battery is less than half the weight of the lead-acid or AGM equivalent, helping to fight against the drag caused by heavier options. It maintains consistent power and is equipped with handles for carrying, an M8 terminal type and a built-in battery management system (BMS).

All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.

PRODUCT SPECIFICATIONS

• Voltage: 12.8V
• Amp Hours: 100Ah

DIMENSIONS & WEIGHT

• Length: 13.2 in (335 mm)
• Width: 6.9 in (174 mm)
• Height: 7.5 in (191 mm)
• Weight: 30.2 lbs (13.7 kg)

APPLICATIONS

• AWP
• Electric Vehicles
• Floor Machines
• Marine
• Recreational Vehicles
• Solar



DATA SHEET

 DOWNLOAD PDF

ELECTRICAL SPECIFICATIONS
Nominal Voltage	12.8 V
Nominal Capacity	100 Ah
Capacity @ 25A	240 min
Energy	1280 Wh
Resistance	≤30 mΩ @ 50% SOC
Efficiency	99%
Self Discharge	<3% per Month
Maximum Modules in Series	4

MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)	13.2 x 6.9 x 7.5" (335 x 174 x 191 mm)
Weight	30.2 lbs (13.7 kg)
Terminal Type	M8 x 1.25
Terminal Torque	80 - 100 in-lbs (9 - 11 N-m)
Case Material	ABS
Enclosure Protection	IP66
Cell Type - Chemistry	Cylindrical LiFePO4

DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current	100 A
Peak Discharge Current	200 A (7.5 s ±2.5 s)
BMS Discharge Current Cut-Off	280 A ±50 A (9 ±4 ms)
Recommended Low Voltage Disconnect	11 V
BMS Discharge Voltage Cut-Off	8 V (2.0 ±0.08 vpc) (140 ±60 ms)
Reconnect Voltage	9.2 V (2.3 ±0.1 vpc)
Short Circuit Protection	200-600 µs

CHARGE SPECIFICATIONS
Recommended Charge Current	5 A - 50 A
Maximum Charge Current	100 A
Charge Current 32°F to 14°F (0 to -10°C)	≤0.1 C
Charge Current 14°F to -4°F (-10 to -20°C)	≤0.05 C
Recommended Charge Voltage	14.2 V - 14.6 V
BMS Charge Voltage Cut-Off	15.6 V (3.9 ±0.025 vpc)
	(1.1 ±0.4 s)
Reconnect Voltage	15.2 V (3.8 ±0.05 vpc)
Balancing Voltage	14.4 V (3.6 ±0.025 vpc)

TEMPERATURE SPECIFICATIONS
Discharge Temperature	-4 to 140 ºF (-20 to 60 ºC)
Charge Temperature*	-4 to 113 ºF (-20 to 45 ºC)
Storage Temperature	23 to 95 ºF (-5 to 35 ºC)
BMS High Temperature Cut-Off	176 ºF (80 ºC)
Reconnect Temperature	122 ºF (50 ºC)
*Refer to charge currents below 32°F (0°C)

COMPLIANCE SPECIFICATIONS
Certifications	CE (battery)
	UN38.3 (battery)
	UL1642 (cells) (File# MH64523)
	IEC62133 (cells)
Shipping Classifications	UN 3480, CLASS 9
