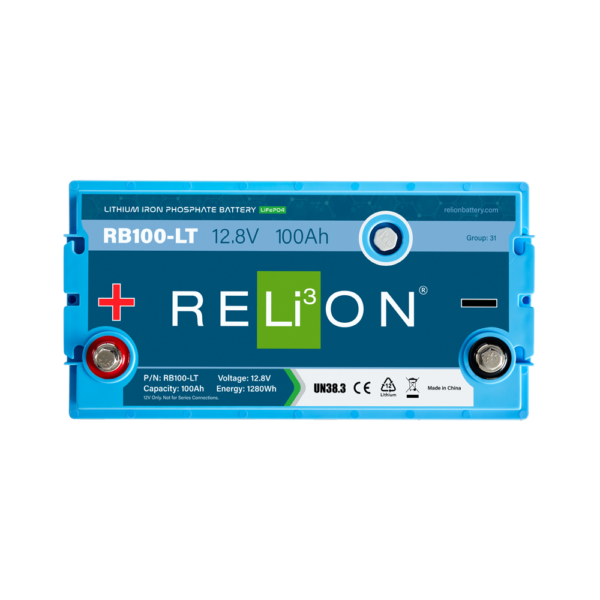

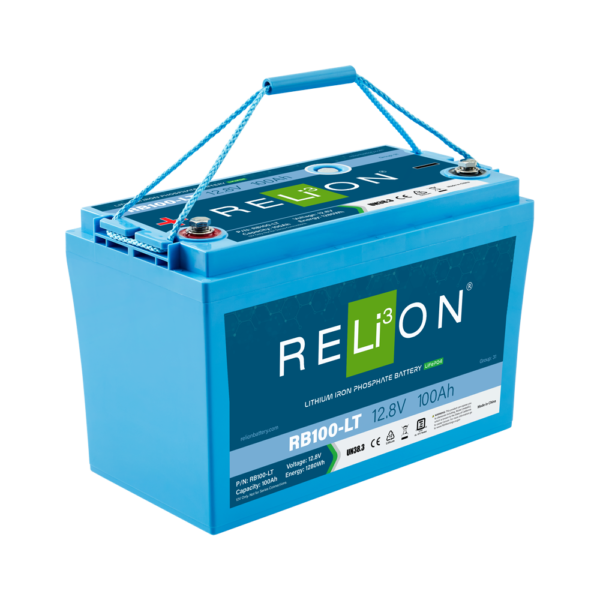

RB100-LT: Cold Weather Lithium Battery

12V 100Ah Lithium Deep Cycle Battery

The RB100-LT is a 12V 100Ah lithium battery and is part of RELiON’s Low-Temperature Series. This lithium iron phosphate battery is specially designed for cold weather performance. RELiON’s LT Series batteries can safely charge at temperatures down to -20°C (-4°F) using a standard charger. The system features proprietary technology which draws power from the charger itself, requiring no additional components. Now improved protection with an IP67 ingress protection rating, which completely repels dust and resists water ingress for up to 30 minutes submerged at 1 meter.

The entire process of heating and charging with the LT Series is completely seamless. Simply plug the battery into the regular lithium charger and the internal heating and monitoring system takes care of the rest. Because it takes time to heat the cells, the charging process in below-freezing temperatures could take a little longer.

The Low-Temperature Series battery has the same size and performance as other RELiON batteries but can safely charge when temperatures drop as low as -20°C using a standard charger. The RB100-LT is an ideal choice for use in RVs, off-grid solar, electric vehicles, and in any application where charging in colder temperatures is necessary.

PRODUCT SPECIFICATIONS

• Voltage: 12.8V
• Amp Hours: 100Ah

DIMENSIONS & WEIGHT

• Length: 13 in (329 mm)
• Width: 6.8 in (172 mm)
• Height: 8.4 in (214 mm)
• Weight: 27.9 lbs (12.64 kg)

APPLICATIONS

• Backup Power
• Electric Vehicles
• Marine
• Recreational Vehicles
• Solar



DATA SHEET

 DOWNLOAD PDF

ELECTRICAL SPECIFICATIONS
Nominal Voltage	12.8 V
Nominal Capacity	100 Ah
Capacity @ 25 A	240 min
Energy	1280 Wh
Resistance	≤30 mΩ @ 50% SOC
Efficiency	99%
Self Discharge	<3% per Month
Maximum Batteries Connected in Series	1 (Single-Use)

MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)	13 x 6.8 x 8.4” (329 x 172 x 214 mm)
Weight	27.9 lbs (12.64 kg)
Terminal Type	M8 x 1.25
Terminal Torque	80 - 100 in-lbs (9 - 11 N-m)
Case Material	ABS
Enclosure Protection	IP67
Cell Type - Chemistry	Cylindrical - LiFePO4

DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current	100 A
Peak Discharge Current	200 A (7.5 s ±2.5 s)
Discharge Over-Current Protection	280 A ±50 A (32 ±10 ms)
Recommended Low Voltage Disconnect	11.0 V
Discharge Under-Voltage Protection	9.2 V (2.3 ±0.08 vpc) (4.7 ±1 s)
Reconnect Voltage	10.0 V (2.5 ±0.1 vpc)
Short Circuit Protection Response Time	200-600 μs

CHARGE SPECIFICATIONS
Recommended Charge Current	5 A - 50 A
Maximum Continuous Charge Current	100 A
Recommended Charge Voltage	14.2 V - 14.6 V
BMS Charge Voltage Cut-Off	15.4 V (3.85 ±0.025 vpc) (1000 ±200 ms)
Reconnect Voltage	14.6 V (3.65 ±0.05 vpc)
Balancing Voltage	14.4 V (3.6 ±0.025 vpc)

TEMPERATURE SPECIFICATIONS
Discharge Temperature	-4 to 140 ºF (-20 to 60 ºC)
Charge Temperature	-4 to 113 ºF (-20 to 45 ºC)
Recommended Storage Temperature	23 to 95 ºF (-5 to 35 ºC)
BMS High Temperature Cut-Off - Discharge	185 ºF (85 ºC)
BMS High Temperature Cut-Off - Charge	140 ºF (60 ºC)
Reconnect Temperature	122 ºF (50 ºC)

HEATING ELEMENT SPECIFICATIONS
Heating Temperature Range	-4 to 41 ºF (-20 to 5 ºC)
Heating Time	Approximately 1 hr @ 10 A

COMPLIANCE SPECIFICATIONS
Certifications	UN38.3 (battery) & CE (battery) UKCA
	UL1642 (cells) (File# MH64523)
	IEC62133 (cells)
Shipping Classification	UN 3480, CLASS 9
