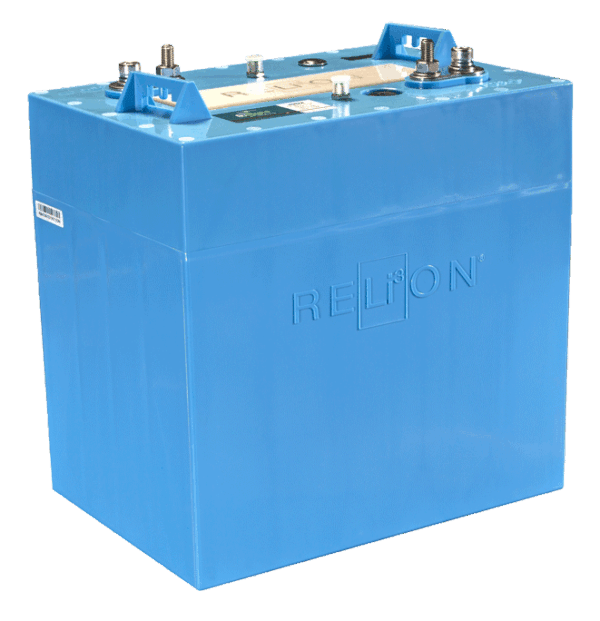

InSight 48V 30Ah

Lithium Golf Cart Battery

Our InSight Series® 48V lithium iron phosphate battery is a GC2 sized drop-in replacement battery that delivers high-quality performance, power and precision. This 48V 30 Ah battery was designed specifically for golf cars, utility vehicles, LSVs and AGVs.

InSight batteries are drop-in ready and easy to install, just connect them in parallel for the capacity you need. No need to modify trays, no complicated connections, and no heavy lifting. We recommend using our Battery Spacers to fill the empty battery spots so you can use the existing battery hold-downs that come in your vehicle. These can be purchased on our website. If you do not use our Battery Spacers, please ensure your InSight batteries are securely held down.

They’re also scalable, so you can provide increased power and energy as needed. InSight batteries are connected in parallel which means you have the freedom and flexibility to use the right amount of batteries for your equipment, typically two to six batteries.

InSight batteries also feature an elegant BMS that provides precision balancing within a battery and between batteries in a parallel system without the need for charging batteries individually. In addition, our proprietary software determines and manages regenerative currents – unlike any other battery solution - avoiding unnecessary battery disconnects.

With InSight, you get unmatched quality and performance, from the inside out. It’s the only lithium battery like it on the market today!

PRODUCT SPECIFICATIONS

• Voltage: 51.2V
• Amp Hours: 30Ah

DIMENSIONS & WEIGHT

• Length: 10.2 in (260 mm)
• Width: 7.1 in (180 mm)
• Height: 10.9 in (276 mm)
• Weight: 34.4 lbs (15.6 kg)

APPLICATIONS

• Golf

DATA SHEET

 DOWNLOAD PDF

FUNCTIONAL SPECIFICATIONS
Nominal Voltage	51.2V
Cell Chemistry	LiFePO4
Cell Type	Prismatic
Ampere-hour Capacity	30Ah
Watthour Capacity	1.536kWh
Specific Energy	128Wh/kg
Charge Efficiency	99%
Impedance (50% SOC, 1kHz)	<150mΩ
Cycles @ 80% DOD	>3500
Parallel Connections	Yes (unlimited)
Series Connections	No (max 48V system)

MECHANICAL SPECIFICATIONS
BCI Size	GC2/GC8
Dimensions (LxWxH)	10.2 x 7.1 x 10.9 in (260 x 180 x 276mm)
Weight	34.4 lbs (15.6 kg)
Case Material	ABS
Stud Terminal	M8 X 1.25 - 20
Insert Terminal	M8 X 1.25 - 20
Torque	79.7-88.5 in-lbs.6.6 - 7.4 ft-lbs.9-10 N-m
Handles	Molded
Ingress Protection Marking	IP67
Case Flame Rating	UL94 V-0

DISCHARGE SPECIFICATIONS
Continuous Discharge Current	100A
Peak Discharge Current	200A - 15 sec
Peak Discharge Current	400A - 30 msec
Short Circuit Protection	560A - 366 μsec
Protection Recover	Automatic
Low Voltage Disconnect	40V - 5 sec (2.5vpc)
Low Voltage Reconnect	Automatic
Self-Discharge perMonth @ 25°C in OFF mode	2.80%

CHARGE SPECIFICATIONS
Continuous Charge Current	≤ 60A
Disconnect Charge Current	65A - 5 sec
Recommended Charge Voltage	55.2V max
Float Voltage	54.4V
High Voltage Disconnect	59.2V (3.7vpc) (4 sec)
High Voltage Reconnect	Automatic
Temperature Compensation	None

ENVIRONMENTAL SPECIFICATIONS
Charge Temperature	32°F to 131°F (0°C to 55°C)
Discharge Temperature	-22°F to 149°F (-30°C to 65°C)
Operating Humidity	<90% RH
Storage Temperature	-4°F to 95°F (-20°C to 35°C)
Storage Humidity	25 to 85% RH

CERTIFICATIONS
UL2580 (Cell)	File Number: MH63797
UL2271 (Battery Pack)	File Number: MH64262
CE (Battery Pack)
IEC 62133 (Battery Pack)
UN38.3 (Battery Pack)

SHIPPING CLASSIFICATION
UN3480, Class 9
