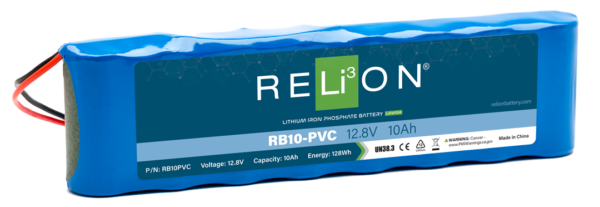

RELiON - RB10PVC - 12V 10Ah LiFePO4 Battery (PVC)
RELiON - RB10PVC - 12V 10Ah LiFePO4 Battery (PVC)
Pre order
Regular price
$ 142.25 USD
Regular price
Sale price
$ 142.25 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
RB10PVC
12V 10Ah LiFePO4 Battery (PVC)
This lightweight PVC battery has wire leads, built-in BMS and temperature control. Our 12V 10Ah lithium iron phosphate batteries also feature a built-in battery management system (BMS). All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
PRODUCT SPECIFICATIONS
- Voltage: 12.8V
- Amp Hours: 10Ah
DIMENSIONS & WEIGHT
- Length: 10.3 in (262 mm)
- Width: 1.4 in (36 mm)
- Height: 3 in (77 mm)
- Weight: 4 lbs (1.8 kg)
APPLICATIONS
- Solar
DATA SHEET
DOWNLOAD PDF|
ELECTRICAL SPECIFICATIONS |
|
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 10 Ah |
| Energy | 128 Wh |
| Resistance | ≤90 mΩ @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
|
MECHANICAL SPECIFICATIONS |
|
|---|---|
| Dimensions (L x W x H) | 10.3 x 1.4 x 3.0” (262 x 36 x 77 mm) |
| Weight | 4 lbs (1.8 kg) |
| Terminal Type | Wire Leads (250-300 mm) |
| Case Material | PVC |
| Cell Type | Cylindrical |
| Chemistry | LiFePO4 |
|
DISCHARGE SPECIFICATIONS |
|
|---|---|
| Maximum Continuous Discharge Current | 10 A |
| Peak Discharge Current | 20 A (7.5 s ±2.5 s) |
| Discharge Over-Current Protection | 30 A ±5 A (10 ±5 ms) |
| Recommended Low Voltage Disconnect | 11.0 V |
| Discharge Under-Voltage Protection | 8.0 V (2.0 ±0.08 vpc) (100 ±50 ms) |
| Reconnect Voltage | 10.0 V (2.5 ±0.1 vpc) |
| Short Circuit Protection Response Time | 200-500 µs |
|
CHARGE SPECIFICATIONS |
|
|---|---|
| Recommended Charge Current | 0.5 - 5 A |
| Maximum Continuous Charge Current | 10 A |
| Charge Current 32ºF to 14ºF (0 to -10 ºC) | ≤0.1 C (10 A) |
| Charge Current -4ºF to 14ºF (-20 to -10 ºC) | ≤0.05 C (5 A) |
| Recommended Charge Voltage | 14.2 V - 14.6 V |
| BMS Charge Voltage Cut-Off | 15.6 V (3.9 ±0.025 vpc) |
| (1.0 ±0.5 s) | |
| Reconnect Voltage | 15.2 V |
|
TEMPERATURE SPECIFICATIONS |
|
|---|---|
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature* | -4 to 113 ºF (-20 to 45 ºC) |
| Recommended Storage Temperature | 23 to 95 ºF (-5 to 35 ºC) |
| *Refer to charge currents below 0°C (32°F) | |
|
COMPLIANCE SPECIFICATIONS |
|
|---|---|
| Certifications | UKCA & CE (battery) |
| UN38.3 (battery) | |
| UL1642 (cells) | |
| IEC62133 (cells) | |
| Shipping Classification | UN 3480, CLASS 9 |
Typical Lithium Iron Phosphate Characteristics
