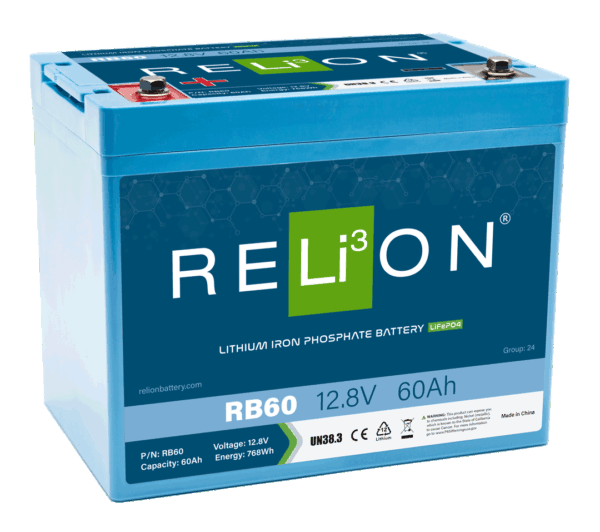

RB60 Lithium Deep Cycle Battery

12V 60Ah Battery

This 12V 60 Ah, Group 24 lithium iron phosphate battery is a safer, super lightweight alternative to lead-acid in your marine, solar RV, or other deep cycle applications. Coming in under 20 lbs, this battery is less than half the weight of a lead-acid equivalent and gives you more hours of consistent power. 60-amp hours of capacity means a full day of power for smaller-sized trolling motors or for a long day on the road in your RV.

RELiON lithium batteries provide more energy for high consumption than traditional lead-acid batteries. They also offer ultra-fast charging and discharging, high efficiency and longer cycle life – plus no maintenance! All RELiON Batteries use the safest and most stable components, including a LiFePO4 cathode and a built-in Battery Management System (BMS). The BMS ensures a long lifetime, safe handling – and high-accuracy State of Charge (SOC) calculations.

PRODUCT SPECIFICATIONS

• Voltage: 12.8V
• Amp Hours: 60Ah

DIMENSIONS & WEIGHT

• Length: 10.2 in (260 mm)
• Width: 6.6 in (168 mm)
• Height: 8.3 in (210 mm)
• Weight: 15.9 lbs (7.2 kg)

APPLICATIONS

• AWP
• Marine
• Recreational Vehicles
• Solar



DATA SHEET

 DOWNLOAD PDF

ELECTRICAL SPECIFICATIONS
Nominal Voltage	12.8 V
Nominal Capacity	60 Ah
Capacity @ 25A	144 min
Energy	768 Wh
Resistance	≤40 mΩ @ 50% SOC
Efficiency	99%
Self Discharge	<3% per Month
Maximum Batteries Connected in Series	3

MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)	10.2 x 6.6 x 8.2” (260 x 168 x 210 mm)
Weight	15.9 lbs (7.20 kg)
Terminal Type	M8 x 1.25
Terminal Torque	80 - 100 in-lbs (9 - 11 N-m)
Case Material	ABS
Enclosure Protection (Waterproof Rating)	IP66
Cell Type - Chemistry	Cylindrical - LiFePO4

DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current	60 A
Peak Discharge Current	140 A (1.5 s ±0.5 s)
Discharge Over-Current Protection	160 A (9 ms ±4 ms)
Recommended Low Voltage Disconnect	10.0 V
Discharge Under-Voltage Protection	9.3 V (2.325 ±0.1 vpc) (144 ms ±30 ms)
Reconnect Voltage	10.5 V (2.625 ±0.24 vpc)
Short Circuit Protection Response Time	100uS

CHARGE SPECIFICATIONS
Recommended Charge Current	12 A
Maximum Continuous Charge Current	60 A
Charge Current 14 to 36ºF (-10 to 0ºC)	≤0.1 C (10 A)
Charge Current -4º to 14ºF (-20 to -10 ºC)	≤0.05 C (5 A)
Recommended Charge Voltage	14.2 V - 14.6 V
BMS Charge Voltage Cut-Off	15.4 V (3.85 ±0.025 vpc) (1.2 s ±0.3 s)
Reconnect Voltage	14.5 V (3.62 ±0.05 vpc)
Balancing Voltage	14.4 V (3.6 ±0.025 vpc)

TEMPERATURE SPECIFICATIONS
Discharge Temperature	-4 to 140 °F (-20 to 60 °C)
Charge Temperature*	32 to 113 °F (0 to 45 °C)
Recommended Storage Temperature	23 to 95 °F (-5 to 35°C)
BMS High Temperature Cut-Off	167 °F (75 ºC)
Reconnect Temperature	122°F (50 ºC)

COMPLIANCE SPECIFICATIONS
Certifications	UN38.3 (battery)
	CE & UKCA (battery)
	UL1642 (cells) (File# MH64523)
	IEC62133 (cells)
Shipping Classification	UN 3480, CLASS 9
