Scanstrut SC-USB-F2 ROKK Dual USB Charger

Scanstrut ROKK Charge Dual Waterproof USB Socket (SC-USB-F2)

The Scanstrut SC-USB-F2 (ROKK Charge) is an ultra-rugged, waterproof dual USB charger designed for marine, commercial, and outdoor off-road environments. Engineered to deliver fast charging on 12 V or 24 V DC battery systems, it features both a USB Type-A and a high-speed USB Type-C output port, serving phones, tablets, and handheld marine electronics at maximum charging rates.

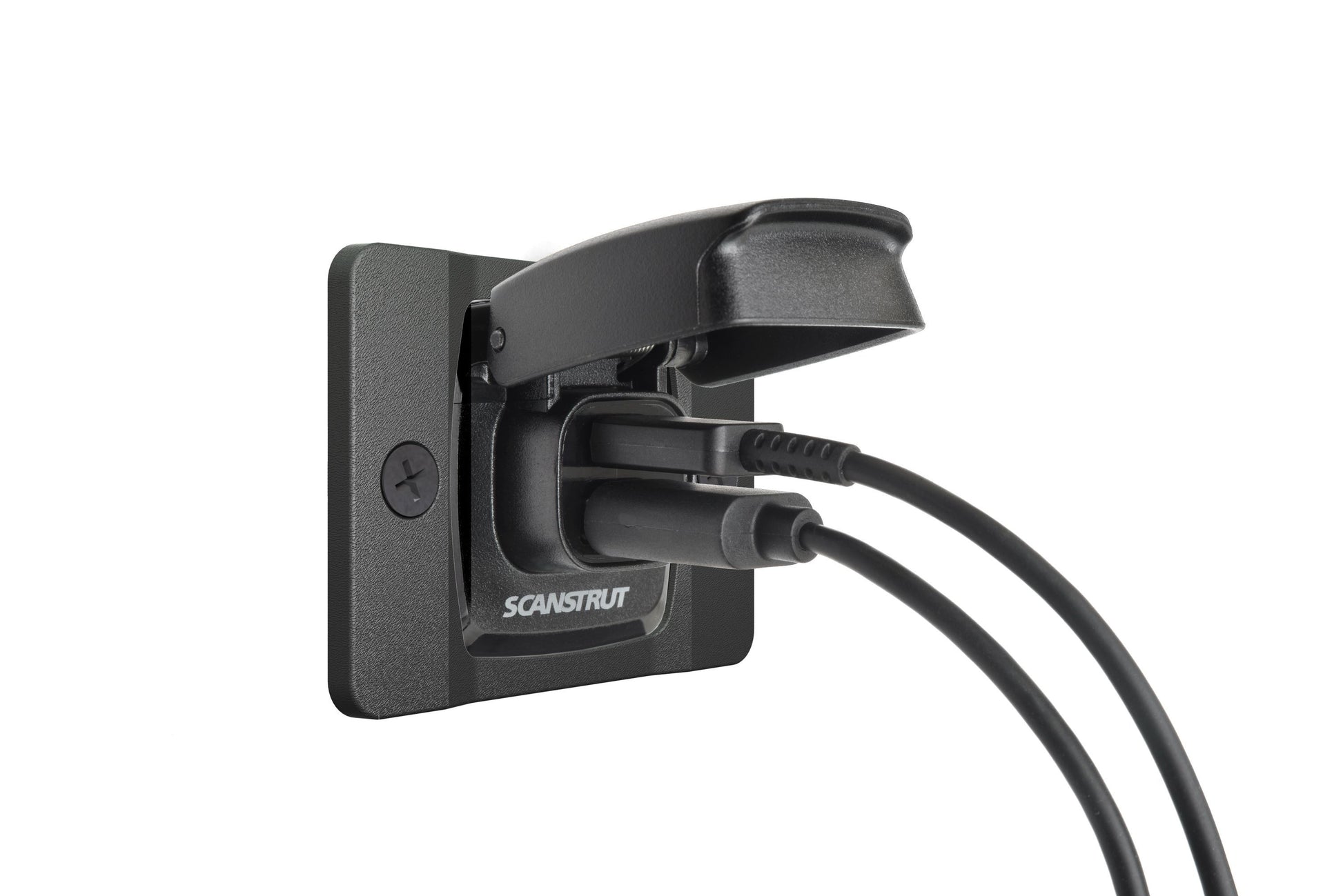

Built to withstand heavy weather, spray, and washdowns, the SC-USB-F2 features an IPX6 waterproof rating both when the protective spring-loaded cover is closed and when cables are actively plugged in. Its compact, ultra-low profile footprint installs into standard 29 mm (1 1/8") dashboard cutouts or panel openings, using anti-corrosive materials and a conformal-coated PCB to protect against salt corrosion and thermal overloading.

Key Features

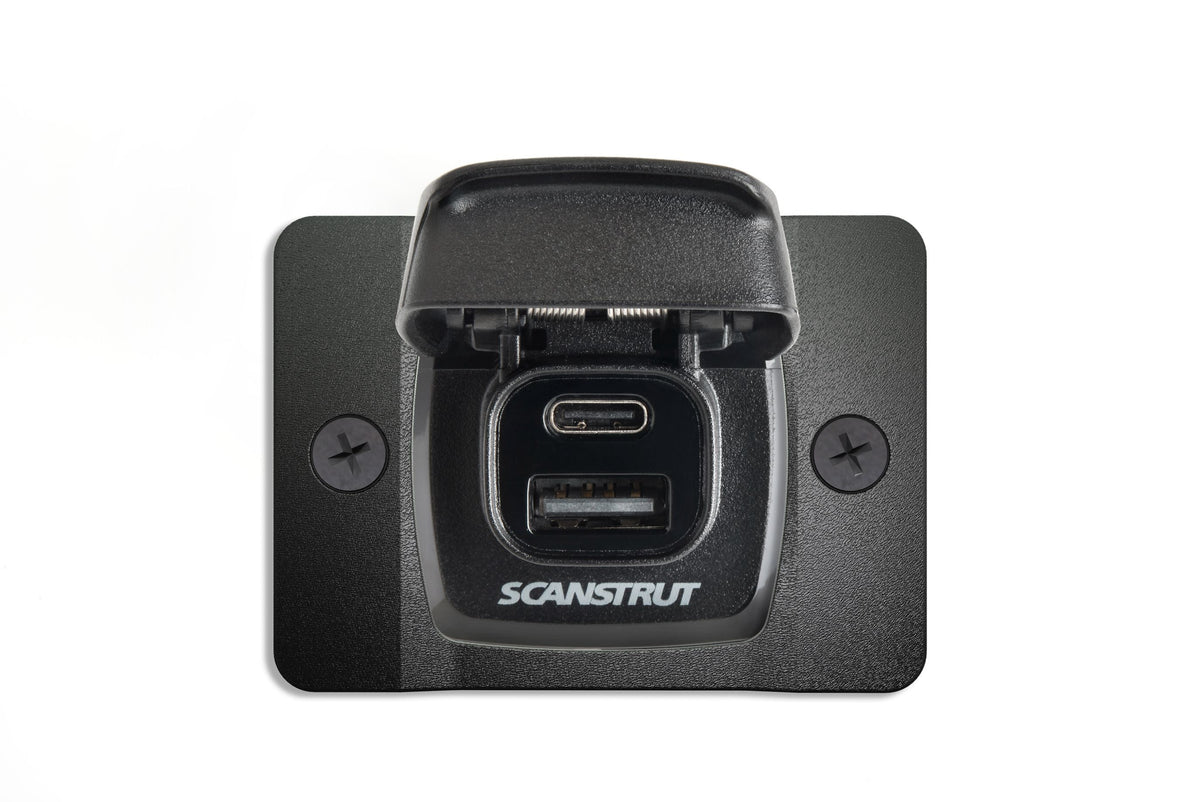

• Dual USB-A & USB-C Ports: Provides simultaneous high-speed charging via 1 * USB Type-A and 1 * USB Type-C connection ports.

• IPX6 Waterproof (Closed & In-Use): Designed with internal hydrophobic seals to maintain IPX6 water resistance even while cables are plugged in.

• Universal 12V / 24V DC Input: Operates across both 12 V DC and 24 V DC nominal boat battery systems without needing external step-down converters.

• Fast Charge Capabilities: Delivers up to 36 W total power output (3 A max output on USB-C / 2.4 A on USB-A) with built-in smart device recognition.

• Standard Panel Cutout Installation: Drops into standard 29 mm (1 1/8") diameter mounting holes for easy drop-in replacement of legacy 12V cigarette lighter sockets.
