Scanstrut DS16-S Stainless Steel Mini Deck Seal 2-8mm

canstrut Mini Deck Seal - Stainless Steel (DS16-S)

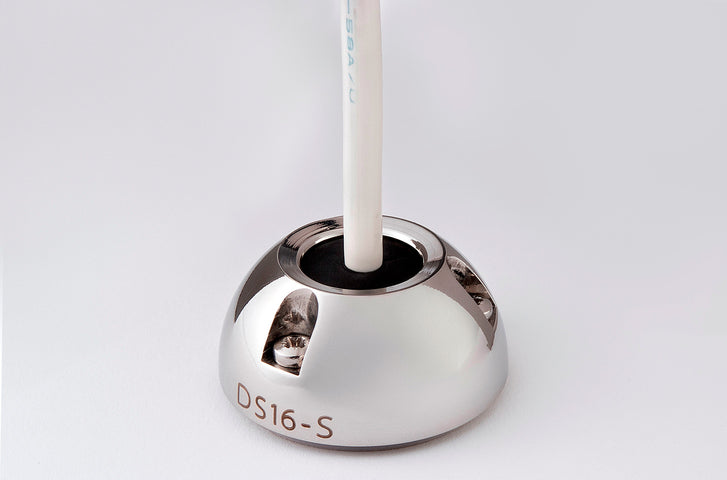

The Scanstrut DS16-S is an ultra-compact Mini Cable Deck Seal featuring a polished 316 Marine-Grade Stainless Steel top cover, engineered to provide an IP68 100% waterproof cable pass-through across decks, cabin tops, transoms, and bulkheads. Designed specifically for smaller electronic leads, it accommodates pre-fitted factory cable connectors up to ∅ 16 mm (0.63") and cable diameters ranging from 2 mm to 8 mm (0.08" to 0.35"), eliminating the need to cut factory connectors during installation.

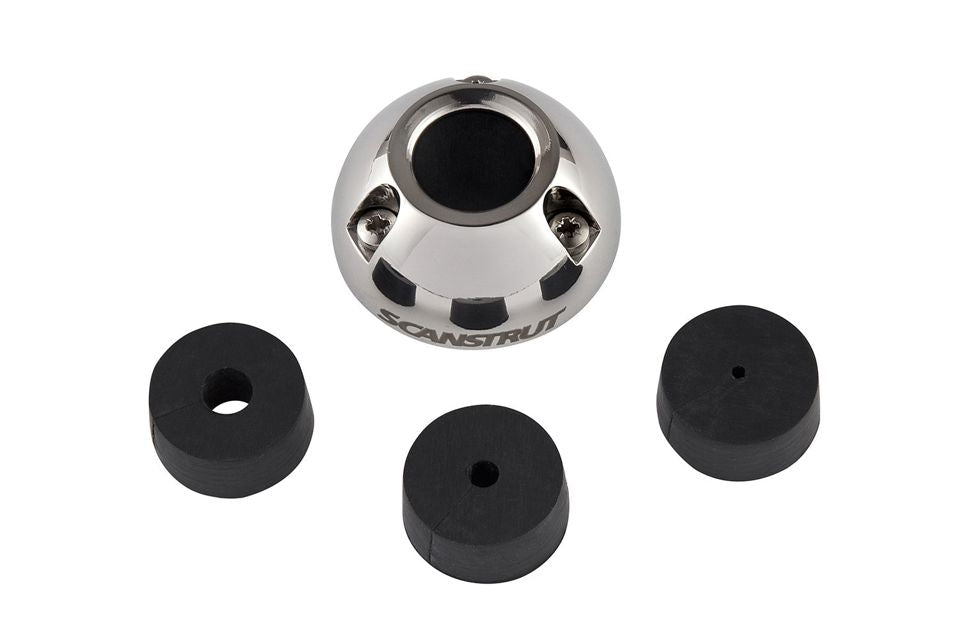

Constructed with a heavy-duty 316 stainless steel outer shell and a high-impact base plate, the DS16-S features Scanstrut's split-seal rubber bung system. The pre-drilled, split neoprene bung allows cables to be positioned into the seal without removing factory-molded plugs. When the top cap is tightened, the bung compresses uniformly around the cable outer jacket to form an impenetrable seal against high-pressure washdowns and heavy sea spray.
