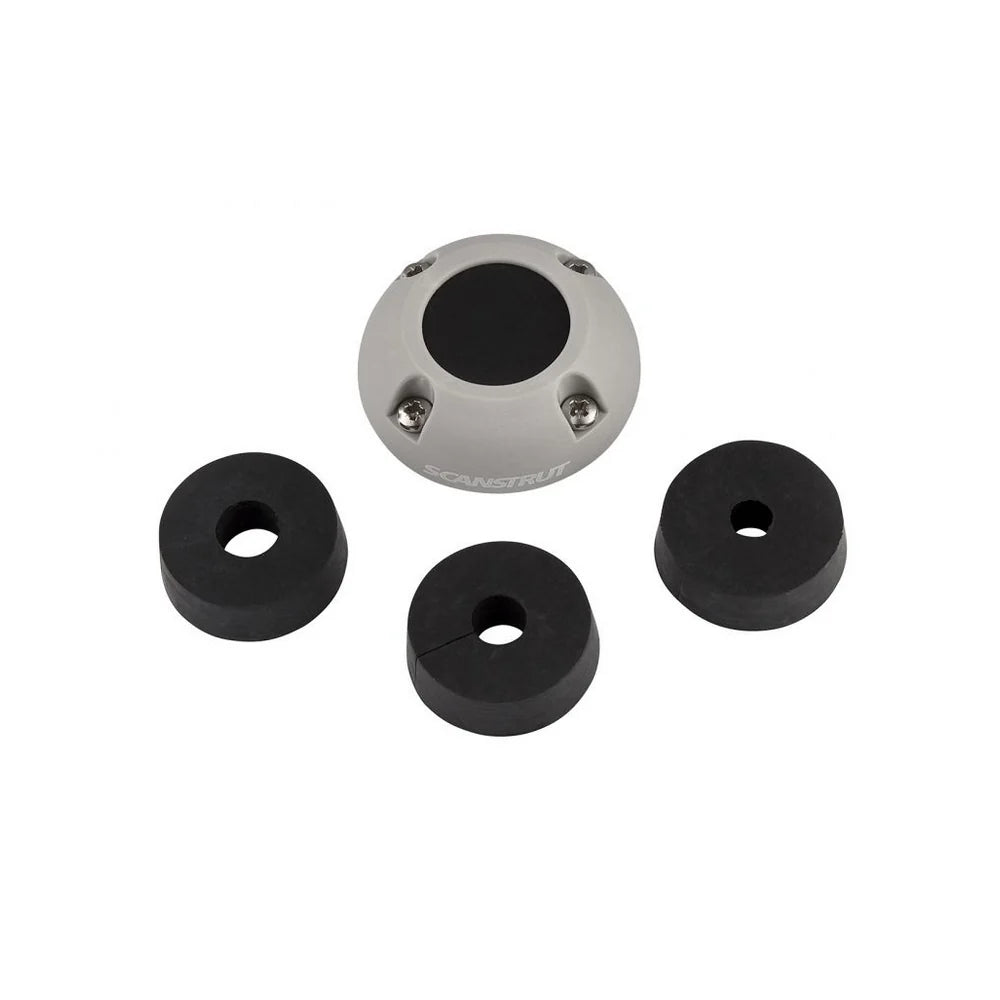

Scanstrut DS30-P Medium Deck Seal 9-14mm

Scanstrut DS30-P Medium Deck Seal (DS30-P)

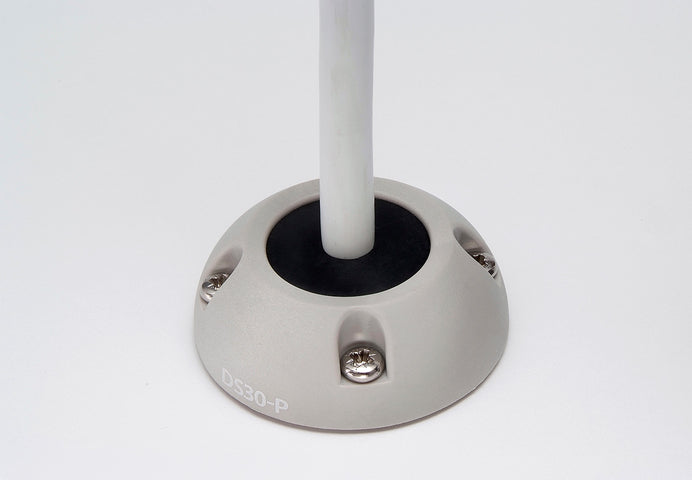

The Scanstrut DS30-P is a high-grade, waterproof medium plastic deck seal engineered to pass pre-routed marine electronic cables through decks and bulkheads without removing factory-installed connectors. Designed to accommodate cable diameters from 9mm to  14mm (0.35" to 0.55") and connector heads up to ∅ 30mm (1.18"), it provides a 100% watertight seal for radar, satellite antenna, sonar, and VHF installations.

Molded from high-strength, UV-stabilized impact-resistant plastic, the DS30-P features a tapered bung system and an integrated captive nut assembly for easy, single-person installation. Rated to IP68, its dome-shaped design deflects impacts and sheds water continuously, eliminating messy silicone sealant application on decks.

Key Features

• Passes Pre-Terminated Cables: Generous internal clearance allows connectors up to ∅ 30mm to pass through without cutting or re-soldering factory cable ends.

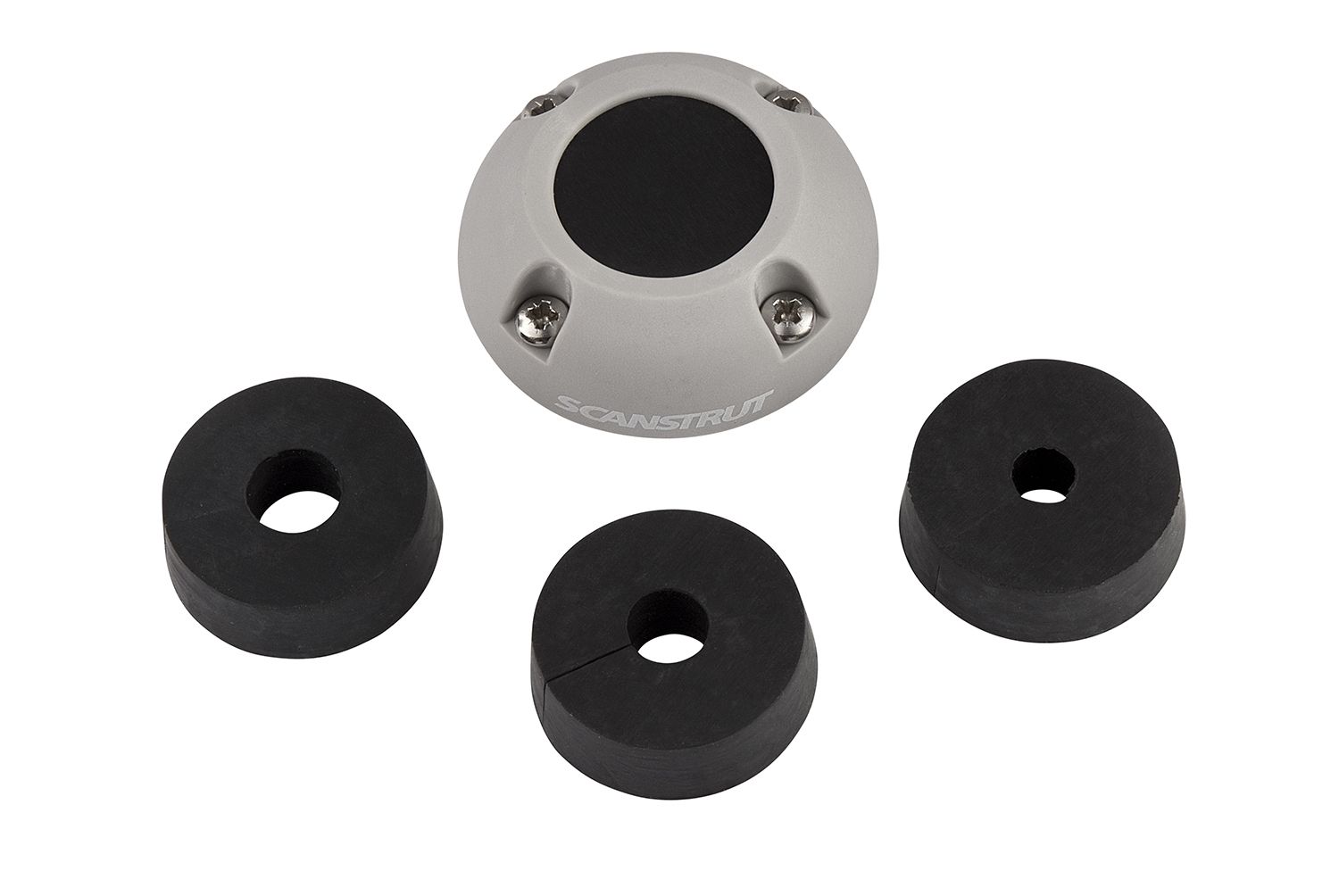

• IP68 Watertight Protection: Pre-drilled and un-drilled split-bung system creates a pressure-tight seal around cables.

• Silicone-Free Installation: Engineered elastomeric rubber seal eliminates the need for mess-creating wet silicone sealants.

• Impact-Resistant Domed Profile: Low-profile domed shape resists accidental foot-strikes, snags, and heavy wave impacts.

• Captive Nut Assembly: Features brass captive nuts embedded in the base for easy mounting and repeated disassembly without stripping threads.
