Scanstrut SC-CW-01F ROKK Hidden 10W Wireless Charger

Scanstrut ROKK Wireless "Hidden" 10W Sub-Surface Charger

The Scanstrut SC-CW-01F is a commercial-grade, fully encapsulated 10W sub-surface inductive Qi wireless charger designed for invisible installation beneath non-metallic surfaces. Engineered for harsh marine and mobile environments, it mounts underneath fiberglass (GRP), wood, or composite counters, tables, and helm consoles, leaving the top surface completely clutter-free while transmitting inductive charge through up to 3 mm (0.12") of material.

Operating on 12V or 24V DC battery networks, the unit features an internal thermal management system and foreign object detection (FOD) to optimize power delivery to power-hungry smartphones without triggering phone heat cutouts. Housed in a fully potted IPX6 waterproof housing, it provides a completely sealed charging station that requires no sealant during installation.

Key Features

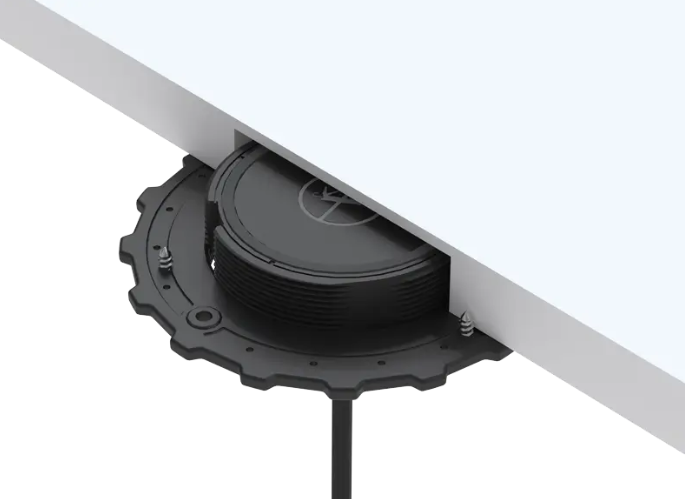

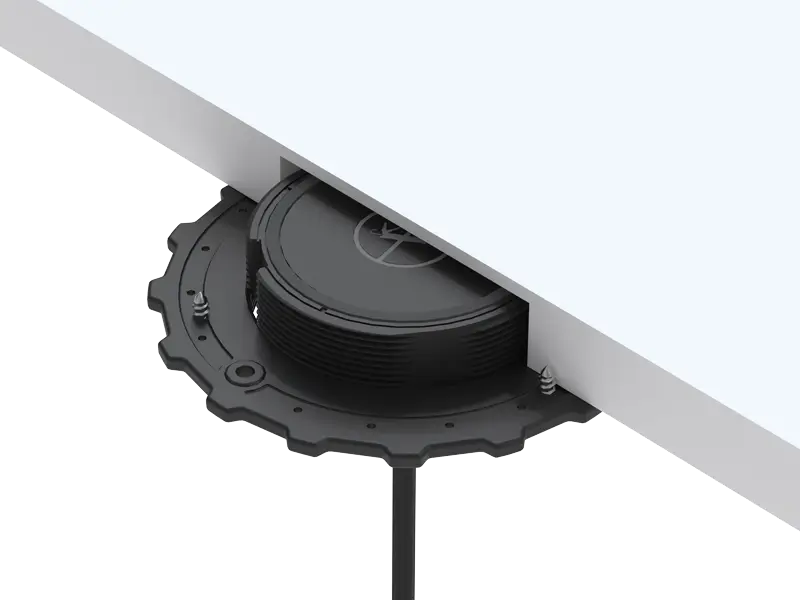

• Hidden Sub-Surface Mounting: Mounts beneath wood, plastic, or GRP, charging directly through the surface material (pocket routed to 3 mm remaining thickness).

• 10W Qi-Certified Fast Charging: Delivers up to 10W (9V, 1.1A) output for fast, cable-free device charging.

• IPX6 Waterproof Rating: Fully encapsulated electronics unit withstands heavy sea spray, hose-downs, and spilled liquids.

• Direct 12V/24V System Integration: Connects straight into 12V or 24V DC power distribution buses (10-30V DC input range).

• Foreign Object & Thermal Protection: Built-in safety logic prevents charging when metal objects are detected and adjusts current to control battery thermals.
