Simrad QS80 Quick-Stick Steering Lever 000-10184-001 Specs

Simrad QS80 Quick-Stick Steering Lever

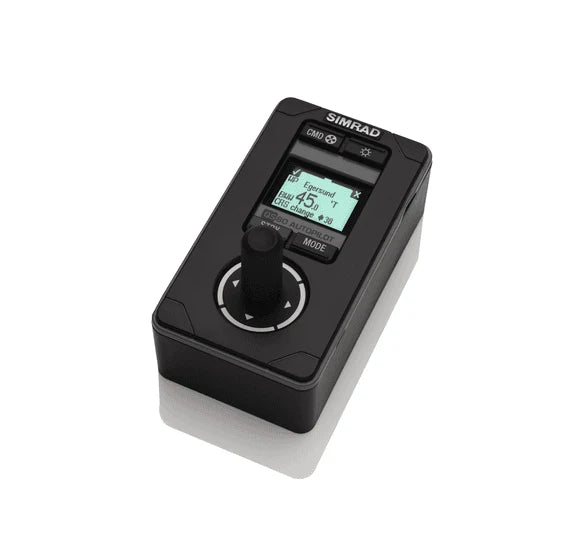

The Simrad QS80 (Part Number: 000-10184-001) is an ergonomic, Non-Follow-Up (NFU) spring-return joystick remote unit designed for marine autopilot systems, including Simrad AP70, AP80, AP44, and IS42 installations. Built to withstand commercial and heavy recreational vessel environments, it allows helmsmen to control helm angle and autopilot modes directly from a armrest, wing station, or central console.

Featuring a spring-to-center joystick lever, moving the quick-stick port or starboard commands the rudder to move in real-time until released, at which point the lever automatically snaps back to center and holds the current course heading. The unit integrates a high-contrast monochrome display, dedicated command-takeover (CMD) button, mode selection keys, and NMEA 2000 Micro-C networking for plug-and-play installation.

Key Features

• Spring-Return Joystick Operation: Offers proportional joystick response—deflecting the lever drives the rudder in real-time for rapid avoidance maneuvers or tight docking maneuvers.

• Integrated LCD Display: Built-in monochrome screen displays current rudder angle, active autopilot mode, and vessel heading data.

• Multi-Station Command Transfer: Dedicated CMD (Command) button enables seamless transfer of helm control between multiple bridge, flybridge, or wing stations.

• NMEA 2000 Micro-C Connectivity: Connects directly into the vessel's NMEA 2000/CAN bus network for power and data transmission.

• Versatile Mounting Options: Designed for desktop flush mounting, armrest installation, or bulkhead bracket mounting.

Specifications
