Simrad 000-10947-001 Dual StructureScan Bronze Thru-Hull Kit with Y-Cable

Simrad / Lowrance Dual StructureScan HD Bronze Thru-Hull Transducer Kit

The 000-10947-001 is a complete high-definition sonar transducer kit designed for boats with steep deadrise angles, stepped hulls, or deep-V keels where a single center-mounted transducer cannot maintain an unobstructed view to both sides of the vessel.

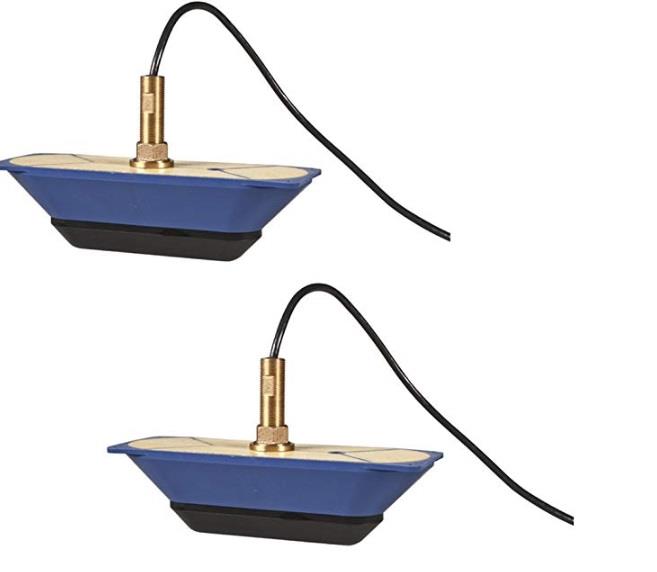

This system combines two (2) low-profile bronze thru-hull StructureScan HD transducers (Port and Starboard) with an OEM dual-transducer Y-cable (000-10202-001). By placing one transducer on each side of the keel, the Y-cable merges the port-side element from the left transducer and the starboard-side element from the right transducer into a single unified 9-pin output feed for the StructureScan HD module, NSS, NSO, or HDS sonar systems, completely eliminating keel-shadow distortion.

Key Features

• Zero Keel-Shadowing: Dual-transducer setup fires port imaging from the port transducer and starboard imaging from the starboard transducer, bypassing deep keels and prop shafts.

• SideScan & DownScan HD Imaging: Combines 455 kHz and 800 kHz high-frequency crystal arrays to produce photo-like underwater structure maps.

• Rugged Heavy-Duty Bronze Housings: Engineered for wooden or fiberglass hull materials; resists marine growth and mechanical shearing forces at high cruising speeds.

• Custom Fairing Blocks Included: Precision-cut fairings ensure flush alignment with water flow and compensate for steep hull deadrise angles.

Specifications
