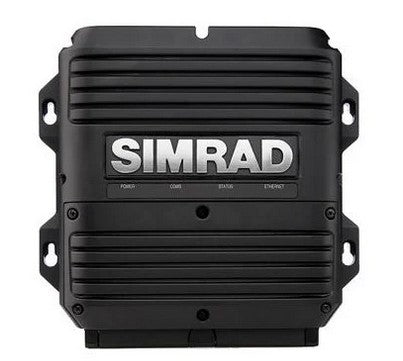

Simrad RI-12 HALO Radar Interface Module

The Simrad RI-12 (Part Number: 000-11467-001) is an essential below-deck radar interface box and power distribution unit engineered specifically for Simrad HALO series open-array solid-state radar systems (including HALO-3, HALO-4, and HALO-6 pedestals).

Acting as the central junction box between the vessel's electrical grid, multi-function displays (MFDs), and the antenna pedestal, the RI-12 manages heavy DC current demands, processes antenna park-position sensor data, and routes high-speed Ethernet radar image data over standard Navico yellow Ethernet cabling. It also features remote power-on control via yellow ignition/power-control wires or Ethernet link synchronization.

Key Features

  • Central Power Management: Safely regulates DC power feed to the HALO pedestal, protecting sensitive electronics against voltage spikes and brownouts.

  • Integrated Ethernet Hub: Converts raw pedestal signal output to standard Ethernet protocols for distribution to Simrad NSS, NSO, and GO series MFDs.

  • Antenna Parking Control: Processes park-position signals to ensure the open-array antenna stops at a predefined angle when powered down.

  • Diagnostic LED Array: Features onboard status LEDs (POWER, COMM, STATUS, ETHERNET) for quick system troubleshooting.

  • Water-Resistant Enclosure: Durable plastic housing designed for bulkhead surface mounting in dry or semi-protected machinery spaces.

Specifications

Feature Specification
Manufacturer / Brand Simrad Marine Electronics (Navico Group)
Part Code / SKU 000-11467-001
Compatible Radar Pedestals Simrad HALO-3, HALO-4, HALO-6 Open-Array Series
Operating Voltage 12 V DC / 24 V DC Nominal (10.8 V  to  31.2 V DC Range)
Current Consumption Max 150 W - 225 W (Dependent on array size and rotation speed)
Recommended Fuse / Breaker 15 A @ 24 V / 30 A @ 12 V
Data Connections 1* Heavy-Duty Pedestal Multi-Cable Gland, 1* RJ45/Navico Yellow Ethernet Port
Control Connections Yellow Power Control Wire (Ignition / Bus Switchable)
Ingress Protection Rating IPX2 (Surface/Bulkhead Indoor Mount)
Operating Temperature -15°C to +55°C
Dimensions ($W \times H \times D$) 210 mm * 180 mm * 60 mm (8.3 in * 7.1 in * 2.4 in)
Weight Approx. 0.8 kg (1.76 lbs)
Compliance / Approvals CE, FCC, RCM (Australia/NZ), RoHS
