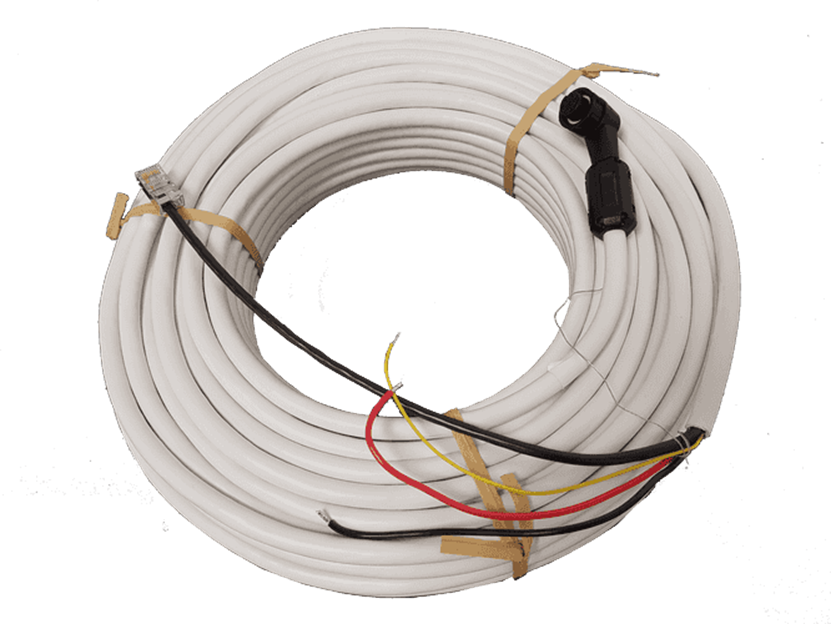

Simrad AA010092 20m Cable for TX06S 6kW Radar

Simrad AA010092 20m Interconnect Cable for TX06S 6kW Radar

The Simrad AA010092 is a 20-meter (66 ft) heavy-duty marine radar interconnect cable specifically engineered to connect the Simrad TX06S 6kW pulse open array radar scanner to its corresponding radar processor (such as the RI10 or RBL10 interface module) or direct display processor.

Designed to accommodate long cable runs from flybridges, arches, and tuna towers down to helm electronics lockers, the AA010092 combines high-current DC power supply leads with double-shielded video and trigger signal lines inside a rugged, weather-resistant outer jacket. The pedestal end features a factory-molded, water-tight multi-pin connector with a heavy locking collar, while the display/processor end breaks out into tinned power leads and high-speed data connections to ensure low-loss transmission over its full length.

Key Features

• Low-Loss High-Power Conductors: Heavy-gauge internal DC power lines minimize voltage drop across the 20 m run during peak 6kW magnetron transmission pulses.

• Double-Shielded Signal Isolation: Multi-layer braid and foil shielding isolate high-frequency video target return and trigger lines from engine noise and onboard RF interference.

• IPx7 Scanner Interface: Molded round multi-pin scanner connector features an internal rubber sealing gasket and threaded locking ring to resist severe mast-top weather and washdowns.

• UV & Marine-Grade Outer Jacket: Flame-retardant, oil-resistant white PUR jacket designed to withstand continuous UV radiation and chemical exposure on open arches and masts.

Specifications
