Simrad AA010150 AT40 SimNet to NMEA 0183 Converter

Simrad AA010150 AT40 SimNet to NMEA 0183 Converter

The Simrad AT40 (AA010150) is a bi-directional data interface module designed to bridge Simrad's SimNet (NMEA 2000 CAN-bus) network architecture with serial NMEA 0183 marine instruments. It enables seamless data translation between modern SimNet/NMEA 2000 autopilots, instruments, and chartplotters and legacy or specialized NMEA 0183 sensors, VHF radios, DSC systems, GPS receivers, and heading sensors.

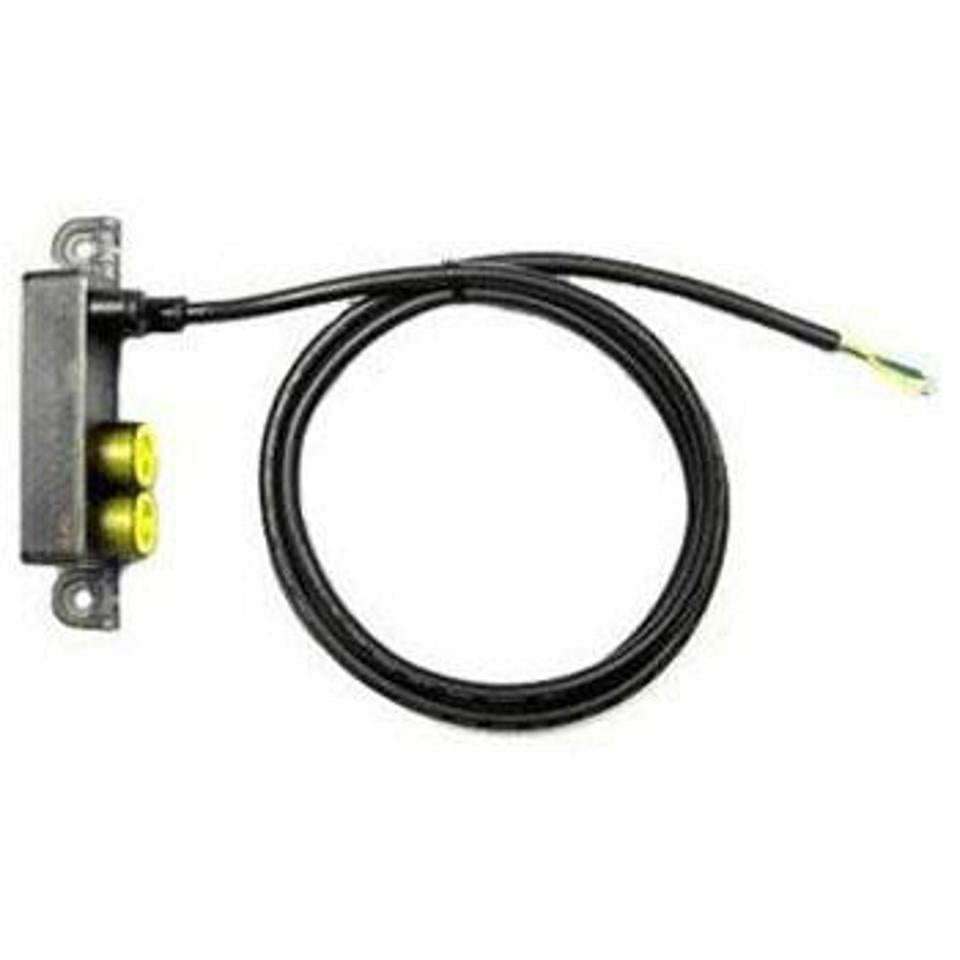

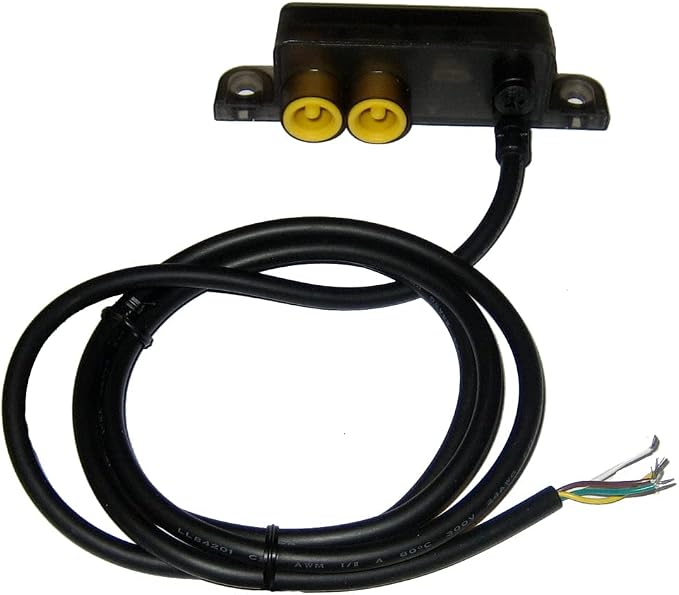

The module features a yellow inline SimNet connector for direct plug-and-play insertion into a SimNet backbone or multi-joiner port, while the opposite side provides a cable harness with stripped leads for RS-422/RS-232 NMEA 0183 differential serial wiring. The AT40 automatically translates parameter group numbers (PGNs) into standard NMEA 0183 sentences (such as HDG, MWV, VHW, and POS) at 4800 baud without requiring external software programming or configuration.

Key Features

• Bi-Directional Protocol Translation: Converts SimNet (NMEA 2000 PGNs) data to NMEA 0183 sentences and vice versa in real time.

• Plug-and-Play Integration: Powered directly through the SimNet bus (12V DC) with no external power supply or setup switches required.

• Standard 4800 Baud Rate: Pre-configured for standard marine NMEA 0183 navigation instruments (4800 baud, 8 data bits, 1 stop bit, no parity).

• Compact Inline Form Factor: Molded IPx6 enclosure can be bulkhead-mounted or stowed in tight wiring chases behind helm consoles.

• Opto-Isolated Input: Features opto-isolated NMEA 0183 input line to eliminate ground loops and prevent electrical interference between separate battery banks.

Specifications
