Simrad NMEA 2000 Starter Kit Specs (000-0124-69)

Simrad NMEA 2000® Micro-C Starter Kit (000-0124-69)

The Simrad NMEA 2000 Starter Kit (PN: 000-0124-69) provides all the core infrastructure hardware required to establish a high-speed CAN-bus marine data network on vessels. Designed around standard Micro-C 5-pin connectors, it allows chartplotters, multifunction displays (MFDs), engine interface gateways, autopilots, GPS antennas, and marine sensors to share real-time operational data across a unified backbone.

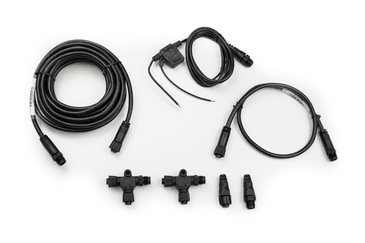

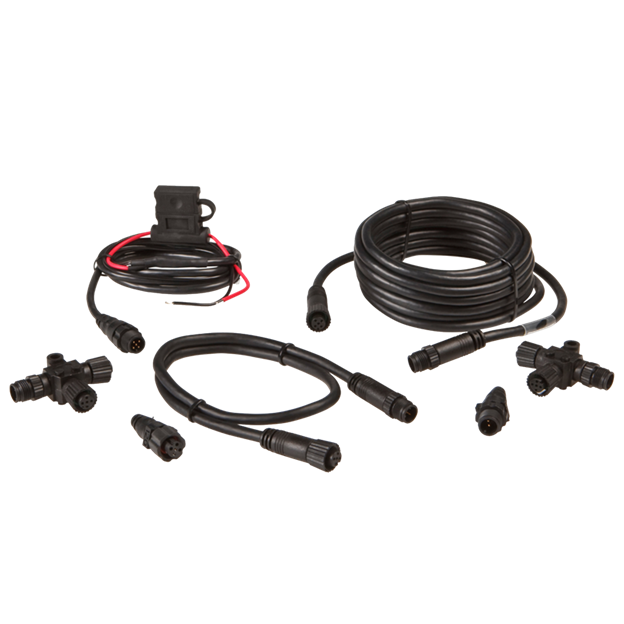

Compatible across all Navico brands (Simrad, Lowrance, and B&G) as well as third-party NMEA 2000 devices (Garmin, Raymarine via DeviceNet, Fusion, etc.), the kit includes a fused DC power node, two backbone/drop cables, two T-connectors, and two $120\,\Omega$ end-of-line network terminators.

Key Features

• Complete Network Foundation: Includes all hardware necessary to build a 2-device NMEA 2000 backbone out of the box.

• Universal Micro-C Standard: Uses industry-standard 5-pin M12 threaded connectors with gold-plated contacts.

• Fused Network Power Node: Supplies isolated 12V DC power to the network bus with inline fuse protection.

• Expandable Topology: Easily add extra instruments by daisy-chaining additional Micro-C T-connectors and drop cables.

• IP67 Waterproofing: Built with fuel- and oil-resistant cabling designed to withstand humid engine rooms and bilge environments.
