Simrad

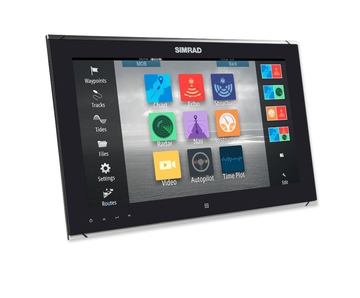

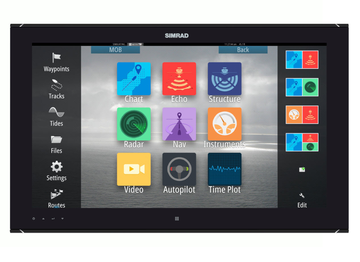

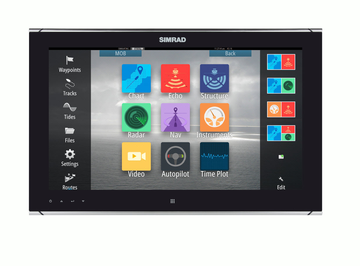

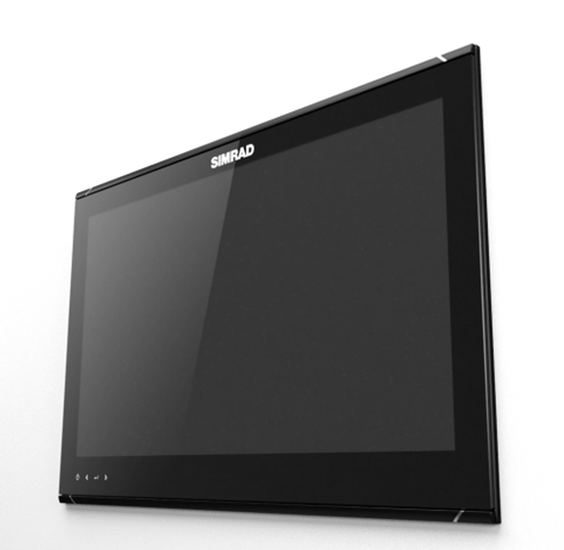

Simrad MO16-T. 16/19/24"Widescreen High bright, multi-touch monitor

Simrad MO16-T. 16/19/24"Widescreen High bright, multi-touch monitor

Regular price USD $3,399.00 USD
Regular price Sale price USD $3,399.00 USD
Sale Sold out
Shipping calculated at checkout.
Select Screen Size

MO16-T. 15.6/19/24 "Widescreen High bright, multi-touch monitor.

High Definition 1366x768 resolution. 1000 nit brightness. Inputs: HDMI, DVI, Composite Video (x2). N2K connectivity for Simrad backlight control. Excludes video cable and touch control cable. 000-11260-001

Key Features

  • Low Profile Glass Bridge Design
  • More Screen, Less Border
  • Widescreen Displays, HD Resolutions
  • Touch/Non-Touch Option
  • High Bright Backlight Option
  • Picture in Picture
  • On-Glass Menu Keys
  • VESA bracket Mounting Option
  • IP66 in Dash Mounting
  • Suitable for any monitor application (not limited to Simrad)

High Def. Widescreen Displays

  • Higher Definition LCD panels enable more information to be presented on the display
  • For a defined chart zoom level, user can see a larger area of chart in full detail
  • For an echo sounder panel, more vertical pixels means more vertical resolution and target detail in the water column
  • Wide LCD format makes more effective use of boat dashboard space
  • Widescreen aspect ratios give more usable panel shapes in split modes
Enclosure ABS Plastic Rear Case, Glass Front
Operating Temperature -15°C to +55°C
Non-Operating Temperature -20°C to +60°C
water ingress IPx6 (When dash mounted), IPx2 from back
Weight 3.60Kg/4.60Kg/7.04Kg
dimensions (WxHxD)mm 400 x 260 x 74 / 478 x 305 x 74 / 625 x 386 x 74
Display Brightness 1000nit
Display Resolution 1366 x 768 / (1920 x 1080 - 24" model)
Display Viewable Area (WxH)mm 344 x 194 / 410 x 230 / 532 x 299
Display Colour Depth 16.7 Million Colours
Display Viewing Angle H/V deg 60/60/60/60
Contrast Ratio 500:1 / 1000:1 / 5000:1

"Touch Screen - Projected

Capacitance Multi Touch Yes"
Operating voltage 10 - 31.2 V DC / 12 - 31.2 V DC / 14 - 31.2 V DC
Power consumption (nominal) 20W / 25W / 60W
Low power standby mode Yes
Protection reverse polarity and temporary over-voltage to 36V
Conformity CE, C-Tick, HDMI
Power and Setup Keys Capacitive Touch - Power Key, Up, Enter, Down, Home

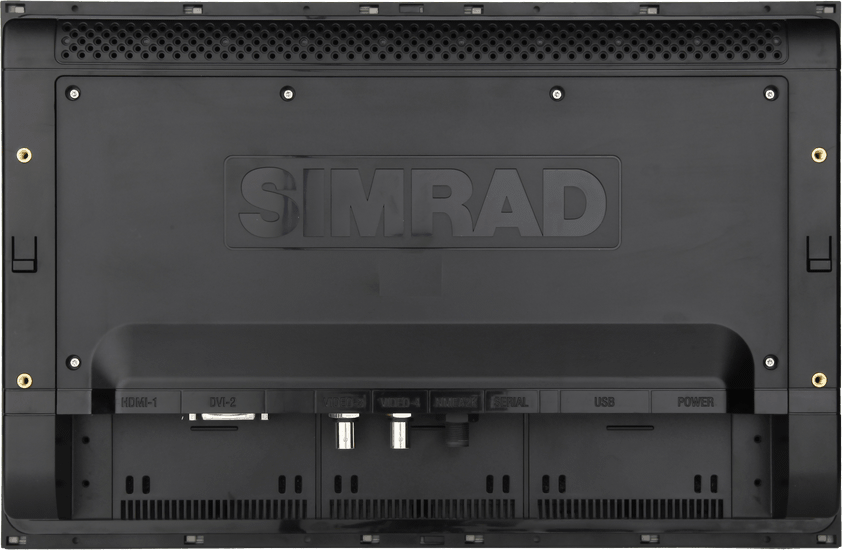

NMEA 2000 1 port on rear (Micro-C male)
Composite Video inputs 2 ports on rear (BNC female. NTCS or PAL format)
Digital Video Inputs 2 ports on rear (1 x DVI-D, 1 x HDMI)
Supported Video Resolutions 640x480(VGA 4:3), 800x600 (SVGA 4:3), 1024x768 (XGA 4:3), 1280x720 (HD 16:9), 1280x800 (16:10), 1280x1024 (SXGA 5:4),1366x768 (WXGA), 1920x1080 (Full HD 16:9), 1920x1200(WUXGA 16:10)
USB USB Type-B Plug on rear for alternate touch screen connection
Serial 4 way serial plug on rear for touch screen connection via RS422 to NSO evo2
Picture in Picture Yes, Variable size and position
Thermal Protection Automatic - Backlight reduced to 10%
Menu Languages English, French, German, Spanish, Italian, Portuguese



000-0119-79

N2K-T-RD T

N2K-T-RD - Micro-C T-connector for connection of an additional network device

000-0127-53

N2KEXT-6RD

N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable for backbone extension or drop cable to connect an additional network device

000-11614-001

MO16/19/24 CABLE RETENTION BRKT

MO16/19/24 CABLE RETENTION BRKT

000-11618-001

MO16/19/24,REAR MNT BRACKET KIT

MO16/19/24,Rear mount bracket kit. Includes: dash seal for 16,19,24" and Bracket kit

000-11620-001

MO16 Bezels

MO16 BEZELS,SILVER & BLACK,2PCS EACH

000-11625-001

MO16/19/24 CONNECTORS KIT

MO16/19/24 CONNECTORS KIT
