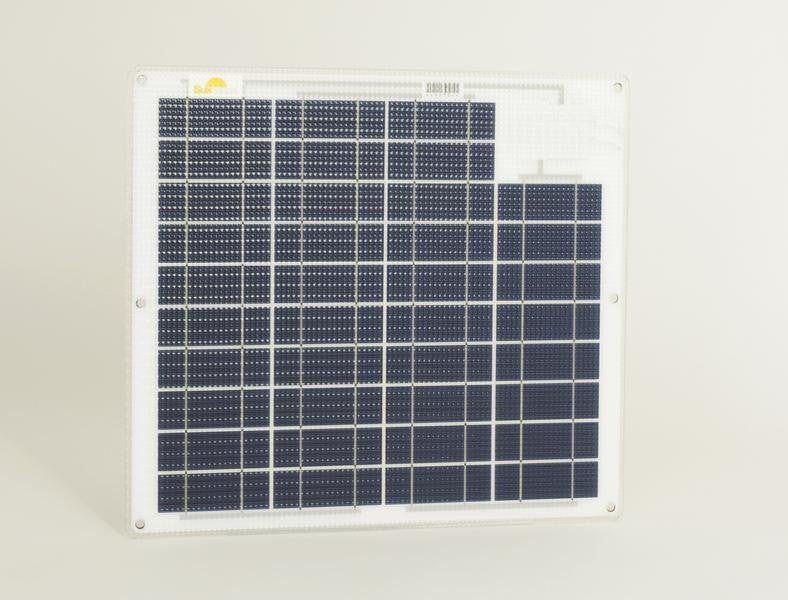

SunWare - Solar Panel Series-40 SW 40164 38 Wp
The solar module SW 40164 is designed for medium-sized solar systems. The 38Wp module is designed for 12V systems, but can be used for serial connection at 24V systems. Depending on the irradiation, the module supplies a charging current of up to 1,92A.
Often used to trickle charge the battery and is mounted on the sliding hatch. Ideally suited for a berth without electricity.

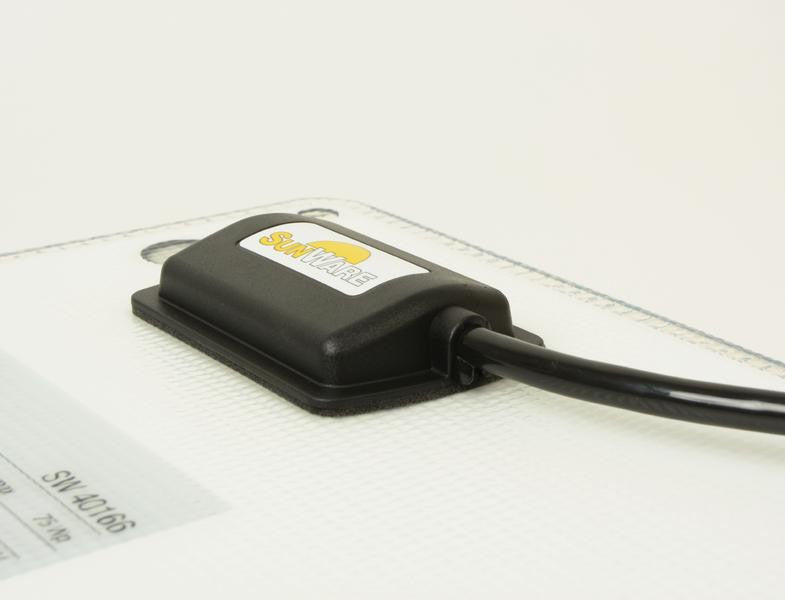

Cable outlet on the rear side of the module.
The average daily yield (May to September):
- North/Baltic Sea area is about 4 x 1.92 => 7.5Ah/day
- Mediterranean, Caribbean or California => 9.5Ah/day.
- 38.0 Wp Power
- 1.92 A max. charging current
- 8-10 Ah daily yield
- 599.0 x 481.0 x 6.0 mm
- 10 screw rosettes white
- incl. cell-protector( ...read more)

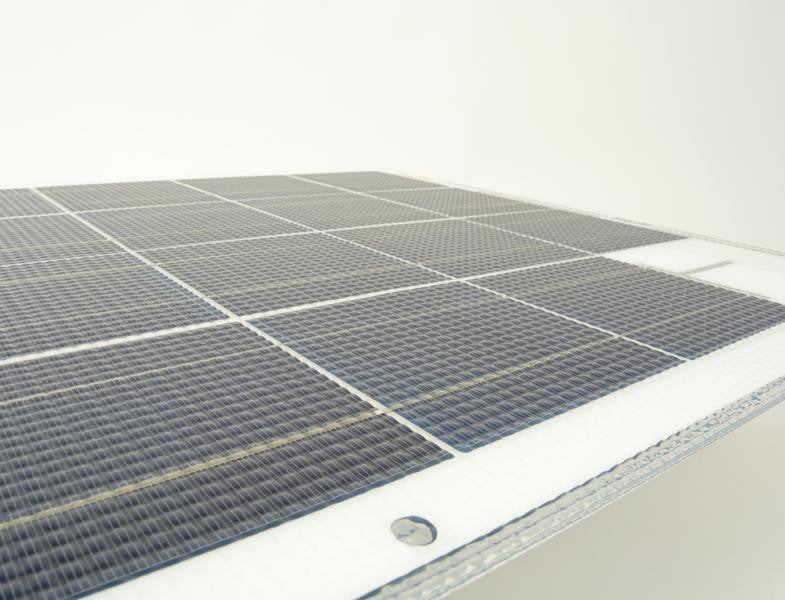

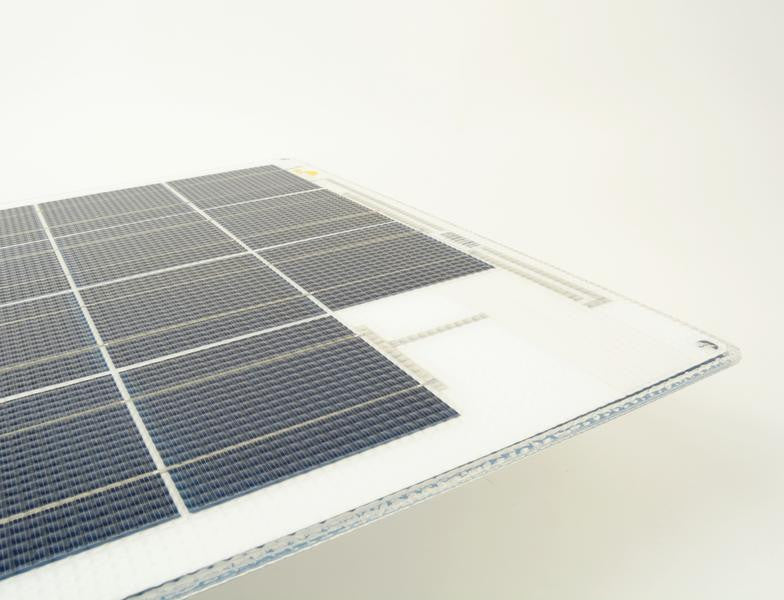

The modules of the series-40 are significantly lighter, more compact and more powerful become compared to previous models. The high-performance solar cells are protected in an EVA laminate and ETFE coatings against weathering. Even in diffused light conditions or even in winter, the modules produce a high charging current.

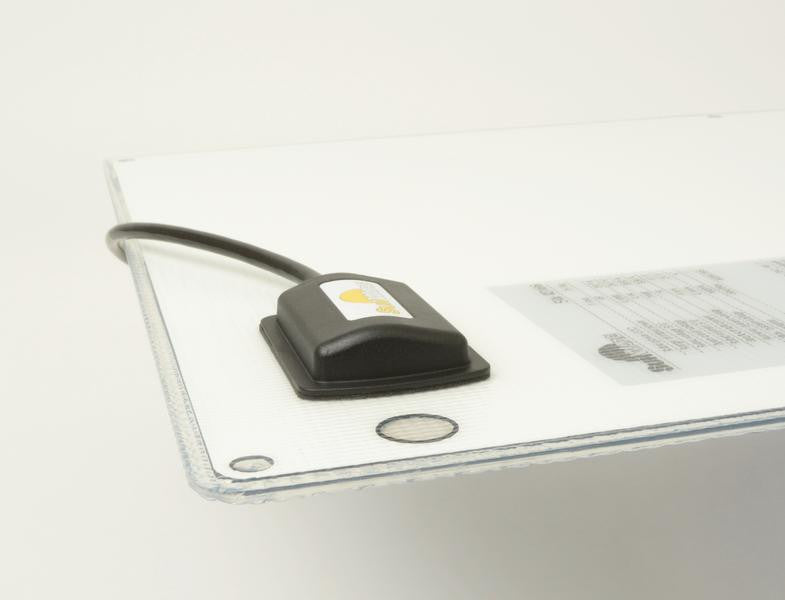

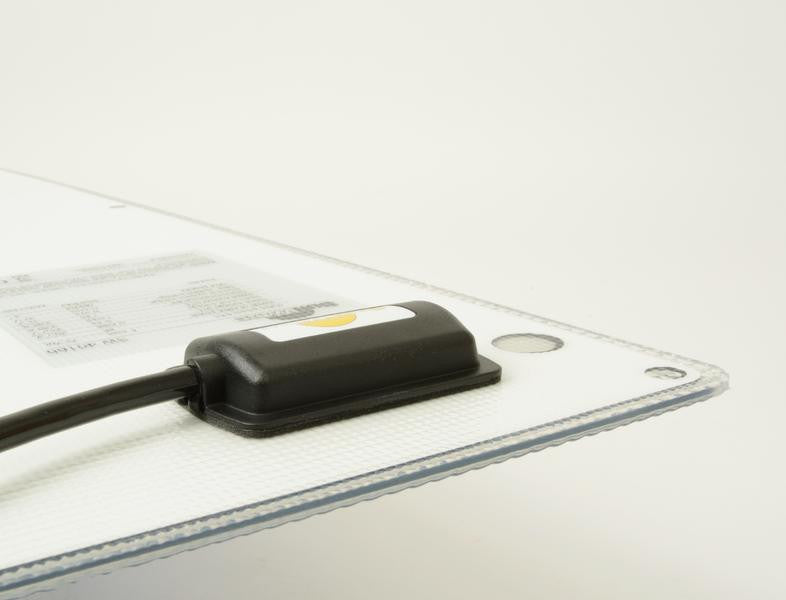

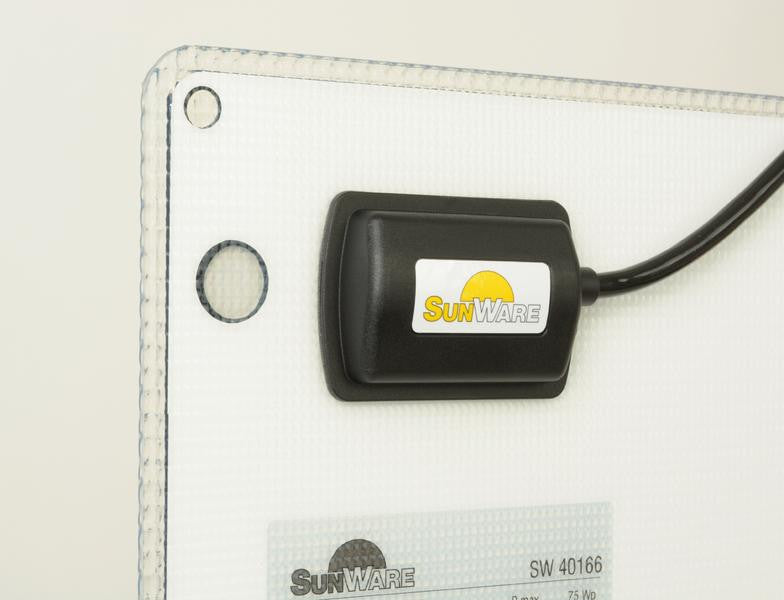

The modules of the series-40 have a rear cable outlet. It should be noted that for the junction box on the back of the module, a recess in the substrate must be present.
Ideally, the modules should be bonded to the substrate, so that the front side remains completely flat. If the modules should be screwed, inside the package are white screw rosettes for countersunk screws. This prevents a damage to the laminate by the screw head.

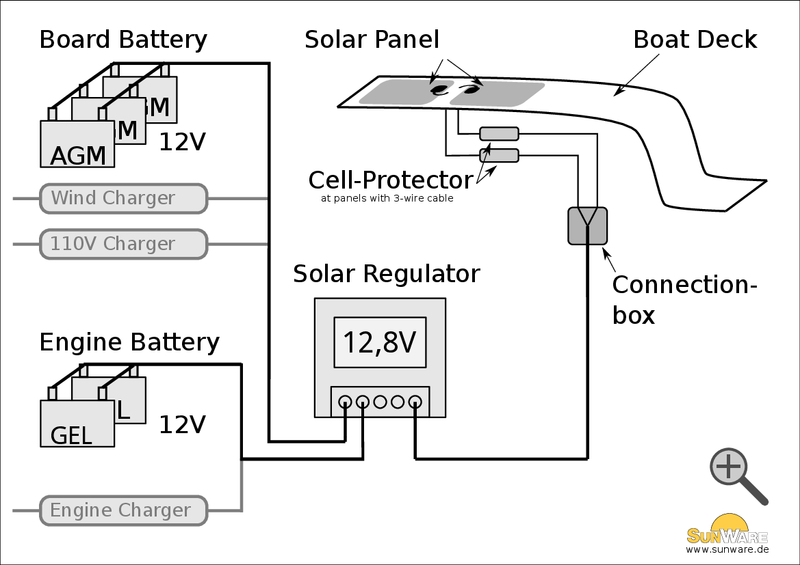

The cable has a length of 3m. The more powerful modules contains a cell protector, which has to be connected at the end of the cable.

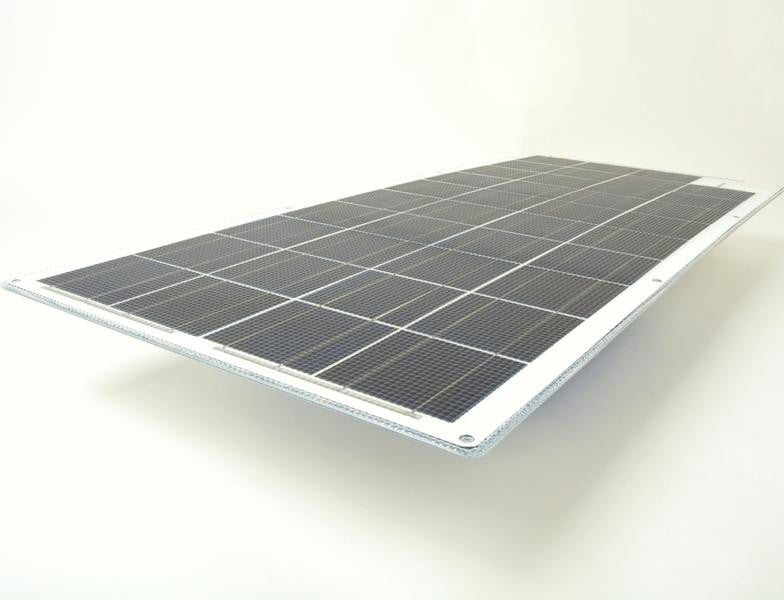

The carrier material is an aluminum sandwich core. By the new core material the cells are perfectly supported and protected. The solar module adapts to curved surfaces, with maximum curvature of 3cm/m module length.
The modules are designed for the harsh marine and salt water use. The cable outlet is screwed to the mounting plate, completely sealed and 100% saltwater proof. By hermetic encapsulation cells and carrier plate are themselves well protected against the aggressive saltwater.
In the solar industry, the solar cell has prevailed with 156mm x 156mm edge length in recent years. So far, our basic cell was 100mm x 100mm in size. To also be able to process the most powerful cells in the future, we have adjusted all module formats to the current cell formats while reducing the dimensions to an absolute minimum.
Please note that the power output of solar modules depends directly from the light intensity - not heat - and has seasonally strong fluctuations. For optimal performance, the module should be oriented as possible perpendicular to the sun and partial shade should be avoided.
|no. of cells||39||pcs.|
|Cell sizes||52.0 x 104.0||mm|
|Holes||6 x 9.0||mm|
|back plate||3.0mm ALU-Sandwich|
|Cable outlet||on backside|
|Cable||3 x 1.5||mm²|
