SunWare - Solar Panel TX-Series TX 11027 17 Wp

SunWare - Solar Panel TX-Series TX 11027 17 Wp

Regular price USD $391.95 USD
Regular price Sale price USD $391.95 USD
Sale Sold out
Shipping calculated at checkout.


The small module TX 11027 with 17Wp is intended for use on cover or spray hood to recharge or trickle charge the 12V battery.

Simply attach the module to a textile fabric and the charge controller such as FOX-220 to the battery.

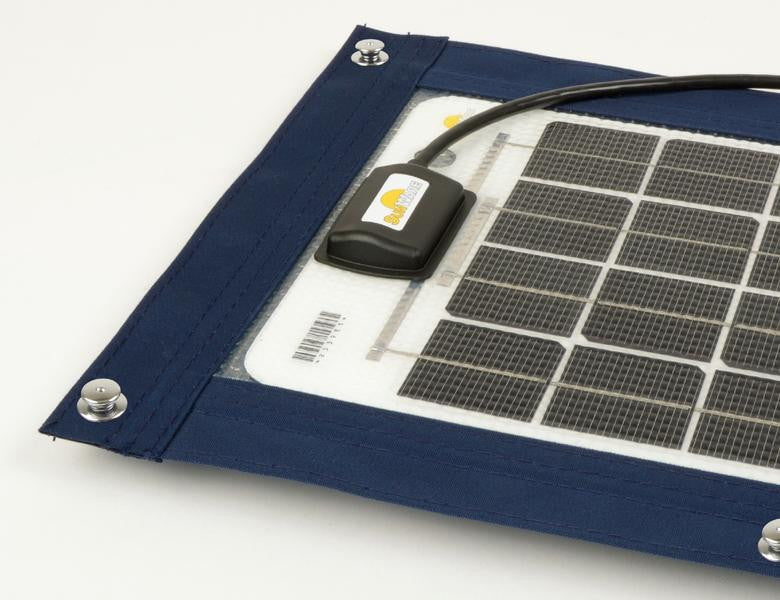

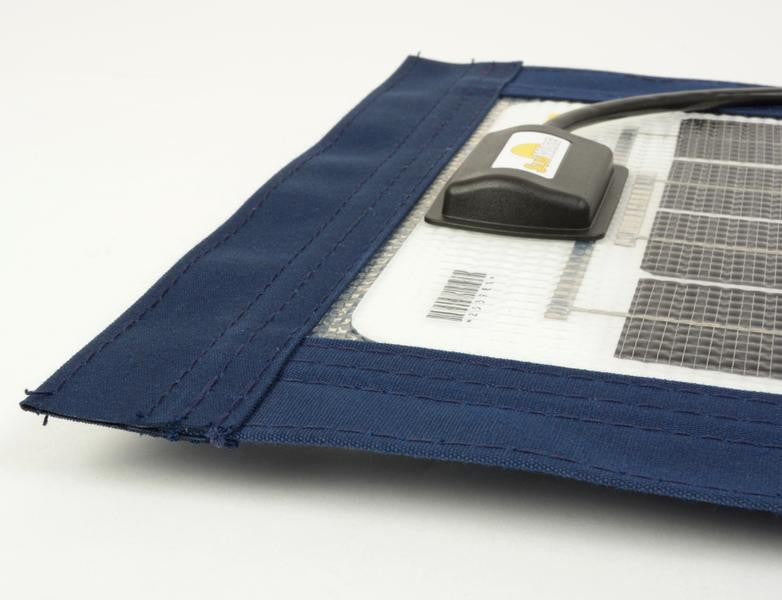

All around a textile mounting flange is sewn to the module. In the edge you can, for example, Tenax fasteners or 10mm eyelets been set. Alternatively, you can also sewed a velcro, zipper or a beaded profile.
  • 17.0 Wp Power
  • 1.00 A max. charging current
  • 4-5 Ah daily yield
  • 668.0 x 333.0 x 6.0 mm
  • circumferential mounting flange
  • 3m connection cable

Technical Data

Name Value Unit
Pmax 17.0 Wp
Imax 0.90 A
Umax 18.89 V
Uoc 22.8 V
Isc 1.00 A
no. of cells 36 pcs.
Cell sizes 52.0 x 52.0 mm
Length 668.0 mm
Width 333.0 mm
Name Value Unit
Textile edging width 46mm
Sys. Voltage 12.0 V
back plate 3.0mm Sandwich
Cable outlet on frontside
Cable 2 x 1.5 mm²
Cable length 3.0 m
Color weiss/white
Package Einzelkarton/sngl. box
Weight net 1.0 kg
Weight gross 1.5 kg
