SunWare - Solar Panel TX-Series TX 12052 50 Wp
SunWare - Solar Panel TX-Series TX 12052 50 Wp
Out of stock
Regular price
USD $879.67 USD
Regular price
Sale price
USD $879.67 USD
Unit price
/
per
Description

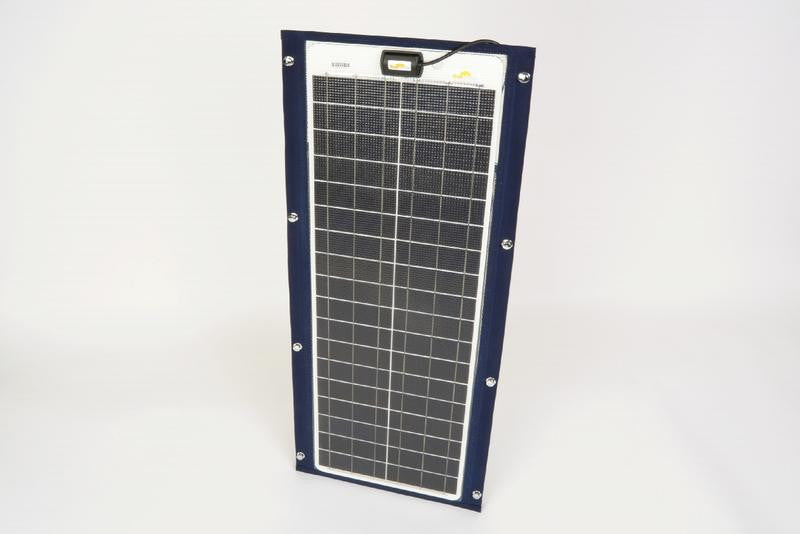

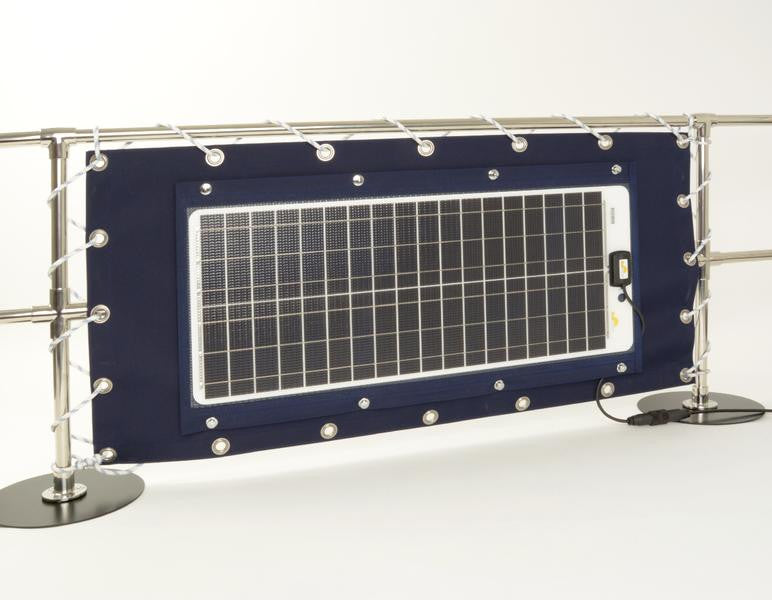

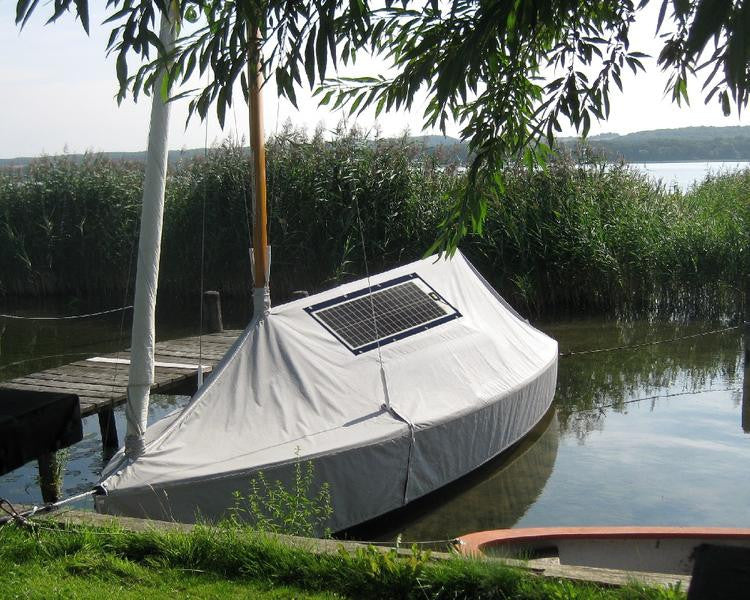

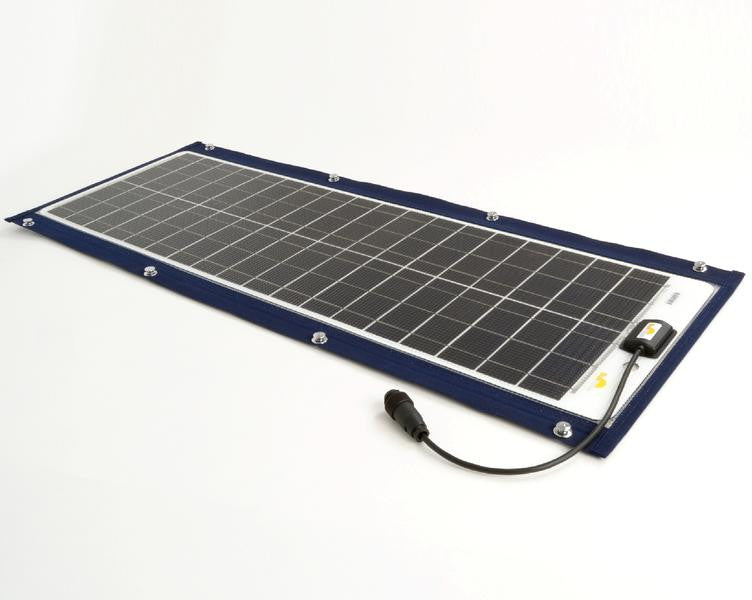

The slim module TX-12052 with 50Wp is intended for use on wind dress or other textile fabrics.

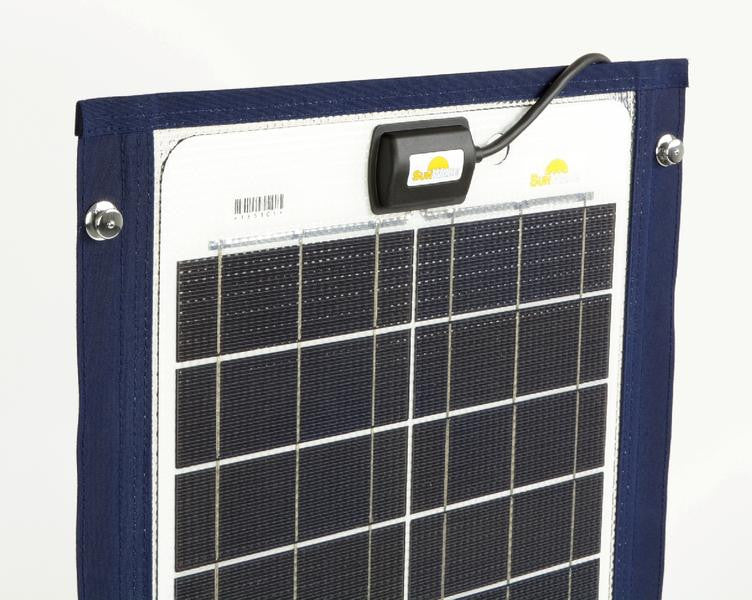

On the long sides 4 Tenax tops for easy attachment are inserted. The attached bases are screwed into the textile fabric, then snap on the module - Done.
- 50.0 Wp Power
- 3.00 A max. charging current
- 12-15 Ah daily yield
- 1106.0 x 431.0 x 6.0 mm

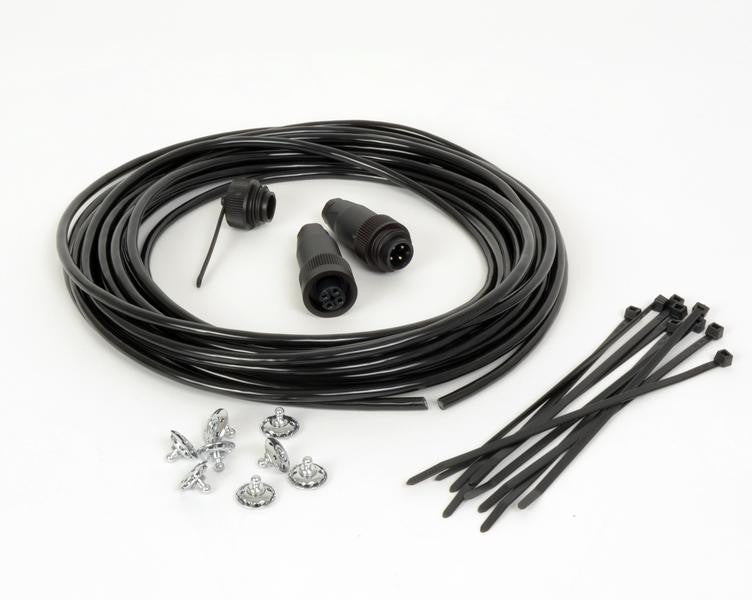

- seawater-tight cable plug
- seawater-tight cable socket
- 10m UV-resistant cable

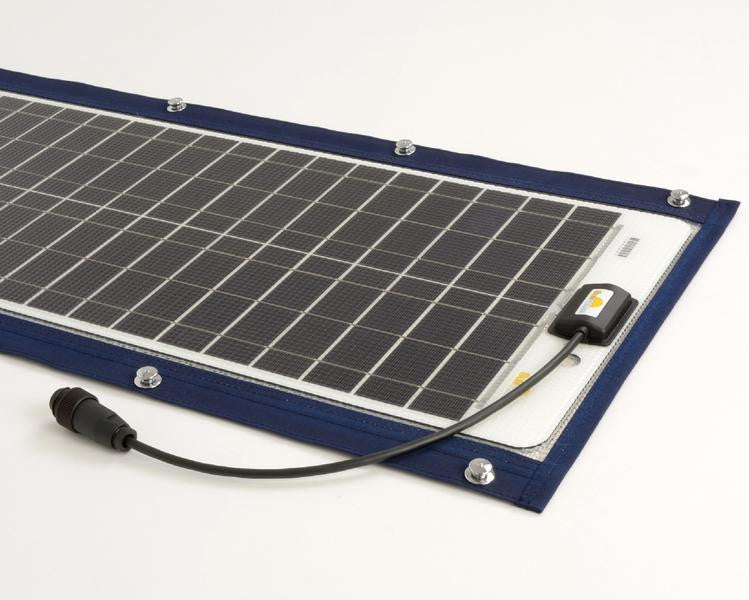

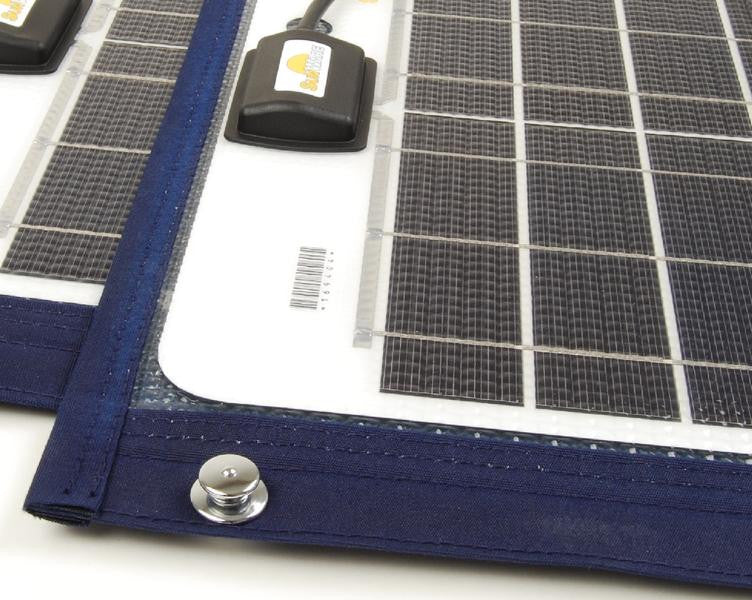

- Textile edge with Tenax fasteners
- Tenax bases enclosed
Technical Data
Name | Value | Unit |
---|---|---|
Pmax | 50.0 | Wp |
Imax | 2.70 | A |
Umax | 18.52 | V |
Uoc | 22.8 | V |
Isc | 3.00 | A |
no. of cells | 36 | pcs. |
Cell sizes | 52.0 x 156.0 | mm |
Laminate | ETFE/EVA/ETFE | |
Length | 1106.0 | mm |
Width | 431.0 | mm |
Name | Value | Unit |
---|---|---|
Textile edging | width 46mm | |
Sys. Voltage | 12.0 | V |
back plate | 3.0mm Sandwich | |
Cable outlet | on frontside | |
Cable | 2 x 1.5 | mm² |
Cable length | 0.4 | m |
Color | weiss/white | |
Package | Einzelkarton/sngl. box | |
Weight net | 2.6 | kg |
Weight gross | 6.4 | kg |
