SunWare - Solar Panel TX-Series TX 22039 76 Wp

  • $ 964.45 USD

So far, rollable or foldable modules were always available only with low-power thin-film solar cells. Thus periode is now over.
With the TX series SunWare now offers foldable modules based on crystalline high-performance solar cells with an efficiency of up to 18,5%.

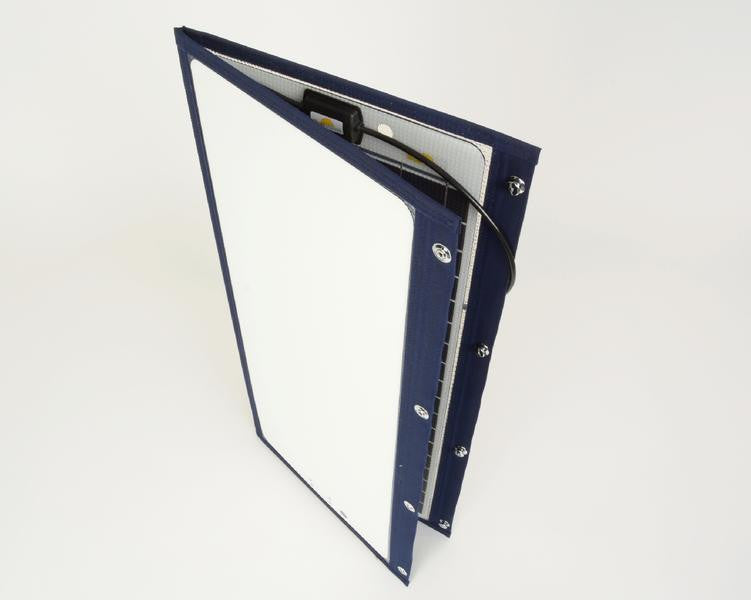

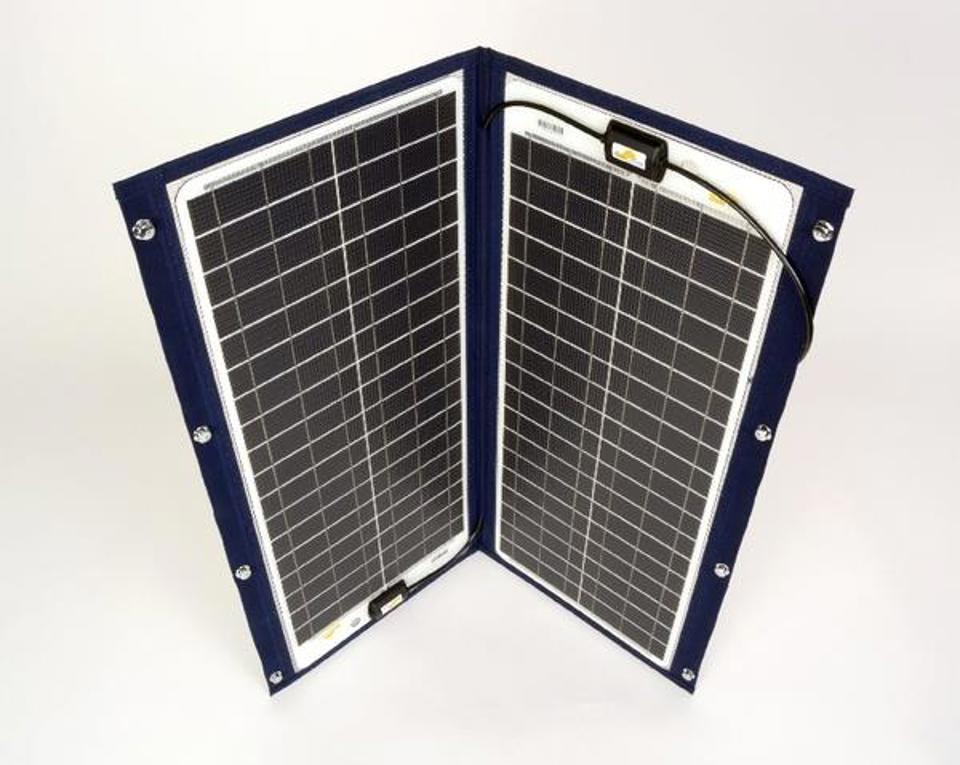

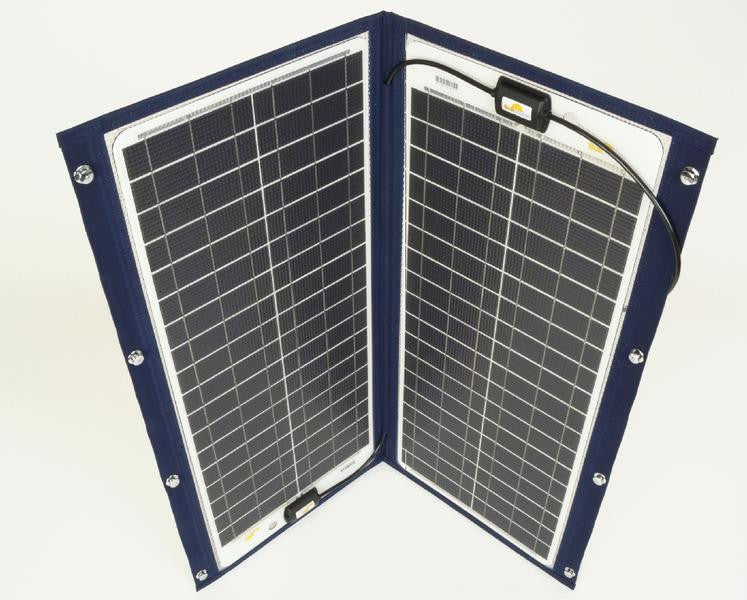

The TX-22039 is a 2-leaf solar module with textile surround. Thanks to the textile joint it can simply be folded to small transport dimensions of 413 x 873 x 25mm.

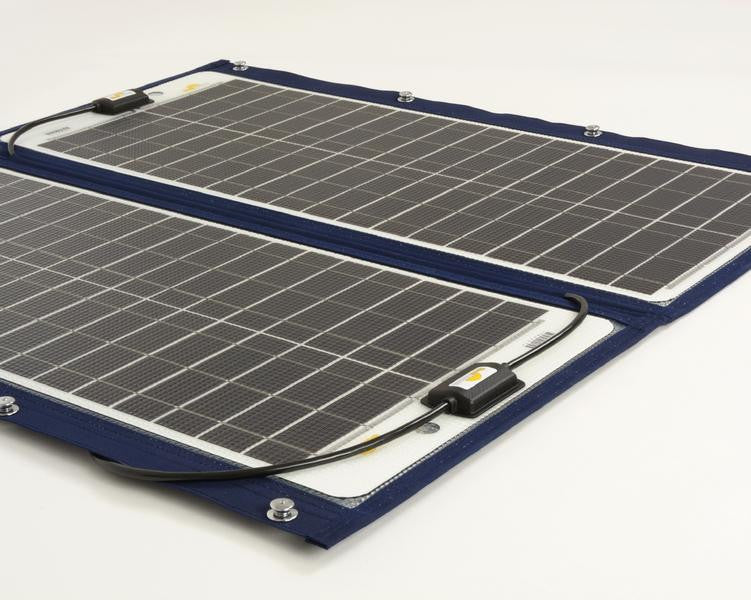

Each wing of this module works independently!

This particular electrical interconnection set up by SunWare causes when an element is shaded, the other wing produce full power further on.

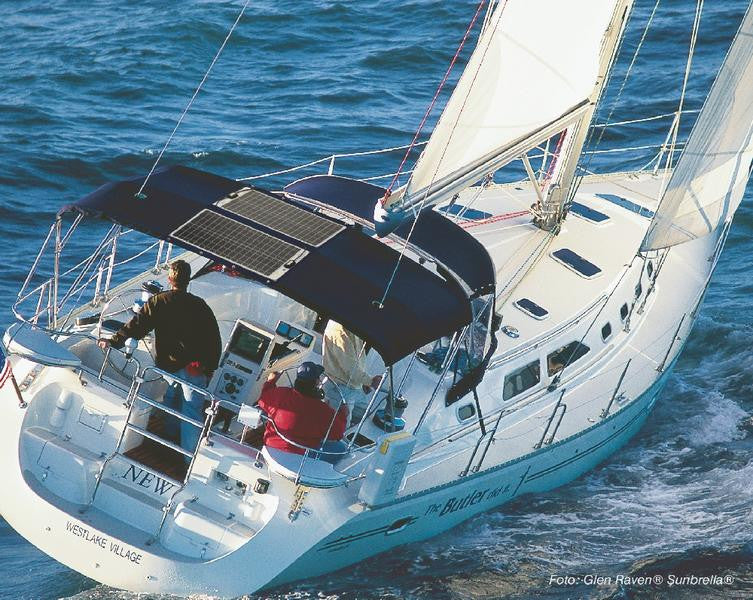

For example, just hang over the railing a two-wing module when the spray hood has been folded up. Almost no matter how the boat is orientated to the sun, the sunny side of the TX-22039 always produces full charging current.

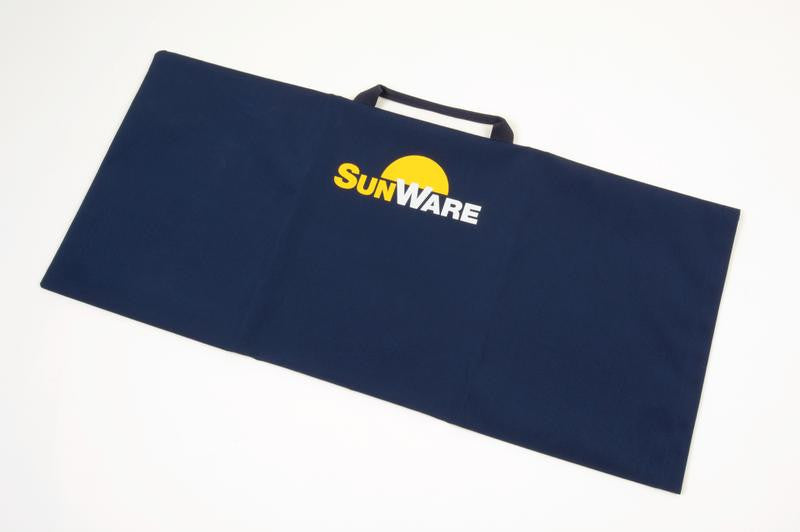

Panel bag is in scope of delivery.
  • 76.0 Wp Power
  • 4.40 A max. charging current
  • 18-22 Ah daily yield
  • 873.0 x 826.0 x 6.0 mm
  • seawater-tight cable plug
  • seawater-tight cable socket
  • 10m UV-resistant cable
  • Textile edge with Tenax fasteners
  • Tenax bases enclosed
  • panel bag included

Technical Data

Name Value Unit
Pmax 76.0 Wp
Imax 4.00 A
Umax 19.00 V
Uoc 22.8 V
Isc 4.40 A
no. of cells 72 pcs.
Cell sizes 39.0 x 156.0 mm
Length 873.0 mm
Width 826.0 mm
Name Value Unit
Textile edging width 46mm
Sys. Voltage 12.0 V
back plate 3.0mm Sandwich

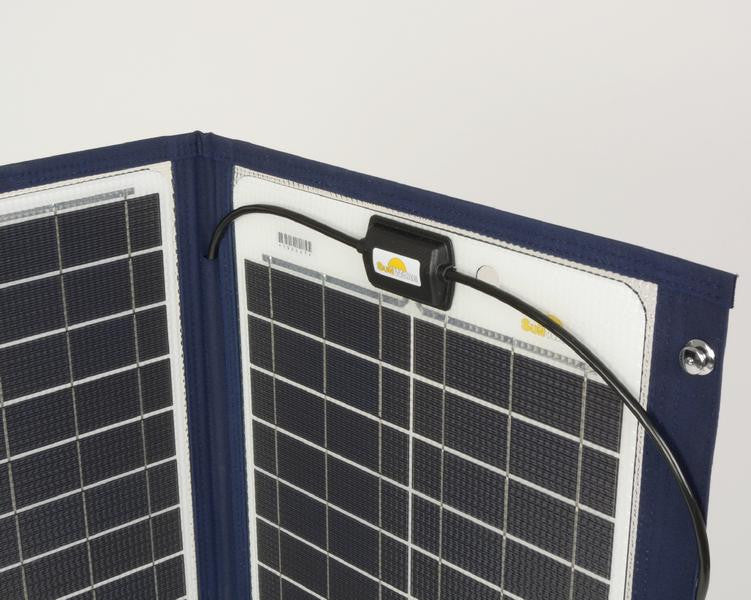

Cable outlet on frontside
Cable 2 x 1.5 mm²
Cable length 0.4 m
Color weiss/white
Package Einzelkarton/sngl. box
Weight net 4.2 kg
Weight gross 7.2 kg
