TBS Electronics DCM-RBS-12-500 Remote Battery Switch

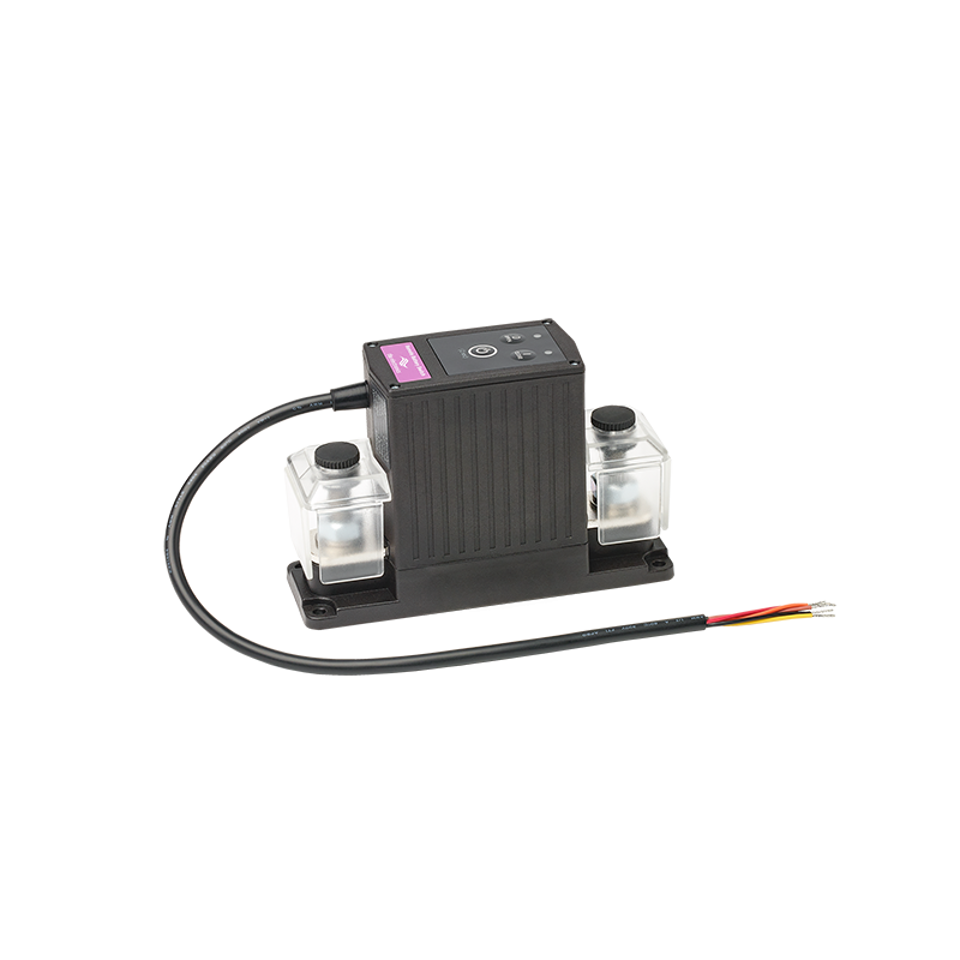

TBS Electronics DCM Remote Battery Switch 12V / 500A (5074510 / DCM-RBS-12-500)

The TBS Electronics 5074510 (DCM-RBS-12-500) is a high-power, bistable Remote Battery Switch (RBS) engineered for automated or remote switching of heavy-duty 12 V DC loads and battery banks. Capable of handling 500 A continuous current and peak cranking surges up to 1,500 A, it allows high-current battery cables to remain close to the power source while enabling low-current switching from remote helm controls, battery management systems (BMS), or automatic voltage sensors.

Utilizing a magnetically latching (bistable) internal mechanism, the DCM-RBS draws zero current in both the ON and OFF states, eliminating battery drain when resting. It features an integrated manual override knob on top of the housing for emergency manual connection or physical lockout during vessel maintenance, alongside built-in status feedback lines for remote panel indicator LEDs.

Key Features

• High Continuous & Peak Ratings: 500 A continuous capacity with a 1,500 A cranking/intermittent rating for large engine starters and bow thrusters.

• Zero Standby Current Draw: Bistable magnetic latching design draws current only during state transitions (<100 ms pulse), conserving battery capacity.

• Manual Override & Lockout: Manual control knob allows emergency manual switching and safe physical lockout during service.

• Integrated Status Feedback: Dedicated output lines drive remote LED indicators or provide system status inputs to alarm panels and BMS controllers.

• Heavy-Duty Stud Terminals: Dual M10 tinned copper terminal studs provide low-resistance connections for heavy-gauge battery cables up to 120 mm² (4/0 AWG).
