Teltonika PR1KC640 5G Combo MIMO Roof Antenna
Teltonika PR1KC640 5G Combo MIMO Roof Antenna
Low stock: 8 left
Couldn't load pickup availability
Teltonika 5G Combo MIMO Mobile / GNSS / Wi-Fi Roof Mount Antenna

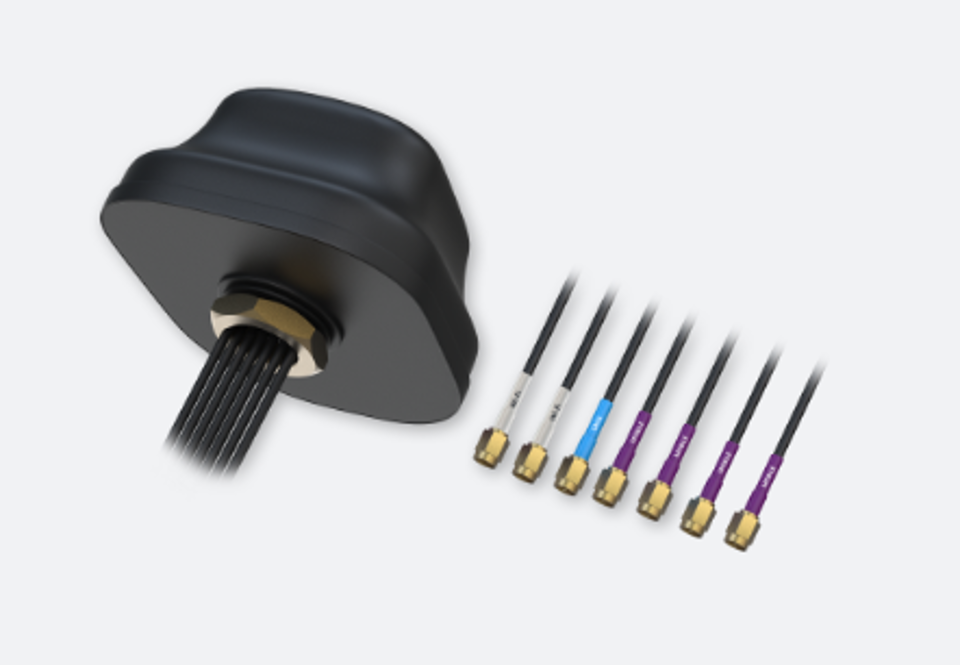

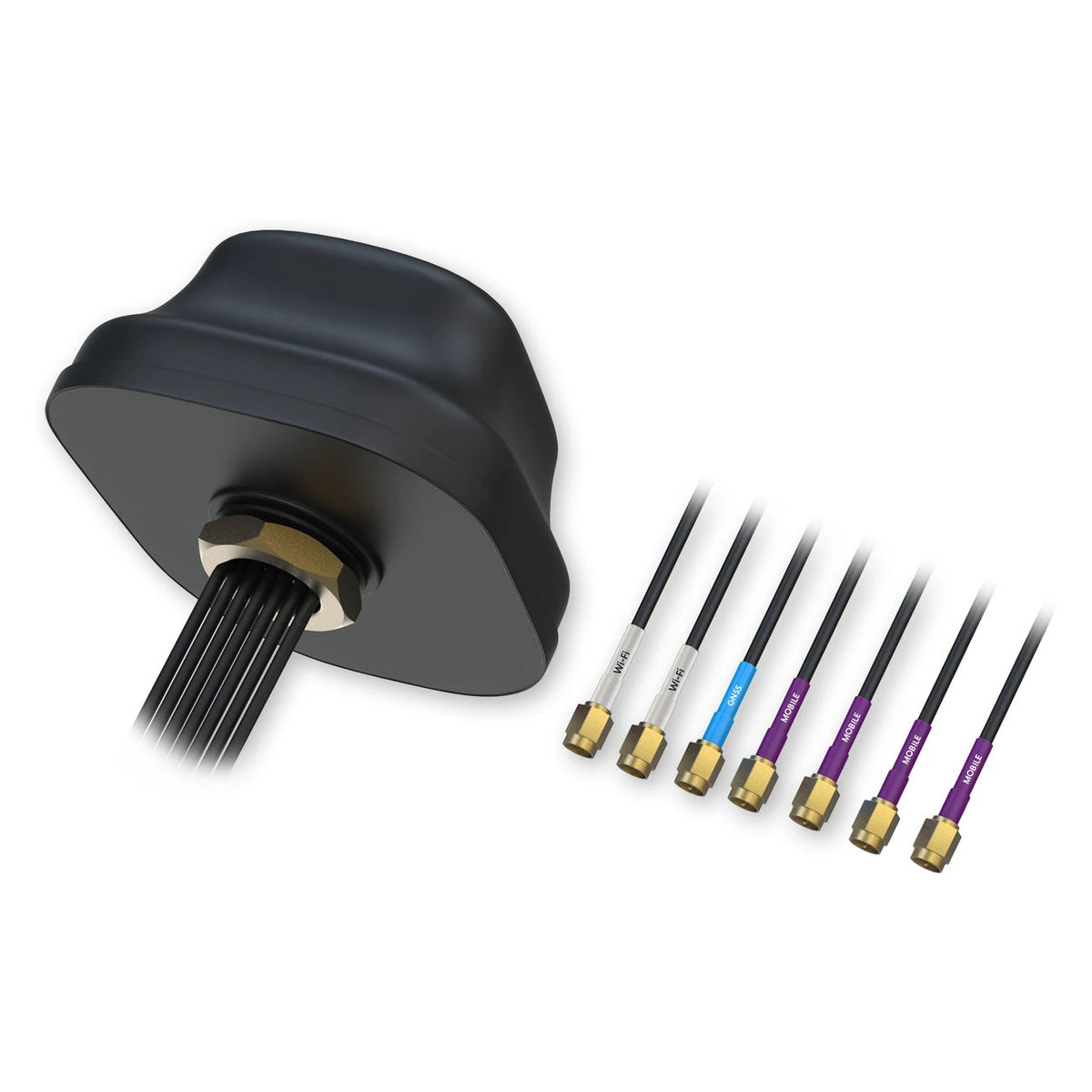

The Teltonika PR1KC640 is a commercial-grade, heavy-duty 7-in-1 combo roof-mount antenna engineered to support high-speed 5G cellular communication, dual-band Wi-Fi connectivity, and precision satellite navigation for marine vessels, commercial fleets, and remote gateway deployments. Housed in a low-profile, IP67 waterproof dome, it consolidates multiple antenna elements into a single external roof-mount footprint.
Designed to maximize cellular throughput and signal stability for Teltonika RUTX50, TRB500, and other high-performance 5G/4G Routers, the antenna integrates a 4x4 MIMO 5G/LTE element array (617-4200 MHz), a 2x2 MIMO Dual-Band Wi-Fi element array (2.4 GHz / 5GHz), and an active GNSS/GPS element with an integrated LNA (28 dB gain). The unit features 3-meter low-loss LMR195/RG174 coaxial cable runs pre-terminated with color-coded SMA and RP-SMA connectors for direct plug-and-play integration.
Key Features
-
7-in-1 Combined Antenna System: Integrates 4 Cellular (5G/4G), 2 Wi-Fi, and 1 GNSS/GPS elements into a single roof-mount enclosure.
-
4x4 MIMO 5G/LTE Ultra-Wideband: Covers full sub-6 GHz 5G bands (617-4200 MHz) to deliver maximum data throughput and ultra-low latency.
-

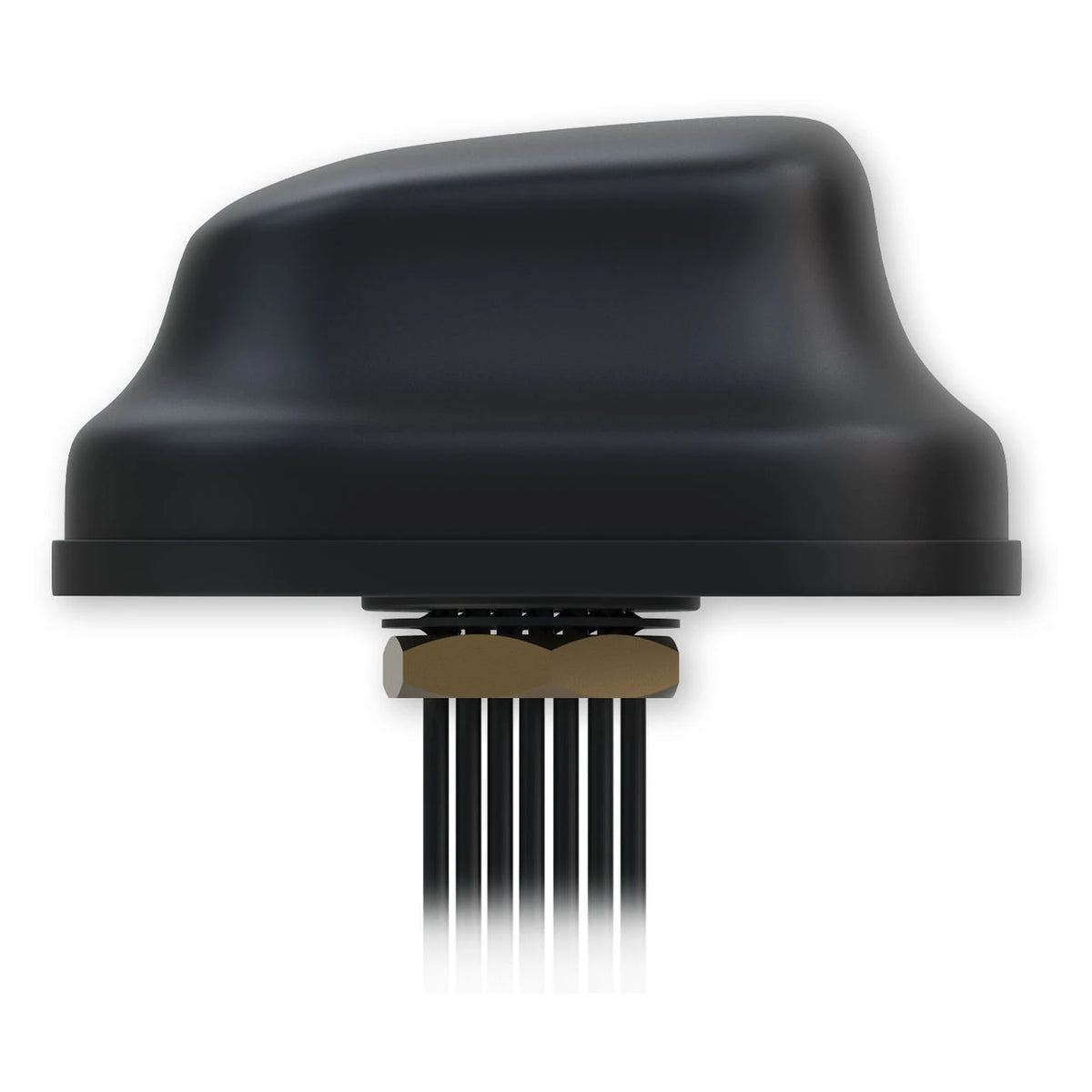

Rugged IP67 Roof Mount: Heavy-duty, UV-stabilized ABS dome protects internal elements against saltwater, pressure washing, and extreme ambient temperatures.
-
Active High-Gain GNSS Receiver: Built-in low-noise amplifier (LNA) ensures rapid GPS/GLONASS satellite acquisition for vehicle tracking and vessel positioning.
-

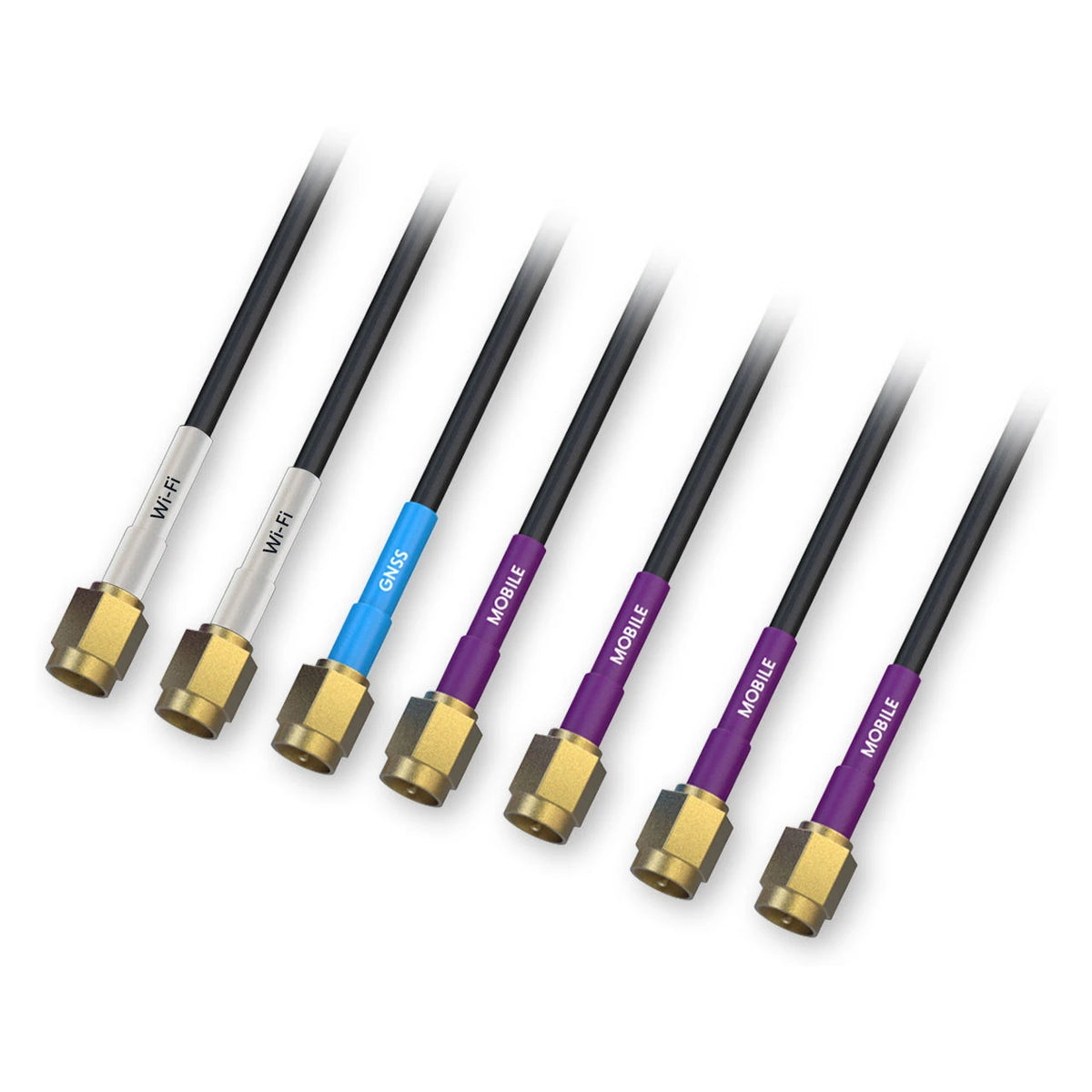

Low-Loss Pre-Terminated Cable Harness: Includes 3-meter low-attenuation cable leads pre-fitted with color-coded connectors for rapid panel wiring.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Teltonika Networks |
| Part Code / SKU | PR1KC640 |
| Component Category | 5G/LTE Combo Roof Antenna / Marine-Grade External Mount |
| Cellular Elements (4x4 MIMO) | 4 * 5G/LTE Elements (617-960 MHz / 1710-2690 MHz / 3300-4200 MHz) |
| Cellular Peak Gain | Up to 3.0 dBi (617-960 MHz) / 4.0 dBi (1710-2690 MHz) / 4.5 dBi (3300-4200 MHz) |
| Wi-Fi Elements (2x2 MIMO) | 2 * Dual-Band Wi-Fi Elements (2400-2483.5 MHz / 4900-5925 MHz) |
| Wi-Fi Peak Gain | Up to 3.5 dBi (2.4 GHz) / 4.0 dBi (5.0 GHz) |
| GNSS Element & LNA | 1 * Active GPS/GLONASS/Galileo (1575.42-1610 MHz) / 28B LNA Gain |
| Impedance / VSWR | 50 Ω Nominal / ≤2.0 across active operational bands |
| Cable Type & Length | 4 * LMR195 (Cellular)}, 2 * LMR195 (Wi-Fi)}, 1 * RG174 (GNSS) - All 3.0 m (9.8 ft) |
| Connector Configuration | 4 * SMA Male (Cellular), 2 * RP-SMA Male (Wi-Fi)}, 1 * SMA Male (GNSS) |
| Mounting Format | Through-Hole Screw/Nut Roof Bolt Mount (∅ 2mm Threaded Stud) |
| Housing & Ingress Rating | UV-Stabilized ABS Enclosure / IP67 Waterproof & Dustproof |
| Dimensions | ∅ 140 mm * 65 mm Height (∅ 5.51" * 2.56") |
| Operating Temperature | -40° C to +85° C}(-40° F to +185° F) |
| Compliance & Approvals | CE, RoHS Compliant, REACH |
