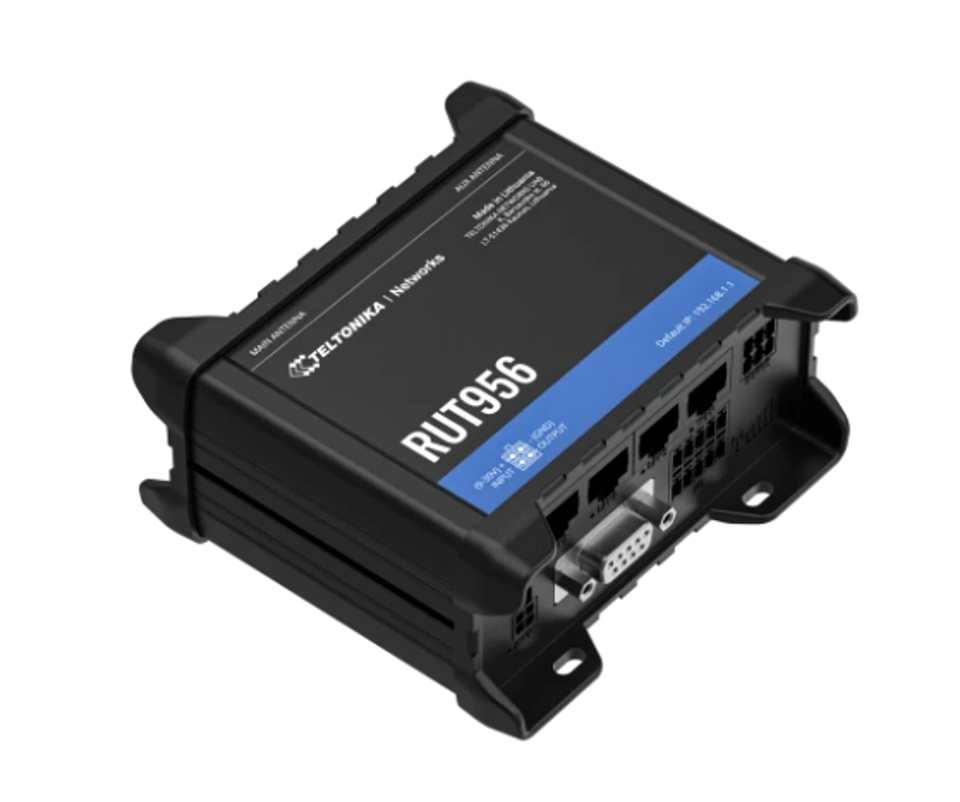

Teltonika RUT956 Industrial 4G LTE Cat 4 Cellular Router (EMEA / APAC Variant)
The Teltonika RUT956100100 is an industrial-grade 4G LTE Cat 4 cellular router engineered for mission-critical marine, vehicular, and industrial remote site communications. Featuring dual-SIM auto-failover, 4x Fast Ethernet ports (10/100 Mbps), 802.11b/g/n Wi-Fi, multi-constellation GNSS (GPS/GLONASS), and physical RS232 and RS485 serial interfaces, the RUT956 acts as a central communication gateway for both IP networks and legacy serial infrastructure.
Encased in an IP30-rated aluminum housing with plastic panels, the RUT956 includes configurable physical digital/analog I/O pins for direct interfacing with engine controllers, sensors, and marine telemetry circuits. The specific ordering code RUT956100100 designates the Asia, Europe, Middle East, and Africa regional variant, supplied with standard Euro-plug power accessories and a complete multi-antenna kit.
Key Features
-
4G LTE Cat 4 Connectivity: Cellular transfer speeds up to 150 Mbps download and 50 Mbps upload with 3G/2G fallback.
-
Dual SIM Auto-Failover: Configurable automatic WAN switching on signal degradation, data cap limits, or roaming status.
-
RS232 & RS485 Serial Interfaces: Direct industrial serial pass-through, Modbus RTU/TCP gateway support, and NMEA 0183 data integration.
-
Integrated GNSS Location Tracking: Multi-constellation GPS, GLONASS, BeiDou, Galileo, and QZSS receiver for real-time vessel tracking and geofencing.
-
Advanced RutOS Security: OpenWrt-based RutOS supporting enterprise VPN protocols (OpenVPN, IPsec, WireGuard), firewall, and Teltonika RMS compatibility.
Itemized Package Contents (Included Items)
| Qty | Component Item | Description |
| 1x | RUT956 Router | Teltonika RUT956 Industrial Dual-SIM LTE Router |
| 1x | Power Supply (PSU) | 9W Power Adapter (4-pin industrial plug, Euro standard) |
| 2x | LTE Antennas | Magnetic Mount Antennas (SMA Male, 3.0 m cable) |
| 2x | Wi-Fi Antennas | Magnetic Mount Antennas (RP-SMA Male, 1.5 m cable) |
| 1x | GNSS Antenna | Adhesive Mount GPS/GLONASS Antenna (SMA Male, 3.0 m cable) |
| 1x | RS485 Terminal Plug | 6-Pin Green Screw Terminal Block |
| 1x | I/O Terminal Plug | 10-Pin Green Screw Terminal Block |
| 1x | Ethernet Cable | 1.5 m Cat5e Patch Lead (RJ45) |
| 1x | SIM Adapter Kit | Micro-SIM and Nano-SIM to Standard SIM Adapters |
| 1x | Documentation | Quick Start Guide (QSG) and RMS Overview Leaflet |
Specifications
| Feature | Specification |
| Manufacturer / Brand | Teltonika Networks |
| Part Code / SKU | RUT956100100 |
| Component Category | Industrial Network Hardware / Cellular Gateways |
| Cellular Engine | 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL) |
| SIM Slots | 2 * Standard SIM Slots (1.8V / 3V Auto-Failover) |
| Ethernet Interfaces | 1 * 10/100 Mbps WAN + 3 * 10/100 Mbps LAN Ports |
| Wi-Fi Interface | IEEE 802.11b/g/n (2.4 GHz, AP and Station mode) |

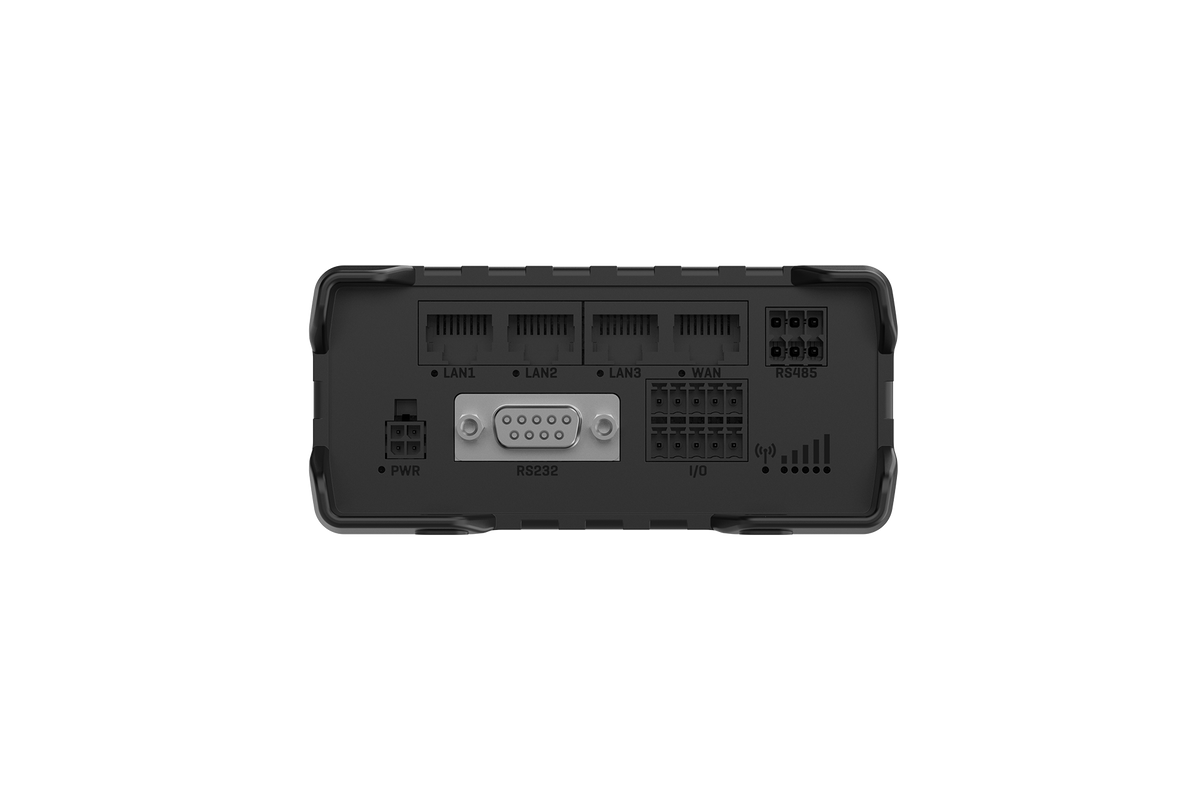

| Serial Ports | 1 * RS232 (DB9) + 1 * RS485 (Terminal Block) |
| Digital / Analog I/O | 3 * Digital Inputs, 2 * Digital Outputs, 1 * Analog Input |
| GNSS Positioning | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Input Voltage Range | 9.0V to 30.0V DC via 4-Pin Industrial Socket |
| Enclosure Rating | IP30 Aluminum Housing with Plastic Panels |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Compliance & Approvals | CE, UKCA, CB, RoHS, REACH, E-Mark (ECE R10) |
