Teltonika RUTX12000300 Dual LTE Cat 6 Router (Europe / UK / EMEA)
Teltonika RUTX12000300 Dual LTE Cat 6 Router (Europe / UK / EMEA)
Low stock: 10 left
Couldn't load pickup availability

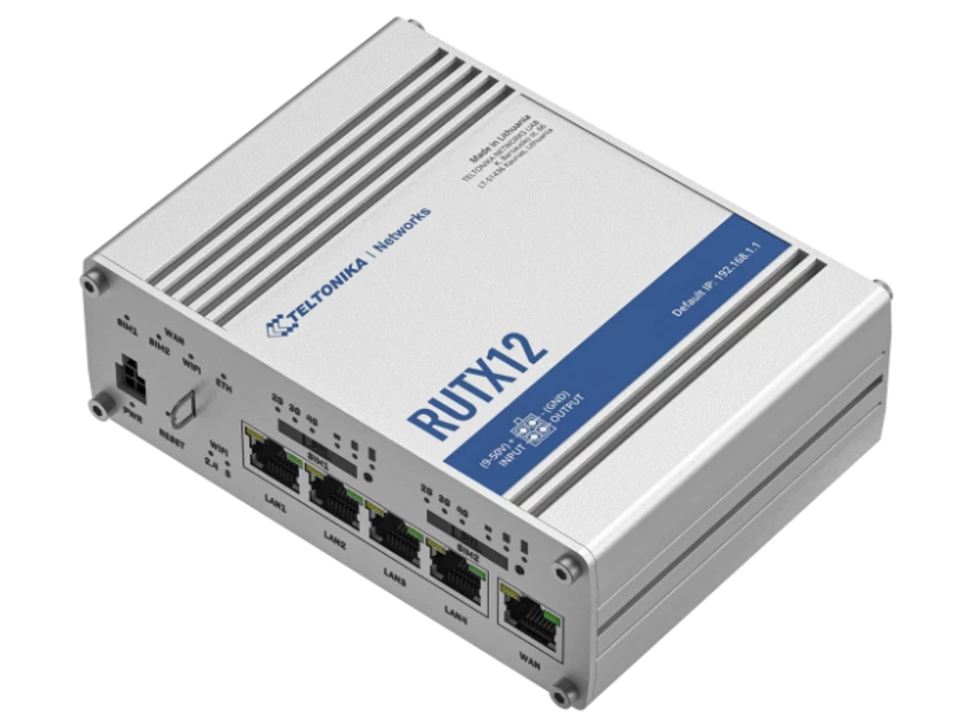

Teltonika RUTX12 Dual Cat 6 Industrial Cellular Router (Europe / UK / EMEA)
The Teltonika RUTX12000300 is a heavy-duty dual-modem LTE Advanced Cat 6 industrial router engineered for mission-critical marine, mobile, and remote network infrastructure. Equipped with two independent LTE Cat 6 modems operating simultaneously, the device provides aggregated cellular throughput of up to 600 Mbps (300 Mbps per modem) alongside multi-WAN load balancing and instant carrier failover.
Housed in a rugged aluminum enclosure, the RUTX12 features 5* Gigabit Ethernet ports, Dual-Band Wave 2 802.11ac Wi-Fi (up to 867 Mbps), Bluetooth LE, and multi-constellation GNSS for real-time vessel or vehicle tracking. Powered by Teltonika's Linux-based RutOS, it delivers enterprise-level security protocols (OpenVPN, IPsec, Firewall, VLAN) and full integration into Teltonika's Remote Management System (RMS).
Standard Package / In-Box Contents
-
1 * Teltonika RUTX12 Dual LTE Router Chassis
-
1 * 24W Regional Power Supply Unit (24V DC / 1.0A 4-Pin Industrial Connector)
-
4 * LTE Antennas (Swivel Type, Male SMA Connectors)
-
2 * Dual-Band Wi-Fi Antennas (Swivel Type, Male RP-SMA Connectors)
-
1 * GNSS Antenna (Adhesive Mount, 3m Cable, Male SMA Connector)
-
1 * Bluetooth LE Antenna (Magnetic Mount, 1.5m Cable, Male RP-SMA Connector)
-
1 * 1.5m Ethernet Cable (Cat 5e)
-
1 * SIM Extractor Needle Tool
-
1 * Quick Start Guide (QSG)
Key Features
-
Dual Simultaneous LTE Cat 6: Features two cellular modems allowing simultaneous connection to two separate mobile carriers for carrier aggregation and active load balancing.
-
5*Gigabit Ethernet Ports: Configurable 1 WAN and 4 LAN ports (10/100/1000 Mbps) for high-speed local network routing.
-
Dual-Band Wave 2 Wi-Fi: 802.11ac MU-MIMO Wi-Fi broadcasting on 2.4 GHz and 5 GHz frequencies simultaneously with speeds up to 867 Mbps.
-
Integrated GNSS Location Tracking: GPS, GLONASS, BeiDou, Galileo, and QZSS compatibility for geo-fencing and real-time fleet management.
-
Industrial Aluminum Housing: IP30 extruded aluminum chassis built for wide temperature ranges and high vibration resistance.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Teltonika Networks |
| Part Code / SKU | RUTX12000300 (Model: RUTX12) |
| Target Region / Market | Europe / UK / EMEA (B1, B3, B5, B7, B8, B20, B28, B32, B38, B40, B41) |
| Component Category | Dual-Modem Industrial LTE Cat 6 Router / Gateway |
| Cellular Technology | 2 * 4G (LTE Cat 6) — Up to 300 Mbps DL / 50 Mbps UL per modem (600 Mbps total) |
| SIM Slots | 2 * Mini-SIM Slots (2FF, 1.8V / 3V) — One per internal modem |
| Ethernet Interfaces | 5 * 10/100/1000 Mbps RJ45 (1 * WAN, 4 * LAN or custom bridged) |
| Wi-Fi Standard | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) Dual Band, MU-MIMO up to 867 Mbps |
| Bluetooth | Bluetooth 4.0 Low Energy (LE) |
| GNSS Tracking | GPS, GLONASS, BeiDou, Galileo, QZSS (SMA Female Connector) |
| Input Voltage Range | 9V - 50V DC (4-Pin Industrial DC Power Socket with Reverse Polarity Protection) |
| Power Consumption | < 22 W Maximum |
| Digital Inputs / Outputs | 1 * Digital Input, 1 * Digital Output (on 4-pin power socket) |
| Antenna Connectors | 4 * SMA Female (LTE), 2 * RP-SMA Female (Wi-Fi), 1 * RP-SMA (BT), 1 * SMA (GNSS) |
| Enclosure Material | Extruded Aluminum Housing with Option for DIN-Rail Mounting |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Overall Dimensions (W * H * D) | 132 mm * 44.2 mm * 95.1 mm (5.2 in * 1.74 in * 3.74 in) |
| Weight | 540 g (1.19 lbs) |
| Operating System | RutOS (OpenWrt-based Linux OS) |
| Compliance & Approvals | CE, UKCA, FCC, IC, RCM, CB, RoHS, REACH |
