Teltonika TSW200000050 TSW200 Industrial 8-Port PoE+ Switch

Teltonika TSW200 Industrial Unmanaged 8-Port PoE+ Gigabit Switch

The Teltonika TSW200000050 is a rugged, industrial-grade unmanaged Ethernet switch featuring 8 Gigabit RJ45 Power over Ethernet (PoE+) ports and 2 SFP optical fiber ports for long-range uplink connectivity. Designed for harsh marine, industrial automation, and surveillance infrastructure applications, the TSW200 provides plug-and-play network expansion while delivering up to 30W per port (240W total PoE budget) to power IP cameras, access points, and marine telemetry gateways directly over network cabling.

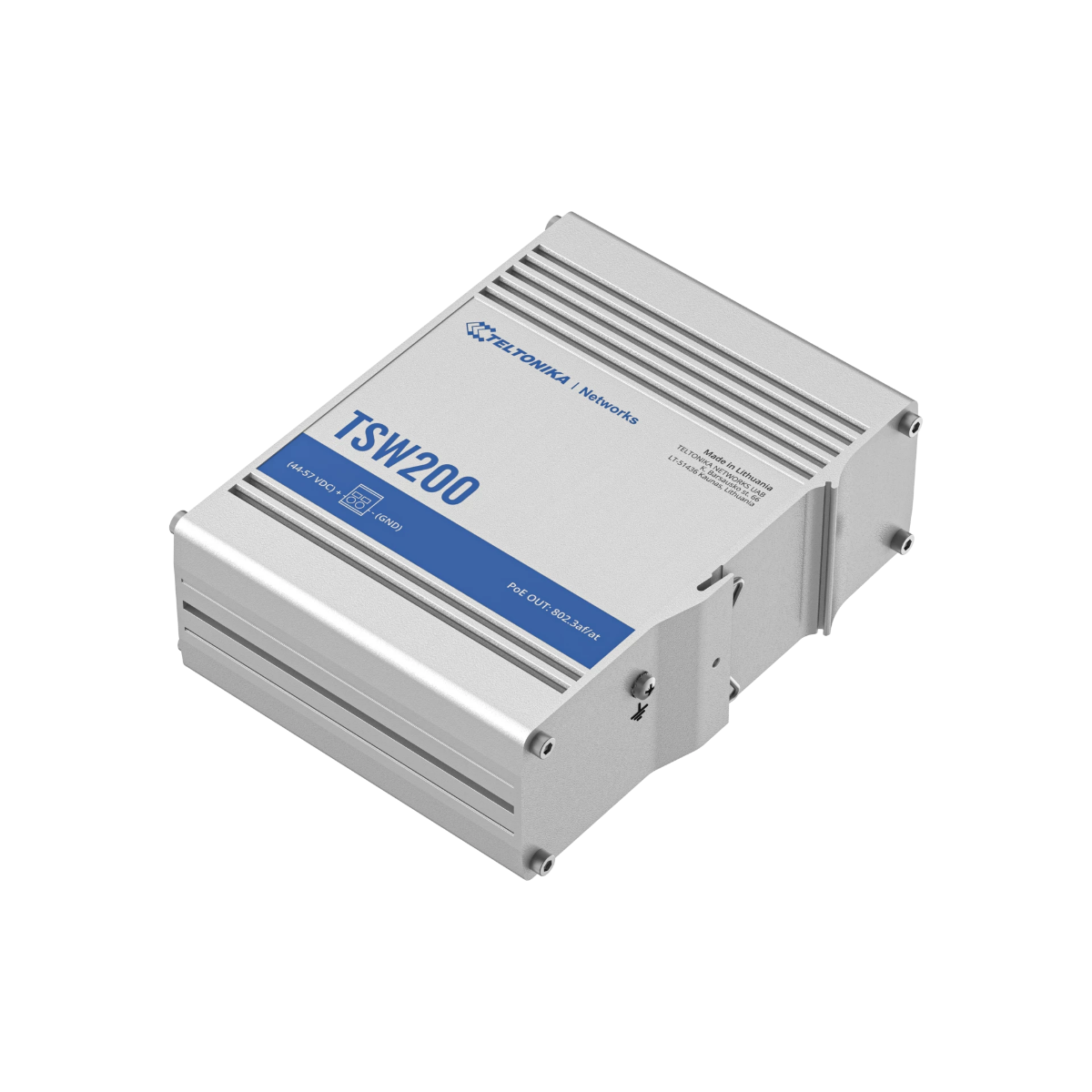

Encased in a heavy-duty, anodized aluminum IP30 housing with integrated DIN-rail and wall mounting options, the switch operates across an extended industrial temperature range of -40°C to +75°C. The specific ordering code TSW200000050 designates the Global (Standard) version, supplied with a 2-pin terminal block power connector for direct DC power integration without regional AC plug adapters.

Key Features

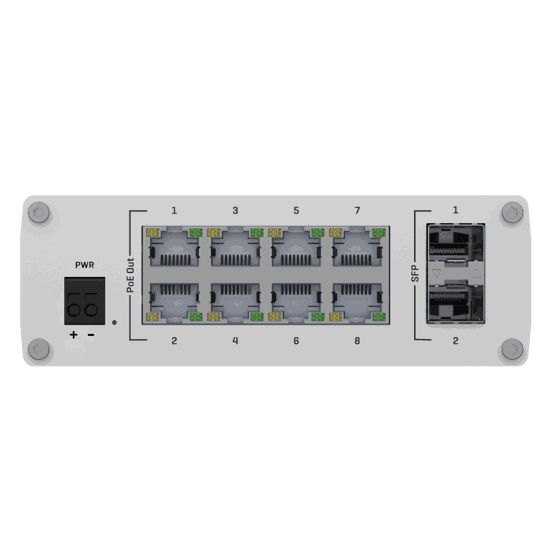

• 8x Gigabit PoE+ Ports: Supports IEEE 802.3af and 802.3at standards, supplying up to 30W per port to connected powered devices (PD).

• 2x SFP Optical Ports: Enables high-speed 1 Gbps fiber optic backhaul links over long distances up to 20 km.

• Heavy-Duty IP30 Aluminum Enclosure: Compact, fanless design built to withstand extreme vibration, electromagnetic interference, and shock.

• Plug-and-Play Unmanaged Deployment: Requires zero software configuration or network management setup for instant installation.

• Wide Range DC Input: Operates on 7-57V DC (PoE operation requires 44-57V DC input) via a 2-pin industrial terminal block.
