OceanLED - 011704 - Xtreme Series DMX APP Controller Kit

  • $ 766.40 USD

X Series OceanDMX APP Controller Kit

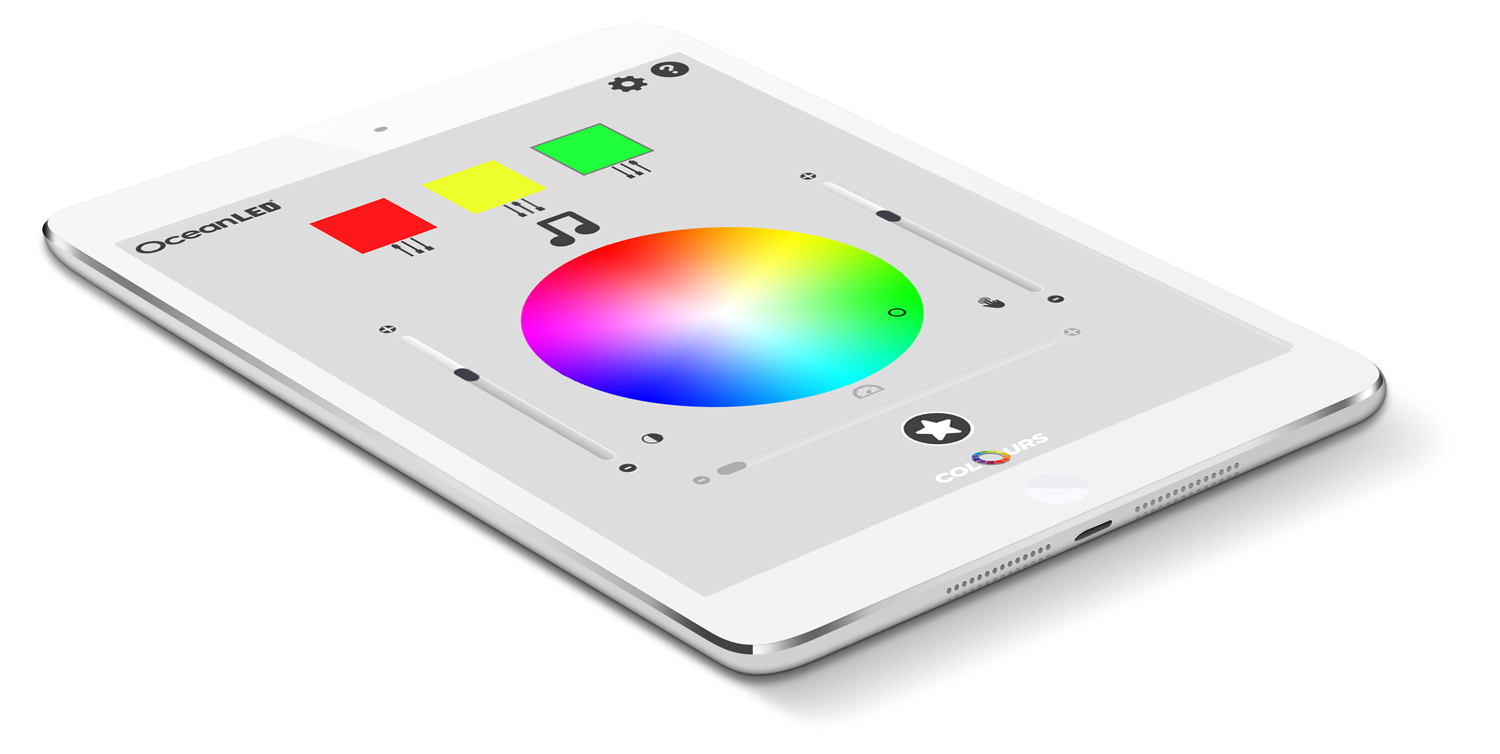

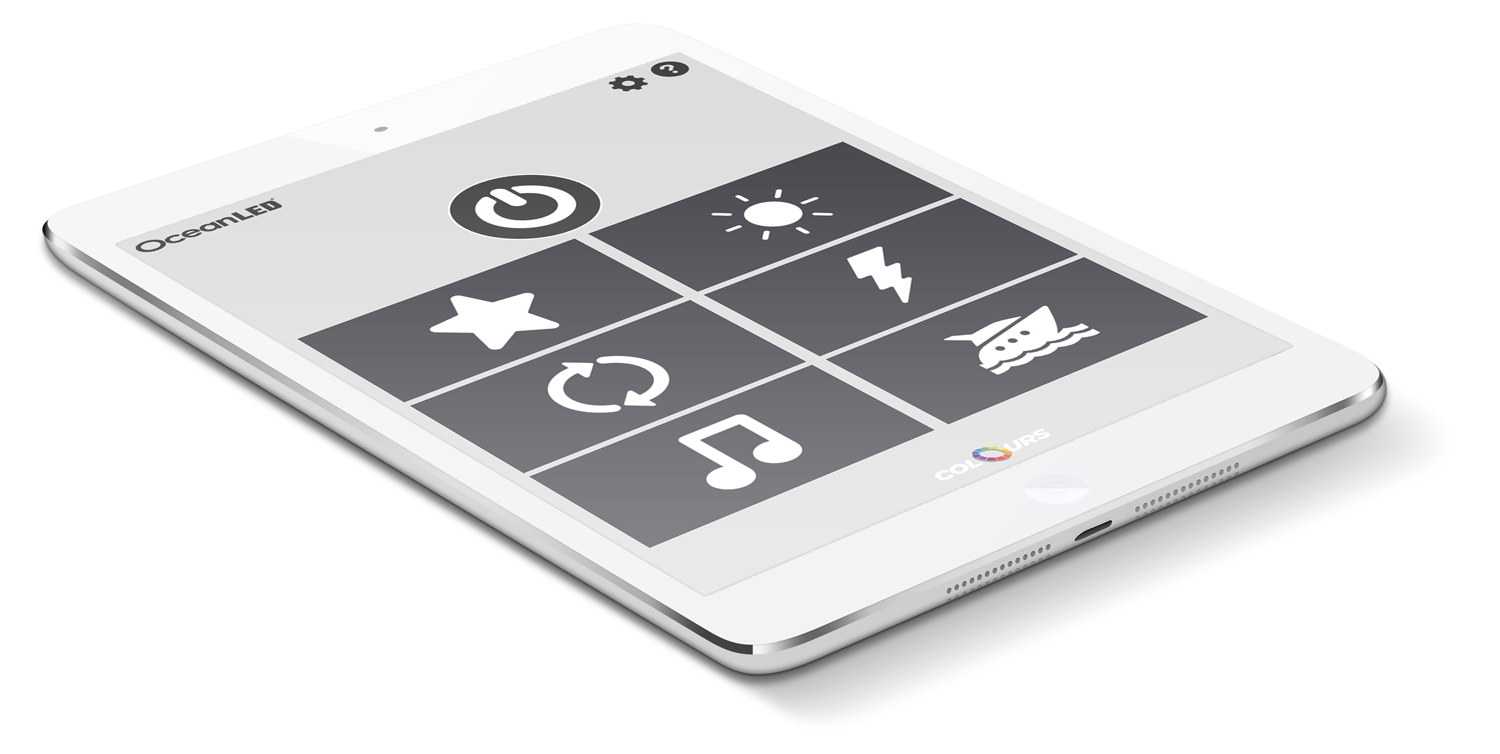

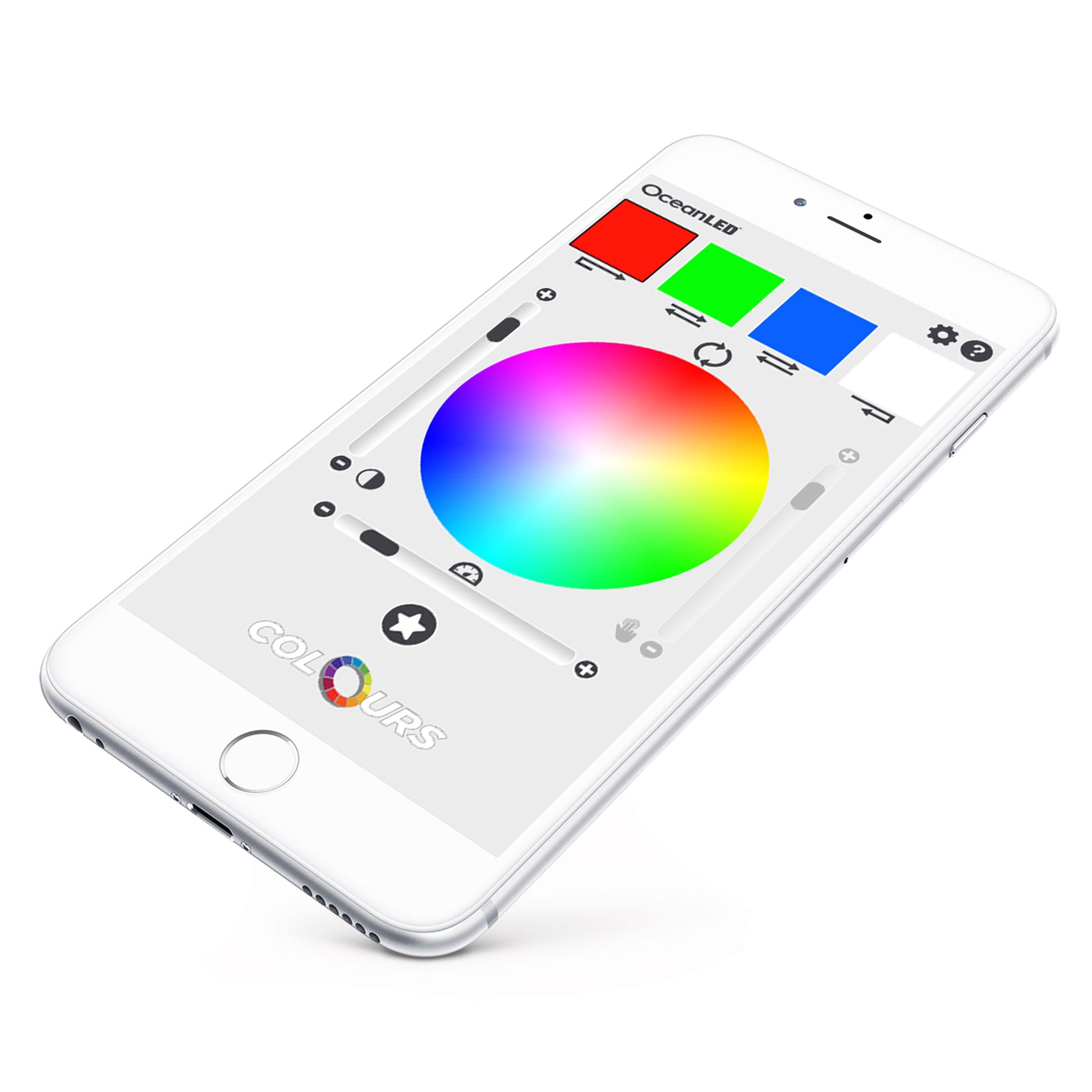

Take control of your OceanLED X Series Colours lights via your iOS or Android device. The OceanDMX App is free to download and easy to use.

Sync with music

To use audio control, simply attach your vessels sound system to the DMX controller via a standard audio jack.

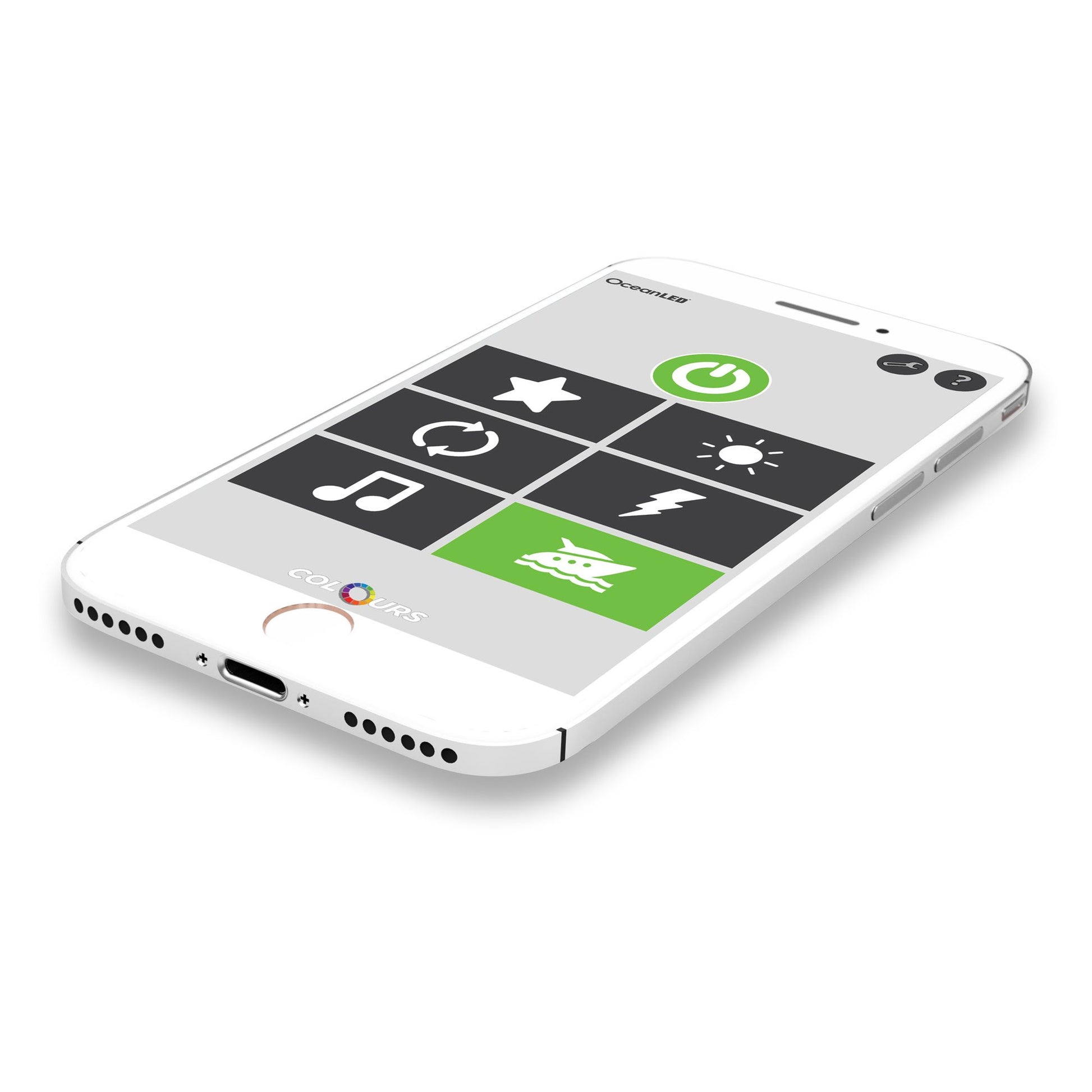

Wave Mode

In wave motion mode, you can create a dramatic display whilst on the move upon wave impact.



  • Single Colour Mode Single Colour Mode
  • Cycle Mode Cycle Mode
  • Strobe Mode Strobe Mode
  • Dynamic Audio control mode Dynamic Audio control mode
  • Dynamic Motion control mode Dynamic Motion control mode
  • 6 storeable presets 6 storeable presets


  • Compatible with Xtreme DMX Series
  • Free download for iOS / Android
  • Unlimited Colour Control
  • Strobe / dimming / cycle modes
  • Easy to use menu system
  • Dedicated WiFi access point

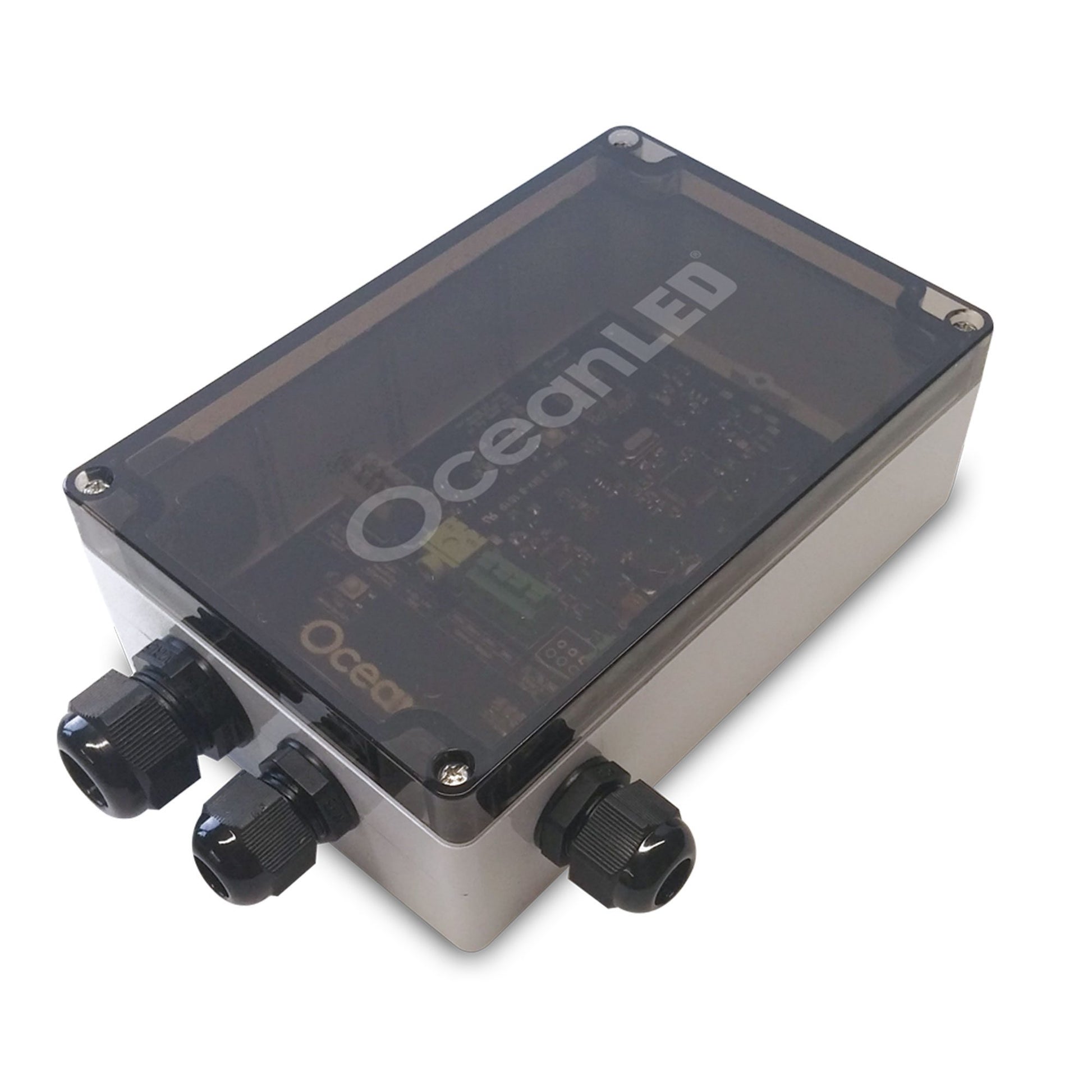

  • IP66 Controller with semi transparent lid



SKU Description
011704 OceanDMX App Controller Kit X Series



Supply Voltage 12/24v DC
Input Current 0.3A max input
DMX Output 1x DMX 512 Output
Power indication LED power on/off indicator
Audio input Cable glands. Push and fit terminals
Wifi On-board WiFi access point or connect to existing
Rating IP66




Total weight 0.48kg (1.06 lbs)
Extension cable length (standard) 9.84’ (3m)
Material Robust polycarbonate with semi transparent lid



316L Stainless Steel Bezel X4 011416
4 Way V DC Power Junction Box 019901

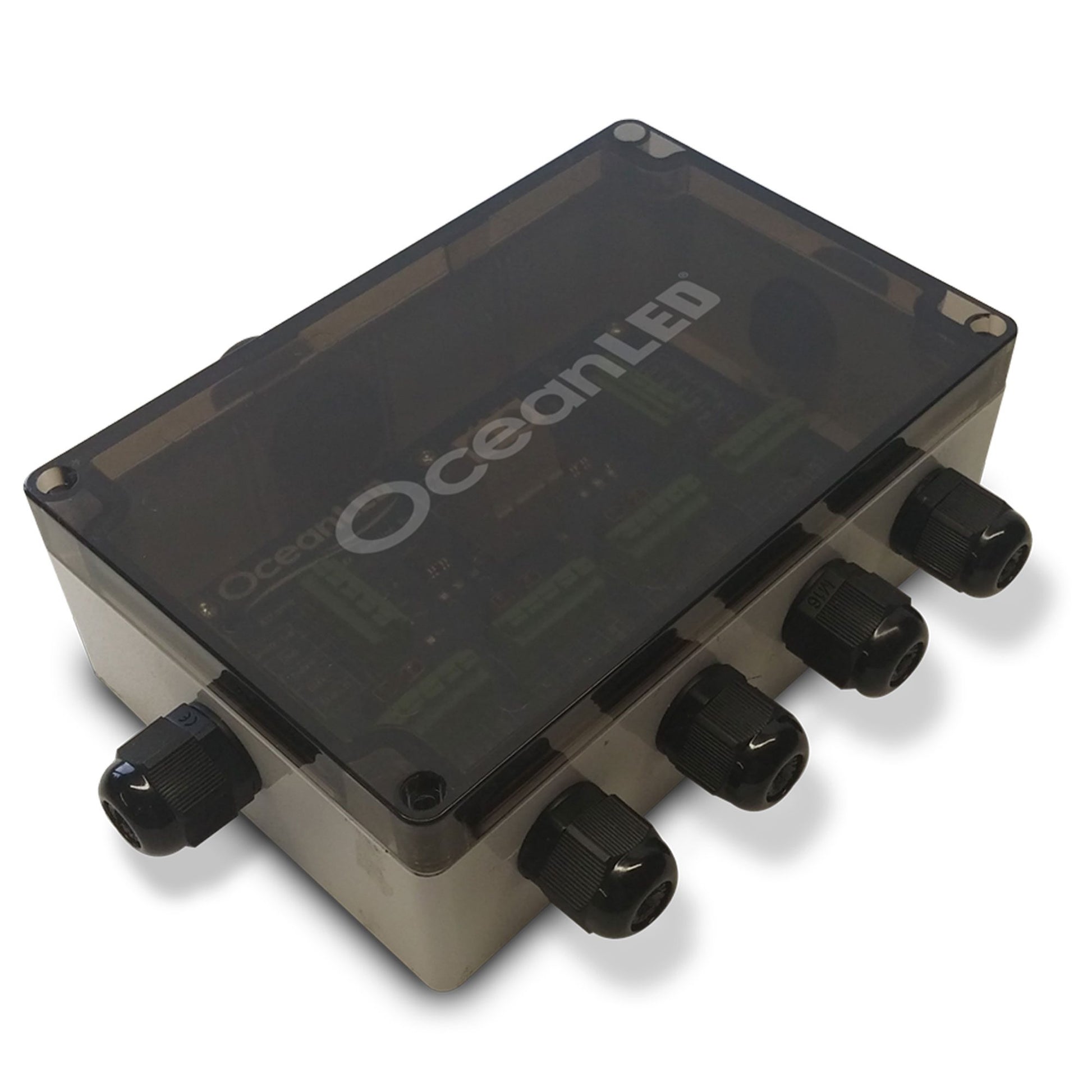

DMX Junction Box 011702
DMX Control cable 5M 011706
DMX Control cable 10M 011707
DMX Control cable 15M 011708
