B&G

B&G-000-11544-001-H5000,Pilot Controller

B&G-000-11544-001-H5000,Pilot Controller

Regular price USD $769.00 USD
Regular price USD $769.00 USD Sale price USD $769.00 USD
Sale Sold out
Shipping calculated at checkout.

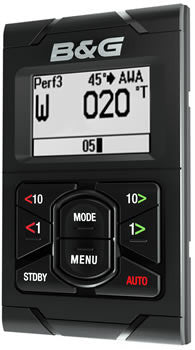

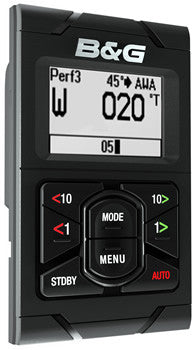

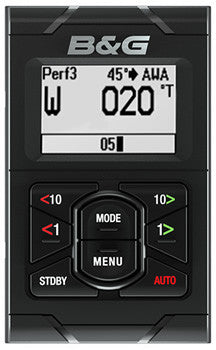

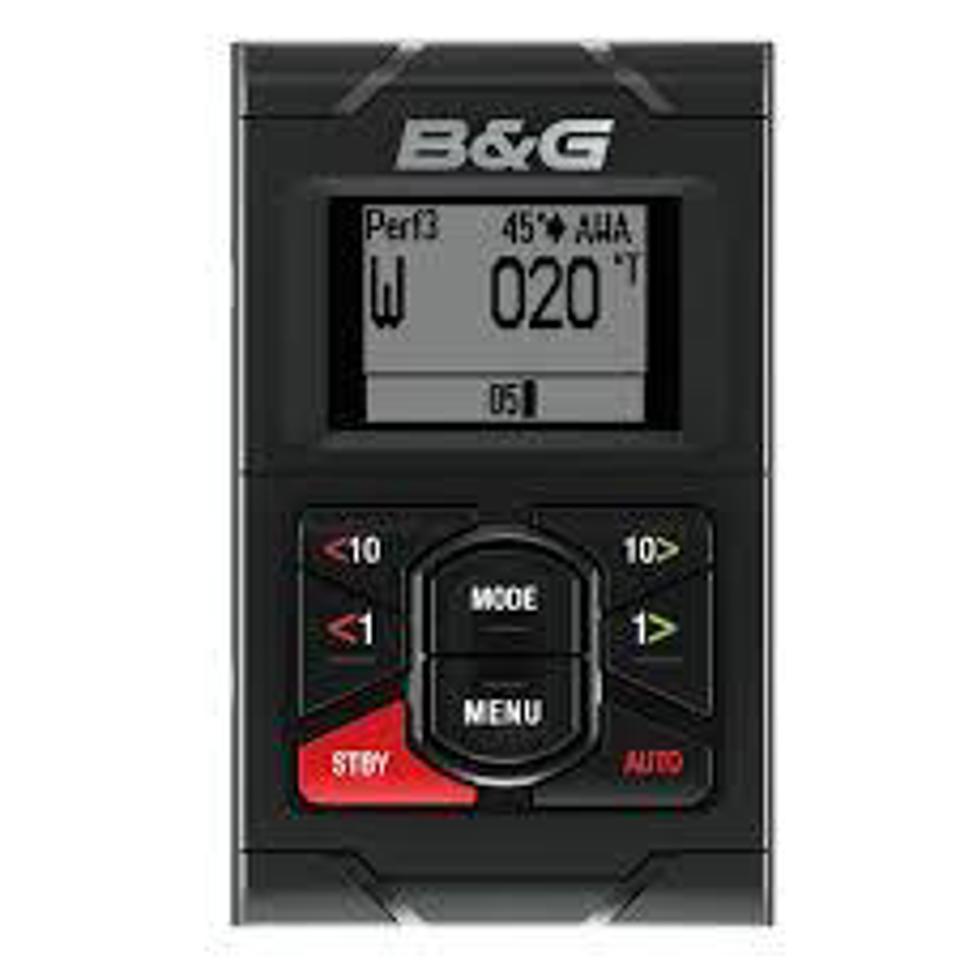

H5000 Pilot Controller

SKU: 000-11544-001

Provides secure autopilot control and setup from its dedicated keypad. As the primary Pilot controller, or as a second station to a Zeus chartplotter, the Pilot Controller provides assured control and feedback via its high-resolution display.


Product details

Enjoy straightforward and secure control and setup of B&G’s powerful H5000 Pilot from the dedicated keypad of this Pilot Controller unit. As the primary Pilot controller, or combined with a Zeus chartplotter, the H5000 Pilot Controller provides assured control and feedback via a high-resolution compact monochrome display. Waterproof to IPx7 and with a tough optically bonded display, this dedicated controller lets you manage everything to do with the Pilot whatever the conditions, from commissioning to control. It features the same mechanical design as the H5000 displays, for rugged durability and consistent aesthetics.


Key Features

  • Dedicated Pilot control: Developed to complement the H5000 Pilot Computer, this Controller manages every function of this powerful and trusted tool – from commissioning to control
  • Glass-bonded monochrome display: The bonded glass LCD display is tough, waterproof and condensation-resistant in the most testing environments with high-resolution monochrome screen, with wide viewing angle, for optimum readability and clear presentation of Pilot data in all light conditions.
  • Straightforward interface: The controller’s dedicated keypad and intuitive operation makes commissioning and control of the Pilot straightforward, flexible and convenient.
  • Waterproof to IPX7



What's in the box?

  • N2K-T-RD Network T-Connector



Specifications

Display
  • Backlight ColorWhite
  • Display Resolution128 x 64
  • Viewing Angles6 o'clock
Connectivity
  • NMEA 2000 Connectivity1x CAN Micro-C port, 3 LEN
Autopilot
  • Engine Drive systems integrationn/a
  • Steering ModesNon Follow Up (NFU), Auto, NoDrift, Wind, Nav
Electrical
  • Power Consumption max130mA (from CAN)
  • Power Consumption typical100mA (from CAN)
  • Supply Voltage12-16V via CAN
Environment
  • Operating Temperature Range10C to +55C (+32F to +131F)
  • Storage Temperature Range-30C to +70C (-22F to +158F)
  • WaterproofratingIPx7
Physical
  • Compass Safe0,3m (11,8")
  • Dimensions W x H x D70 x 114 x 41mm (2,76 x 4,49 x 1,61")
  • Mounting TypeFlush
  • Weight0,18kg (0,4 lbs)
Other
  • InterfaceKeypad
  • LanguagesEnglish, German, French, Spanish, Italian, Dutch, Swedish, Norwegian
  • Warranty Period2 years
