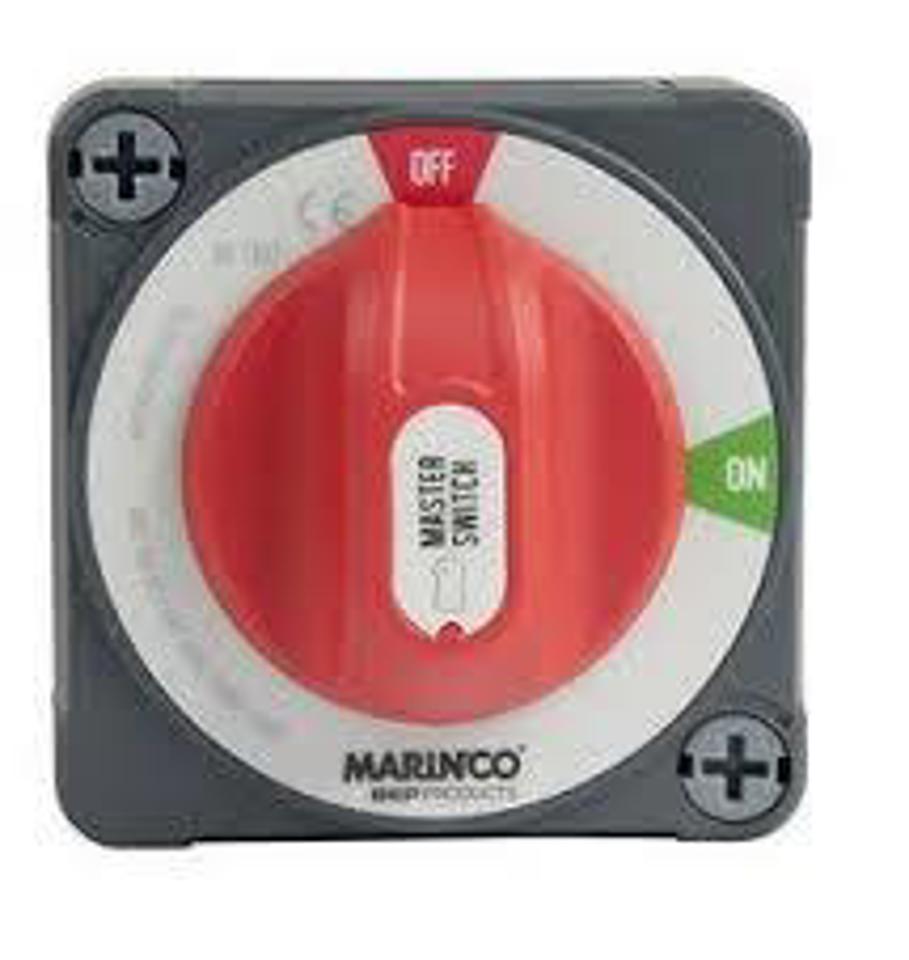

BEP Pro Installer 400A EZ-Mount Double-Pole Battery Switch (770-DP-EZ)
The BEP 770-DP-EZ is a heavy-duty 400A Double-Pole ON/OFF Marine Battery Disconnect Switch featuring BEP's patented EZ-Mount front-wiring architecture. Designed to dramatically simplify installation in tight engine rooms or behind bulkhead panels, the EZ-Mount system allows installers to wire all high-current DC cables directly from the front side of the switch base before snapping the control housing and knob into place.
Like the standard double-pole variant, the 770-DP-EZ simultaneously isolates both positive (+) and negative (-) conductors in a single switch movement. This complete circuit isolation prevents stray-current galvanic corrosion on aluminum or steel hulls and ensures maximum safety during routine vessel servicing. Built with high-temperature fiber-reinforced plastic, IP66 water ingress protection, and four heavy-duty M10 (3/8") tin-plated copper studs, it is ideal for modern 12V, 24V, 36V, and 48V DC marine electrical systems.
- Tested to UL1107 ignition protection, CE
- Tinned copper 10 mm (3/8 in) studs
- Stainless steel washers and nuts
- Fiber reinforced plastics
- 400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking (cable size to achieve ratings 120mm, 4/0, smaller cable size will reduce the Amp rating)
- Waterproof to IP67
- Same interconnection height as Pro Installer
- Removable knob allows isolation during servicing
- 3 removable side plates for protection
- Industry standard 3.85 x 3.85 inch footprint
- Surface mount only
- Each Pro Installer battery switch is fully tested for pressure sealing, rotation force and electrically load tested
