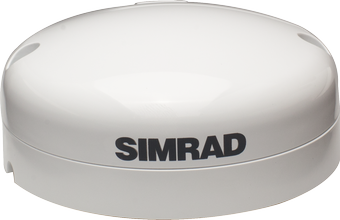

GS25 GPS Antenna 000-11043-001
GS25 Antenna with built in rate compass. 10 Hz position update rate. Build in rate compass is perfect for for providing heading data for Radar Chart Overlay and for orienting charts in Head Up Mode. Note: This heading sensor is not recommended for MARPA or Autopilot control! Please use the Precision 9 for this.
Key features of the GS25
- NMEA 2000 antenna module offers rugged and precise position, and heading sensor
- Spot-on, around-the-world accuracy -- supporting GPS and GLONASS, WASS/EGNOS/MSAS; Galileo-capable with future software update
- Excellent time-to-first-fix, with 10-hertz, multi-GNSS, high-speed updates – up to 10 times per second -- for smoother and more accurate location updates
- Integrated electronic rate stabilized compass to provide chart stabilization, accurate course over ground at low speed, and radar overlay
- Rugged design for all marine environments and fully waterproof
- Include spat/pole mount for easy installation and flexible boat location for optimal performance
- Independent source selection on any display
Note: Not suitable for MARPA or Steering of an Autopilot. Please use an Precision-9
Specifications
General
| Receiver |
Type L1, C/A code, 1.575 GHz Frequency/L2 C/A code, 1.602 GHz Frequency |
| Channels |
32 channels |
| Position Update Rate |
Up to 10 Hz (1,5,10) |
| Horizontal Accuracy |
3 m (9.8 ft) |
| Heading Accuracy |
+/- 3° |
| Rate of Turn |
+/- 3° |
| Pitch / Roll Accuracy |
@30 degrees 1 grade error |
| Cold Start |
50 sec |
| Start-Up Time |
3 sec |
| Satellite Reacquisition |
5 sec |
Environmental
| Operating Temperature |
-25° C to +60° C |
| Storage Temperature |
-40° C to +85° C |
| Splash Proof |
IPX7 |
| Humidity |
40° C, 93%RH, operating |
Electrical
| Input Voltage |
9 V DC - 18 V DC |
| Reverse Polarity Protection |
Yes |
| Power Consumption |
< than 2w |
| Current Consumption |
< 100 mA @ 12 V DC |
| Dimensions |
90 mm (diam) x 38mm (height) 3.54” (diam) x 1.50” (height) |
| Weight |
0.14 Kg (0.3 lbs) aprox |
| Power/Data Cable |
NMEA 2000 thru NMEA 2000 network |
| Antenna Connector |
NMEA 2000 Micro C: Lowrance attached cable with Micro-C connector |
| Mounting |
Flush mount / Standard Pole Mount |
Communications
| Data I/O Protocol |
NMEA 2000 |
NMEA 2000 PGNs
| PGN Number |
PGN Title |
| 126992 |
System Time |
| 129025 |
Position, Rapid Update |
| 129026 |
COG & SOG RU |
| 129029 |
Position Data |
| 129539 |
GNS DOP |
| 129540 |
GNS Satellites in view |
| 127258 |
Magnetic Variation |
| 127250 |
Compass Heading (Vessel Heading) |
| 127251 |
Rate of Turn |
| 127257 |
Attitude |
Compliance Statements Lowrance Point-1, Simrad GS25 and B&G ZG100 Meet the technical standards in accordance with Part 15.103 of the FCC Rules. Comply with CE under R&TTE directive 1999/5/EC Comply with the requirements of level 2 devices of the Radio-communications (Electromagnetic Compatibility) standard 2008.The relevant Declaration of Conformity is available in the following website under model documentation section:
